Testomat 2000® Fe

Product number: 100162

€5,889.30*

Please log in to receive your conditions.

Available in 140 days, delivery time 1-2 days

Language in the display
Performance/execution

Product number: 100162
Measurement parameters: Iron-II and Iron III
Measuring range: 0.00-0.65 mg/l and 0.7-1.0 mg/l
Application: Deironing plants
Menu navigation: German, English, French, Italian, Polish, Dutch
Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Order the appropriate original reagent for your TESTOMAT® device:
Testomat 2000® Reagent Fe 2005A 500 ml Order · Subscription
Testomat 2000® Reagent Fe 2005B 500 ml Order · Subscription
Determine the appropriate reagent here: Reagent consumption calculator

Leasing Example

114,47 € non-binding
Monthly Rate (60 Rates)

Further rate options by choosing the payment method Leasing

Product information "Testomat 2000® Fe"

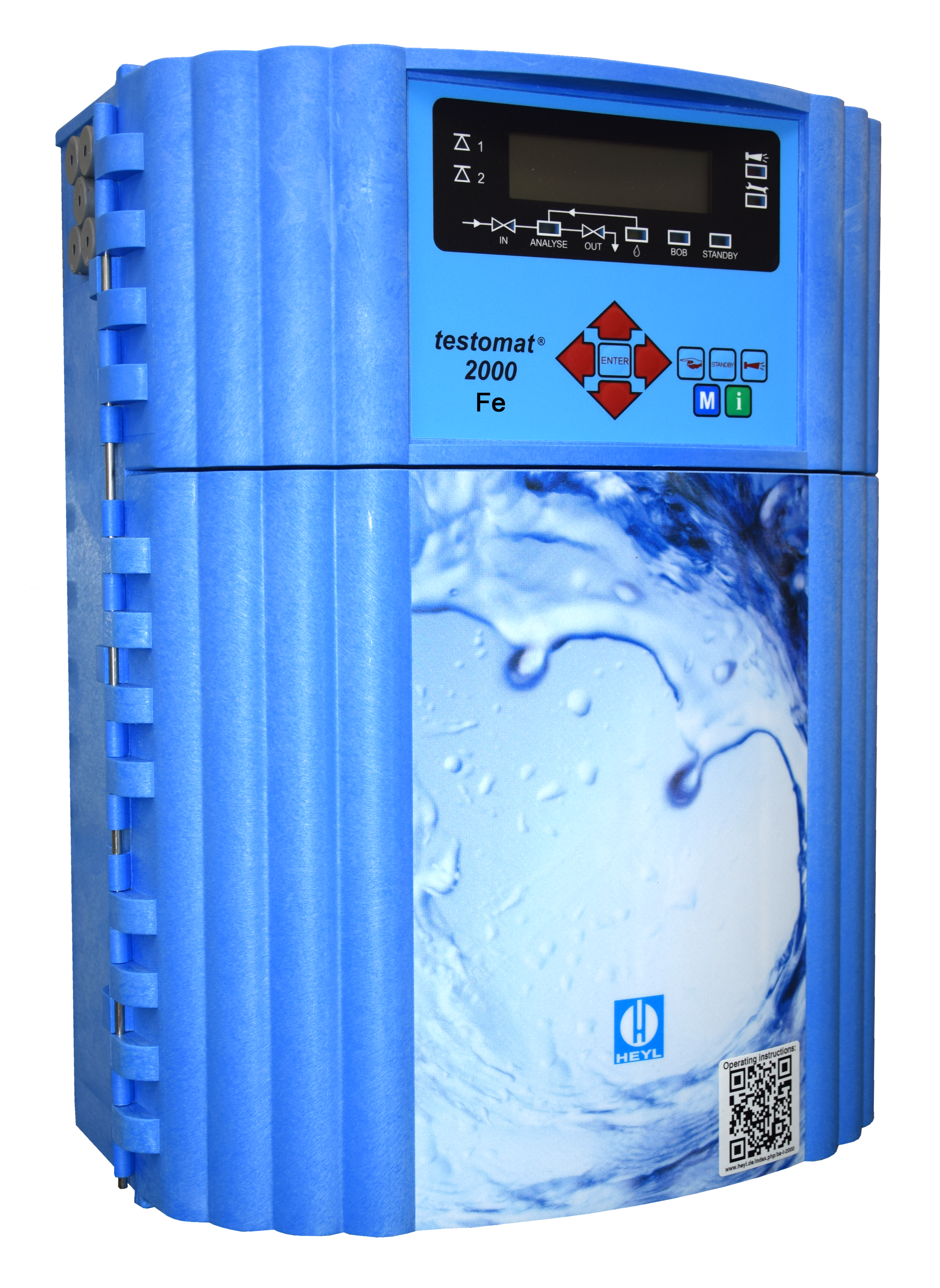

The Testomat 2000® Fe process photometer is an online analyzer for monitoring the dissolved iron (II) + (III) content in the range of 0 to 1.0 mg / l (ppm) using the photometric analysis principle.

Performance profile:
  • Analysis via automatic dosing of two reagents
  • The analysis result is displayed after a reaction time of approx. 7 min. (Measuring time without rinsing time)
  • 2 independently programmable limit contacts for monitoring and control tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation
    • (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • Programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request
Technical specifications
/tr>
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10–40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 10,5 kg
Menu Language: German, English, French, Italian, Polish, Dutch
Measuring range: Iron Fe (II), Fe (III): 0,00 – 1,00 mg/l (Resolution): 0,00 – 0,65 mg/l (0,01) | 0,7 – 1,00 mg/l (0,1)

We recommend our reagents, as well as the following accessories

Testomat 2000® Reagent Fe 2005A 500 ml
Product number: 156250
500 ml-bottle of original Testomat 2000® Reagent Fe 2005A Measuring range: Iron-II, iron-III: 0.00 - 1.00 mg/l

Content: 0.5 Liter (€497.00* / 1 Liter)

€248.50*
Testomat 2000® Reagent Fe 2005B 500 ml
Product number: 156251
500 ml-bottle of original Testomat 2000® Reagent Fe 2005B Measuring range: Iron-II, iron-III: 0.00 - 1.00 mg/l

Content: 0.5 Liter (€532.80* / 1 Liter)

€266.40*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€103.30*
outlet hopper cpl. T2000/ECO
Product number: 40315

€68.20*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€199.00*
