Testomat 2000® PO4

Product number: 100561

Product information "Testomat 2000® PO4"

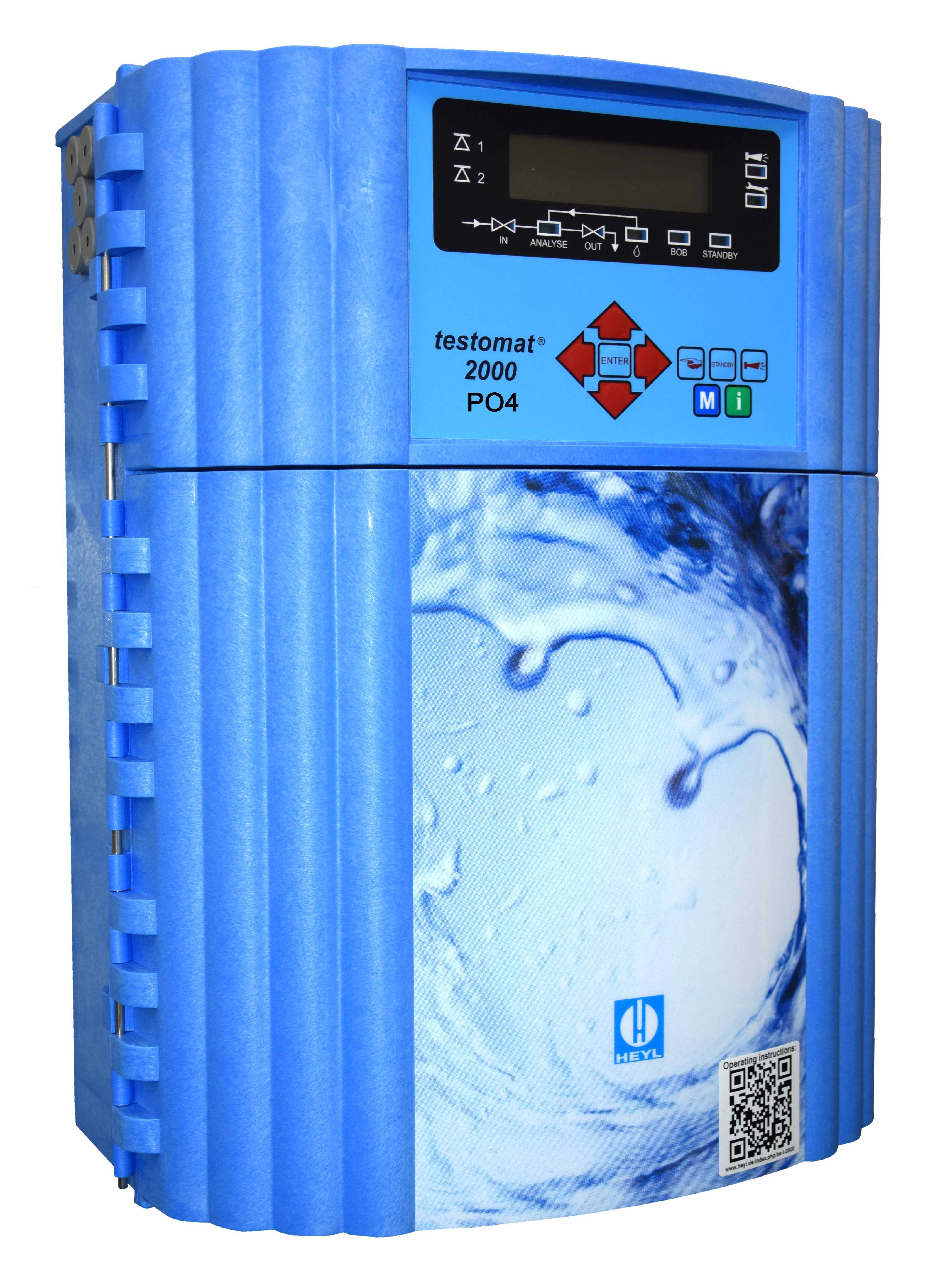

The Testomat 2000® PO4 process photometer is an online analyzer for monitoring the content of ortho – phosphate in the range 0 to 10.0 mg/l (ppm) by using the photometric analysis principle.

Performance profile:
  • Analysis via automatic dosing of two reagents
  • The analysis result is displayed after a reaction time of approx. 10 min. (Measuring time without rinsing time)
  • Menu-driven operation and programming via plain text display
  • Selection of unit in ppm or mg/l
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation (Interval pause adjustable from 0–255 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • Programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request

Dimensions

Height 29 cm
Length 56 cm
Width 44 cm

Weight

Weight 10 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 5–30 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 9,5 kg
Menu Language: German, English, French, Dutch, Spanish
Measuring range: 0.0 – 10.0 mg/l Resolution: 0.1 mg/l in the range of 0.0 – 7 mg/l 0.25 mg/l in the range of 7 – 10 mg/l Limit of detection: 0,1 or 0,25 mg/l depending on range Accuracy: < 10% at end of measuring range

We recommend our reagents, bulk containers, as well as the following accessories

Reagent set PO4 2100 A + B 500 ml
Product number: 156264
500 ml-bottles of original Reagent set PO4 2100 A + B can be used immediately in the Testomat 2000®® PO4 without cumbersome filling and refilling.   Measuring range: Phosphate PO4: 0.0 - 10.0 mg/l

€226.40*
Testomat 2000® Reagent PO4 2100 B 5 L canister
Product number: 156282
Bulk container - 5L canisterTo use the canister, the suction lance (art. no.: 40536) is required.

€994.10*
Testomat 2000® Reagent PO4 2100 A 20 L canister
Product number: 156281
Bulk container - 20 litre canisterTo use the canister, the suction lance (art. no.: 40535) is required.

€1,556.10*
Suction lance 20/61
Product number: 40535
for bulk container reagent A PO4 (20 liter container)

€584.20*
Suction lance 5/45
Product number: 40536
for large containers of reagent B PO4 (5 liter containers)

€584.20*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*
outlet hopper cpl. T2000/ECO
Product number: 40315

€92.60*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€257.10*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€170.80*
Service Set Testomat 2000®/Testoma®t ECO/Titromat®/Testomat® EVO TH
Product number: 270352
Service Set Testomat® Testomat® EVO TH / Testomat ECO®/Titromat®   Content: 1 x gasket kit T2000 2 x sight glass windows 30x3 1 x flow regulator core, complete 3 x cylindrical protection plug with shoulder 5.3dx5 PE 1 x set of valves for the injection pump 1 x filter screen for feed 19.5dx25 3 x different pipes 3 x cleaning brush

€235.00*
Repair and maintenance case T2000/EVO TH/ECO
Product number: 270337
Repair and maintenance case T2000/EVO TH/ECO for professionals Content: 15 x plugs for measuring chamber5 x filter screens for feed 19.5dx252 x springs for feed5 x flow regulator cores, complete10 x O-rings 10.82x1.7810 x O-rings 20x25 x O-rings 4.47x1.785 x O-rings 18x2 EPDM20 x flat gaskets 24x2 EPDM 606 x fuses, G-, 5x20 mm, M4A6 x (solderable) fuses TR5, T 0.2A6 x (solderable) fuses TR5, T 0.315A6 x (solderable) fuses TR5, T 1.0A6 x (solderable) fuses TR5, T 0.1A6 x (solderable) fuses TR5, T 0.08A6 x (solderable) fuses TR5, T0.16 A1 x set of brushes15 x cylindrical protection plugs with shoulders 5.3dx5 natural PE5 x O-rings 4,47x1,785 x O-rings 18x2 EPDM20 x flat seals 24 x 21 x Assortment box Testomat® />10 x inspection glasses, 30x31 x suction hose complete1x pressure hose, complete2 x magnetic stirring cores3 x screw caps with insert1 x table of contents2 x PE D=6, d=4x105 pipes2 x PE D=6, d=4x115 pipes2 x PE D=10, d=8x98 pipes2 x p

€831.00*
maintenance case "professional" for Testomat 2000®/ Testomat ECO®
Product number: 270338
 content:6x #011210 Protection plug to measuring chamber T2000 / ECO4x #011216 O-Ring 20x2, for inlet connection2x #011217 filter strainer for inlet 19,5dx252x #011218 spring for inlet2x #011225 Flow regulator valve complete4x #011249 O-Ring 10,82 x 1,782x #031582 fuse GS-M 5X20 E 4A2x #031584 fuse T 0.2 A, TR 5  RM  5,082x #031585 fuse T 0.315 A, TR 5  RM  5,082x #031592 fuse T 1.0 A, TR 5  RM  5,082x #031595 fuse T 0.1 A, TR 5  RM  5,082x #031596 fuse T 0.08 A, TR 5  RM  5,082x #031622 fuse T 0.16 A, TR 5  RM  5,081x #032287 cleaning brush set2x #033253 screw M3x40, A2, DIN 9652x #033775 O-Ring 4,47 x 1,782x #033776 O-Ring 18x2 EPDM4x #033777 flat gasket 24x2 EPDM 602x #040011 suction hose, cpl.2x #040016 pressure hose, cpl.2x #040040 valve set for jet pump2x #040050 magnetic stirring core1x #040121 inlet connector3x #040131 screw cap with insert T20002x #040141 tube,PE,D=6 d=4x1052x #040142 tube, PE, D=6 d=4x1151x #040153 screw connector G1/4"-62x #040154 plug connector 6-61x #040157 Angled plug-in connector G1/8“-64x #040170 sight glass 30x32x #04022x #040240 pipe, PE, D=10 d=8x98

€802.80*
Service-Kit controller/filter receiver
Product number: 891307
Content: 1 x 40121 inlet connector1 x 40122 outlet connector,PVC1 x 11225 Flow regulator core (1-8 bar)2 x 11216 O-Ring 20x2 (NBR) 1 x 11217 filter strainer for feed 19,5dx251 x 33777 flat gasket 24x2 EPDM 601 x 40153 screw connector G1/4"-61 x 40129 controller plug T2000,cpl.

€177.30*
Service-kit DosiClip
Product number: 891305
Content: 1 x #40011 suction hose, cpl.1 x #40016 pressure hose, cpl.1 x #40040 valve set for jet pump

€239.90*
Service kit for measuring chamber holder + measuring chamber
Product number: 891304
Content: 2 x 40170 sight glass 30x33 x 33777 flat gasket 24x2 EPDM 602 x 33776 O-Ring 18x2 EPDM3 x 11210 Protection plug to measuring chamber T2000 / ECO / EVO TH / EVO TH CAL1 x 40050 Magnetic stirring core

€102.20*
Service Set Testomat 2000® Polymer
Product number: 270353
This special service set is designed for the Testomat 2000® Polymer. Included are the standard spare parts for the Testomat 2000® together with spare parts for the PeriClip® pump, i.e. the pump head.   The service set includes the following spare parts: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for m. chamber 2 x pump head 1 filter screen for intake 3 different pipes 1 cleaning brush set 2 x tube connection 2 x seal for tube connection 2 x screw cap with insert

€532.00*
