€8,047.80*
Please log in to receive your conditions.
Available in 70 days, delivery time 1-2 days
Product number:
100563
GTIN:
4068823012545
Measurement parameters:
Phosphate PO4
Measuring range:
0.0 – 10.0 mg/l Resolution: 0.1 mg/l in the range of 0.0 – 7 mg/l 0.25 mg/l in the range of 7 – 10 mg/l Limit of detection: 0,1 or 0,25 mg/l depending on range Accuracy: < 10% at end of measuring range
Application:
treated wastewater (sewage treatment plants) | online – environmental analysis | monitoring of conditioning agents in cooling and heating circuits
Menu navigation:
German, English, French, Dutch, Spanish
Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Leasing Example
168,12 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing

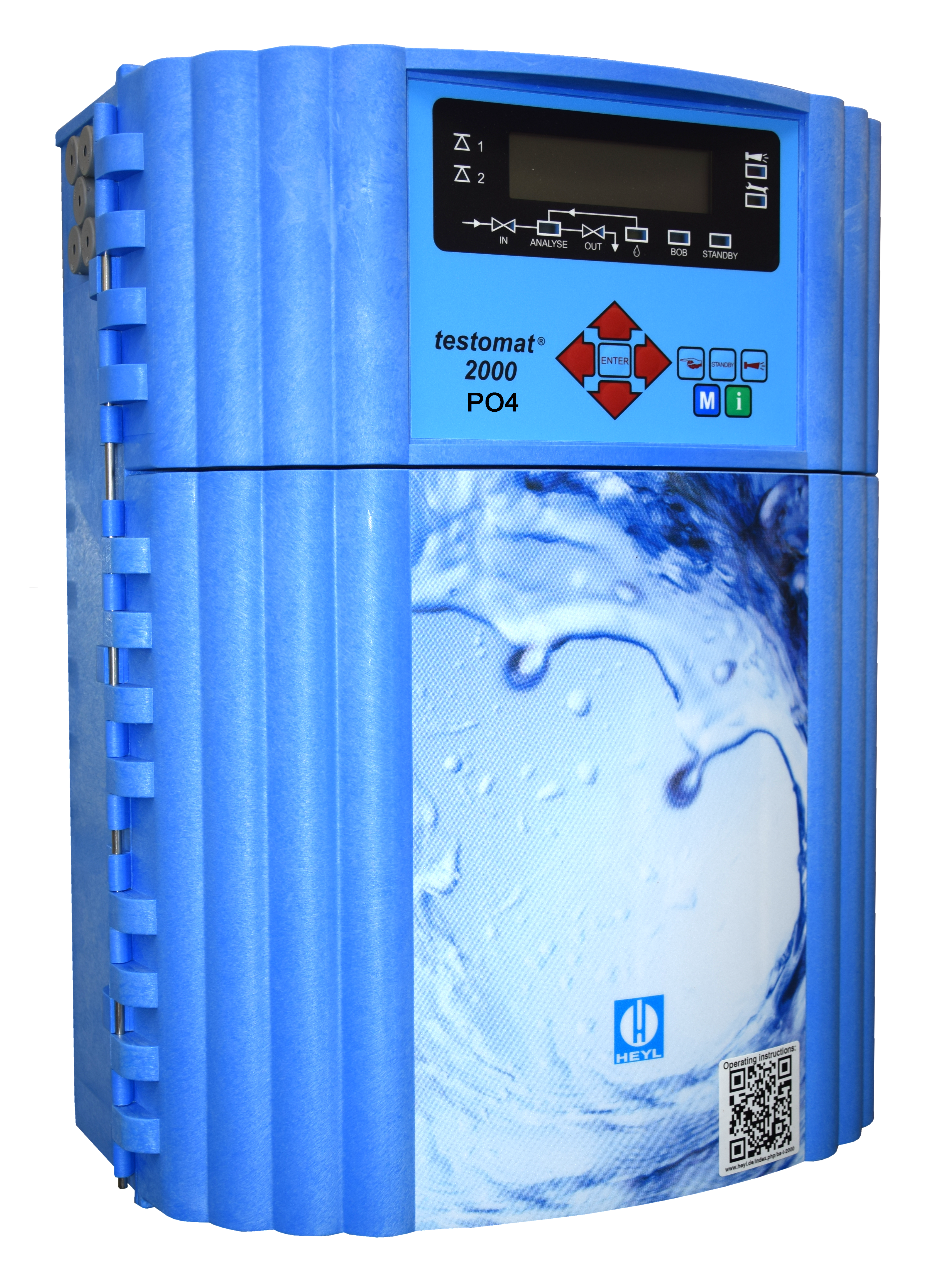

Product information "Testomat 2000® PO4"
The Testomat 2000® PO4 process photometer is an online analyzer for monitoring the content of ortho – phosphate in the range 0 to 10.0 mg/l (ppm) by using the photometric analysis principle.
Performance profile:
- Analysis via automatic dosing of two reagents
- The analysis result is displayed after a reaction time of approx. 10 min. (Measuring time without rinsing time)
- Menu-driven operation and programming via plain text display
- Selection of unit in ppm or mg/l
- High-precision titration using a piston dosing pump
- Analysis initiation:
- Automatic interval operation (Interval pause adjustable from 0–255 min)
- External control
- Dynamic (fatigue-dependent interval operation)
- Quantity dependent via contact water meter
- Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
- Monitoring of two measuring points (Switching by external solenoid valves)
- Programmable service address
- Internal error documentation
- Programmable maintenance interval for maintenance request
Other attributes
Customs tariff number | 90278990 |
---|
Technical specifications
Power consumption: | max. 30 VA |
Protection class: | I |
Protection: | IP 65 |
Ambient temperature: | 10–45 °C |
Water temperature: | 5–30 °C |
Dimensions (W x H x D): | 380 x 480 x 280 mm |
Operating pressure: | 0,3–8 bar |
Weight: | approx. 9,5 kg |
Menu Language: | German, English, French, Dutch, Spanish |
Measuring range: | 0.0 – 10.0 mg/l Resolution: 0.1 mg/l in the range of 0.0 – 7 mg/l 0.25 mg/l in the range of 7 – 10 mg/l Limit of detection: 0,1 or 0,25 mg/l depending on range Accuracy: < 10% at end of measuring range |
