Testomat 2000 THCL®
€11,685.20*
Please log in to receive your conditions.
Available in 40 days, delivery time 1-2 days
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Leasing Example
241,77 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing
Alternatives to this product
The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water and the Testomat® LAB CL is a robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).
In view of the fact that the Testomat® LAB TH and Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price.
The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by Testomat® LAB TH and Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief tech ...
- Zusätzlicher Indikatortyp TH2050 verfügbar
- CL-Messbereich 0 – 5 mg/l (T2000 CLT hat nur 0 – 2,5 mg/l)
- SD-Card zur Daten& Messwertaufzeichnung ist bauseitiger Standard
- Kleinste und preiswerteste Bauform der IST-Wert-Analysengeräte zur Einbindung in Multiparameter-Messsysteme
- Grenzwertrelais
- Überwachung von 2 Messtellen
- Keine Zertifizierung für 72h BOB (WHÜ)
- IST-Wert Bestimmung
- Grenzwertrelais
(nur umsetzbar mittels NeoTecMaster®) - Analyse für Gesamtchlor
- Displayanzeige für Messwerte
- Schutzhaube für IP 65
- 4-20mA Messwertübertragung
- Externe Analysenauslösung (START/STOP-Relais)
Product information "Testomat 2000 THCL®"
Online Monitoring of Total Chlorine and Water Hardness with the T 2000 THCL

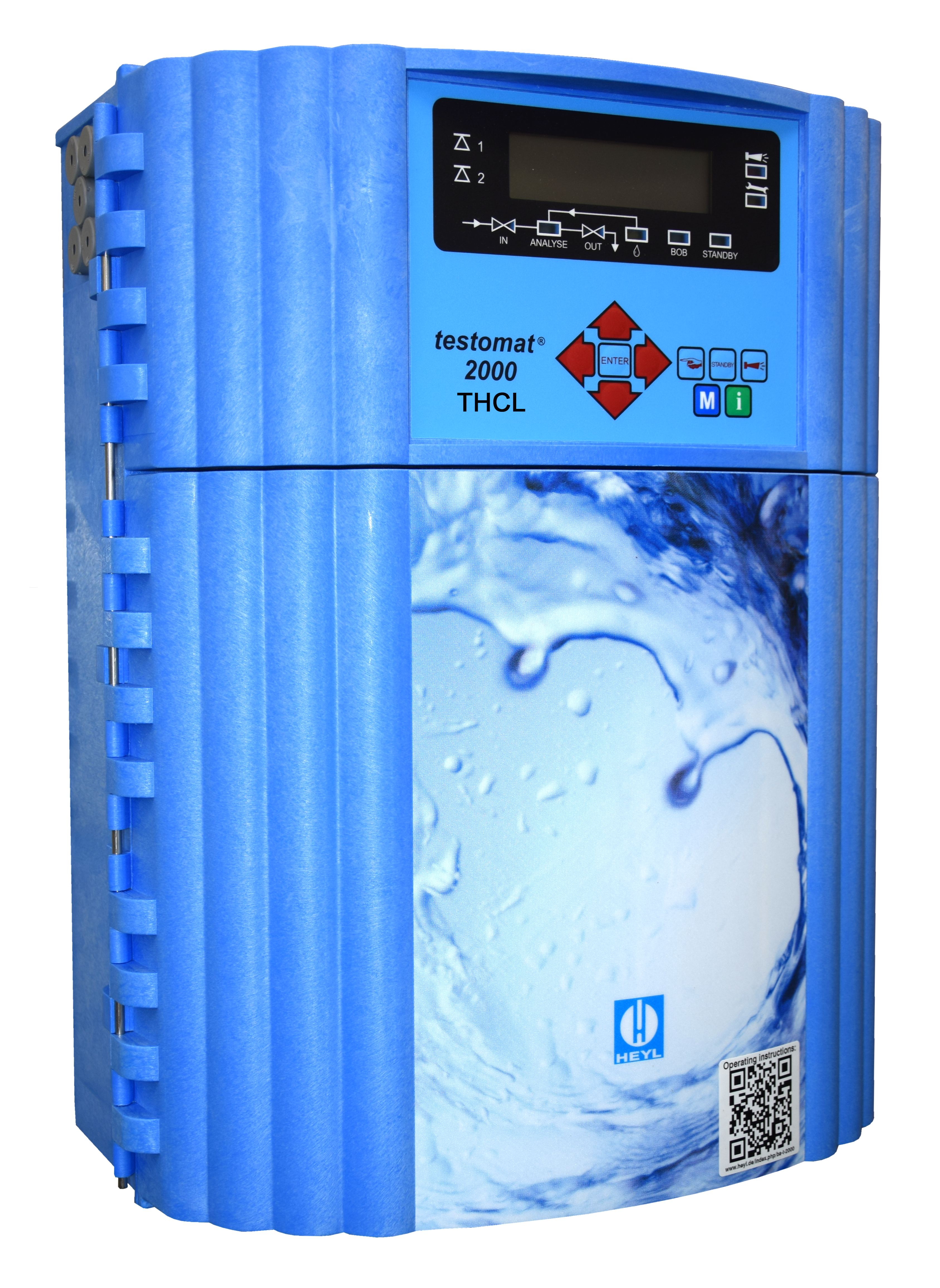

Testomat 2000 THCL – Online analyzer by Heyl with photometric chlorine measurement and automatic titration
The Testomat 2000 THCL is part of the T 2000 device family from Heyl, designed for simultaneous online monitoring of total chlorine content and water hardness. Using the photometric DPD method, it reliably measures total chlorine in the range of 0–2.5 mg/l (ppm), while fully automatic titration determines water hardness from 0.25 to 2.50 °dH.
The device combines photometric total chlorine measurement with fully automatic water hardness titration in a 230 V system. Integrated limit relays allow direct implementation of alarm and control functions, while optional interfaces enable extended external data recording via SD card data loggers or analog current interfaces (e.g., 0/4–20 mA).
Features of the Testomat 2000 THCL
It measures total chlorine using the proven DPD method and simultaneously determines water hardness via automatic titration. Two independently programmable limit contacts allow direct monitoring and control of external processes, while an optional interface card stores data for long-term documentation or process monitoring.
Applications of the Testomat 2000 THCL
- Monitoring of reverse osmosis systems
- Protection of reverse osmosis membranes from scaling due to hardness and damage from excessive chlorine
- Monitoring of softening and chlorination units in drinking water systems
Performance Profile of the Testomat 2000 THCL
- Two independently programmable limit contacts for monitoring and control; analysis results can be recorded via optional interface card (current interface SK910) for a point or strip chart recorder (0/4–20 mA) or SD-Card data logger Testomat 2000®
- Menu-guided operation and programming via plain text display
- High measurement accuracy through precise piston dosing pump
- Analysis triggering:
- Automatic interval operation (interval pause adjustable from 0–99 minutes)
- External control
- Volume-dependent via contact water meter
- Two independent limit values with hysteresis (1, 2, or 3 failed analyses) and adjustable switching functions
- Monitoring of two measurement points (switching via external solenoid valves)
- Internal error documentation
- Programmable service address
- Indicator quantities: 100 and 500 ml bottles
- Programmable maintenance interval for maintenance requests
Weight
| Weight | 10 kg |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90278990 |
| Power consumption: | max. 30 VA |
| Protection class: | I |
| Protection: | IP 65 |
| Ambient temperature: | 10–45 °C |
| Water temperature: | 10–40 °C |
| Dimensions (W x H x D): | 380 x 480 x 280 mm |
| Operating pressure: | 0,3–8 bar |
| Weight: | approx. 10,5 kg |
| Menu Language: | German, English, French |
| Measuring range: | Total chlorine: 0.00 – 0.99 ppm (resolution: 0.01 ppm) and 1.0 – 2.5 ppm (resolution: 0.1 ppm) | Water hardness: 4.47 – 44.7 ppm (resolution: 0.05 ppm)
|
