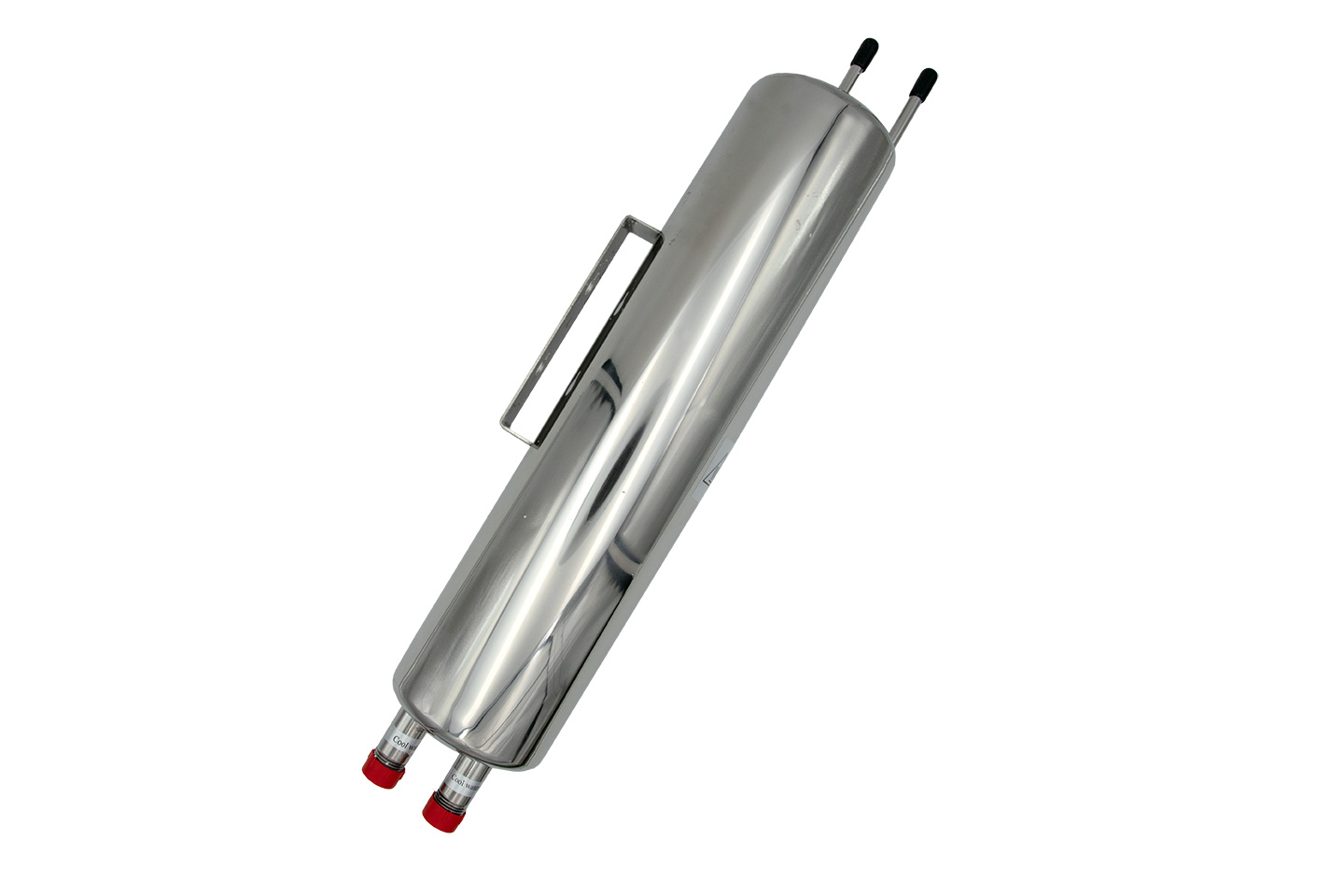

Cooler consists of Titanium steel 1.4571 for automatic sampling to 120°C hot water.
Max.water pressure/hot water: 16 bar
Max.water pressure/cold water: 8 bar
Connections:
Cold water inlet: ½
Cold water outlet (canal): ½
Hot water (in- and outlet): 8 mm
Dimensions: 546 x 128 mm
You can find a detailed description of the cooler in the technical data sheet for download on this page.
Cooler made of titanium stainless steel 1.4571 for the automatic extraction of water samples up to 200°C hot water.
Technical data:Max. hot water pressure: 40 barMax. Cold water pressure: 8 barMax. Max. hot water temperature: 0-200°C
Connections:Cooling water (inlet and outlet): ½ ”Hot water (inlet and outlet): 8 mm
Dimensions:546 x 128 mm
Weight:2.3 kg
Length of the cooling coil:5.1 metri
Material:Titanium stainless steel AISI316Ti4, EN 1.4571(Wall bracket: AISI316L, EN 1.4404)
Performance (example for analyzers):< 40°C with cooling water at a temperature of <25°C at a water flow of the sample water of approx. 23 L/h
Classification of the liquids: Class 2 - non-hazardous liquids
Classification of the coolant Dir 2014/68 UE PED: Class A

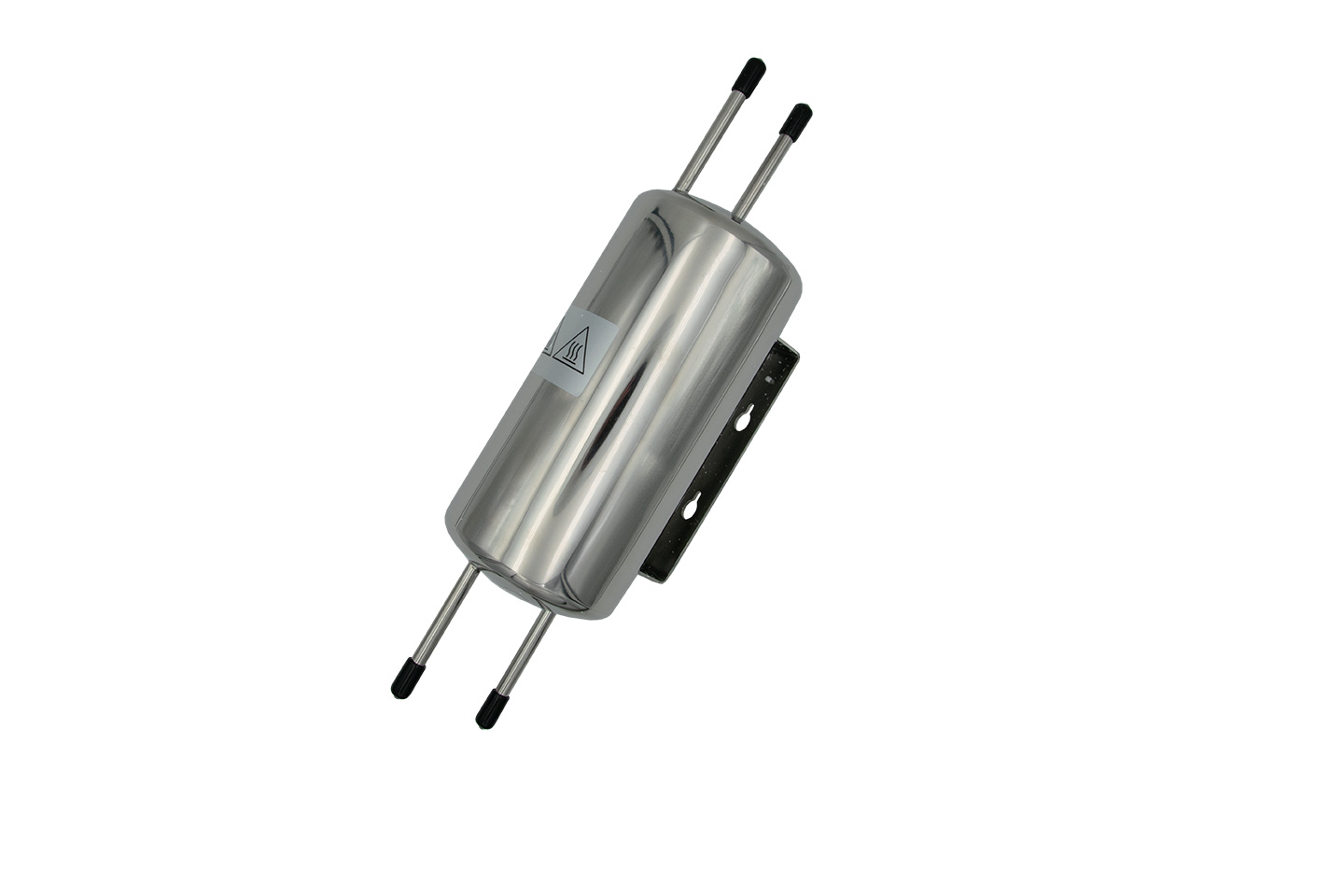

Cooler consists of Titanium steel 1.4571 for automatic sampling to 80°C hot water.
Max.water pressure/hot water: 16 bar
Max.water pressure/cold water: 8 bar
Connections:
Cold water inlet: ½
Cold water outlet (canal): ½
Hot water (in- and outlet): 8 mm
Dimensions: 598 x 335 mm
You can find a detailed description of the cooler in the technical data sheet for download on this page.

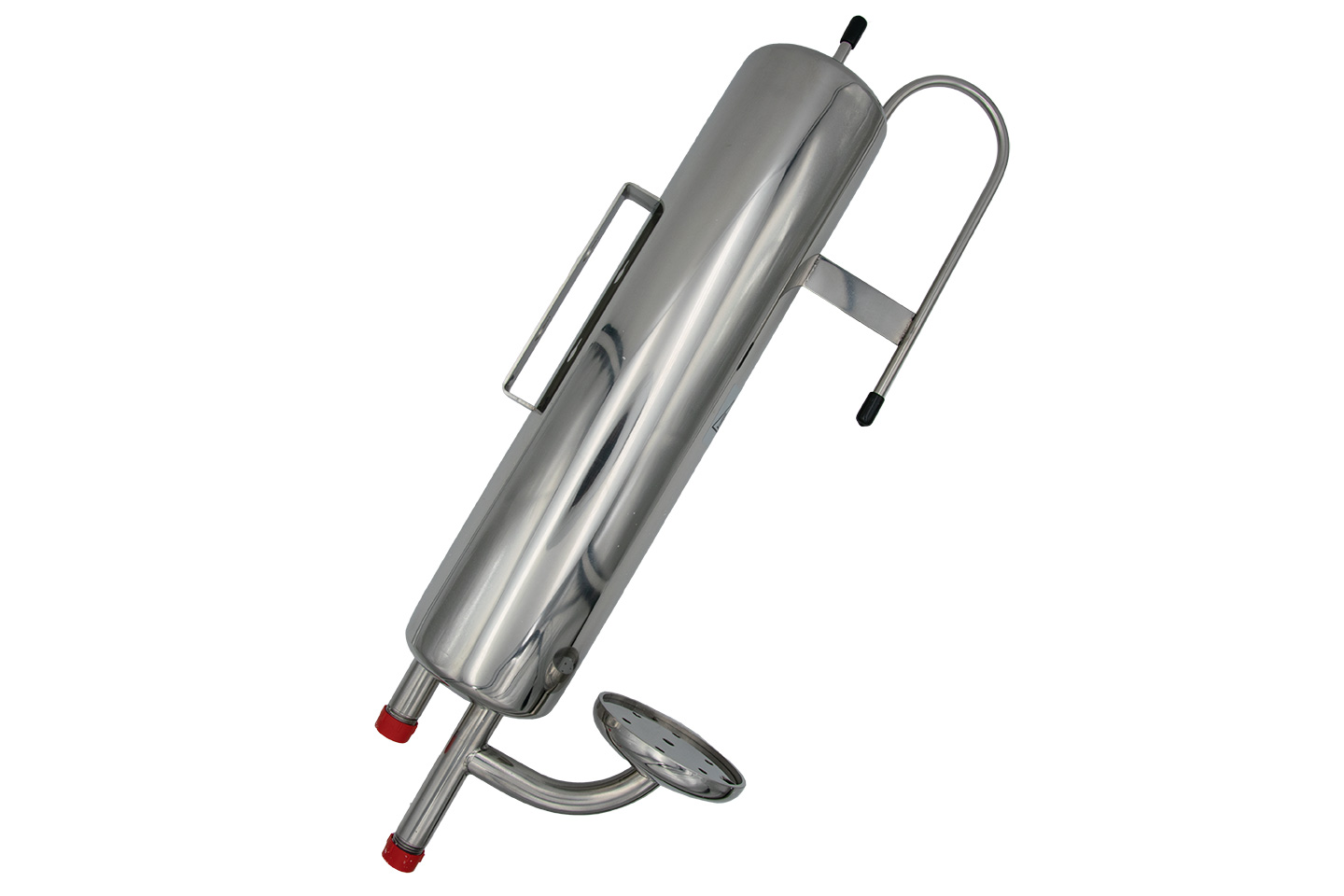

Cooler consists of Titanium steel 1.4571 for manual sampling to 120°C hot water.
Max.water pressure/hot water: 16 bar
Max.water pressure/cold water: 8 bar
Connections:
Cold water inlet: ½
Cold water outlet (canal): ½
Hot water (in- and outlet): 8 mm
Dimensions: 598 x 335 mm
You can find a detailed description of the cooler in the technical data sheet for download on this page.

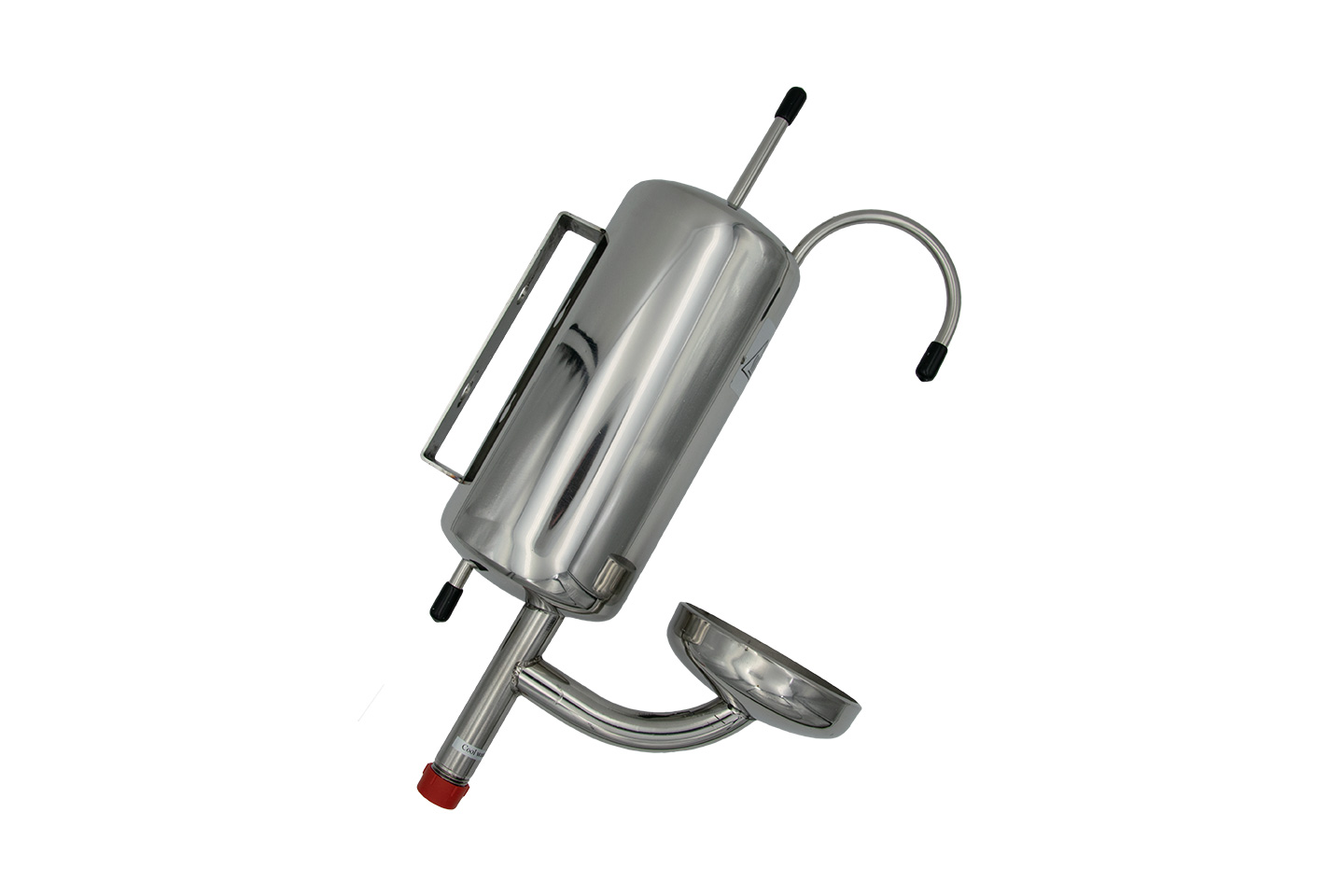

Cooler consists of Titanium steel 1.4571 for for manual sampling to 80°C hot water.
Max.water pressure/hot water: 16 bar
Max.water pressure/cold water: 8 bar
Connections:
Cold water inlet: 8 mm
Cold water outlet: ½
Hot water (in- and outlet): 8 mm
Dimensions: 413 x 335 mm
You can find a detailed description of the cooler in the technical data sheet for download on this page.
