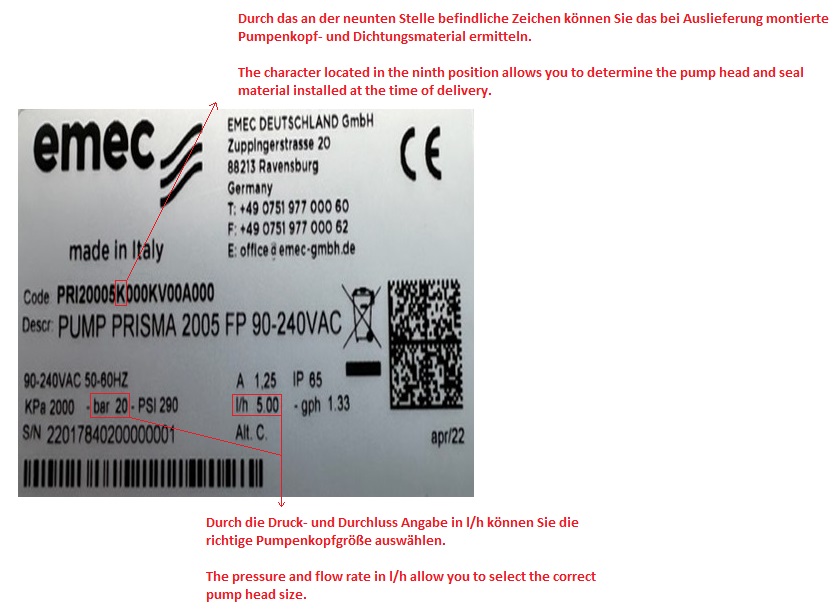

emec PRISMA Service Set L, nameplate view, shows pressure and flow values
Product information (Quickview)
Dimensions
Width 30 cm
Height 5 cm
Length 25 cm
Weight
Weight 0,5 kg
Additional properties
Country of origin IT
Customs tariff number 84139100

emec PRISMA service set L - stainless steel pump head, Viton seal and PTFE membrane

Article number: 896319

Price on request



Selection service set (pump head model / size)
Inquire now
Payment
Delivery & Shipping
Consultation
Quick info
Payment methods
Request individual offer (from 5 pcs.)

For larger order quantities, we will be happy to prepare an individual offer for you.

Delivery & Shipping
  • Standard shipping: 3–5 business days within Germany
  • Express shipping available on request
  • International delivery to EU and Switzerland
  • No shipment of Heyl products to Spain, France and Portugal
  • Dangerous goods shipping according to ADR regulations
  • 3% online discount on HEYL, HORIBA, JUMO and MILWAUKEE products
Personal consultation

Our experts will be happy to advise you on water treatment, measurement technology and sterile processing.

+49 (0) 5121 7609-99
vertrieb@heylneomeris.de
Mon–Thu 8:00–17:00, Fri 8:00–16:00

Technical consulting for industry, laboratory and building technology — your specialist for water analysis and process water treatment.

Contact form
Quick info
Product information (Quickview)
Dimensions
Width 30 cm
Height 5 cm
Length 25 cm
Weight
Weight 0,5 kg
Additional properties
Country of origin IT
Customs tariff number 84139100

Product information "emec PRISMA service set L - stainless steel pump head, Viton seal and PTFE membrane"

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.

Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.

The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows.

1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)
(see example picture of type plate in the article)

Version I
  • 20 bar / 1 litre per hour
Version L
  • 16 bar / 7.5 litres per hour
  • 20 bar / 5 litres per hour
  • 25 bar / 2 litres per hour
Version M
  • 10 bar / 13 litres per hour
Version N
  • 2 bar / 80 litres per hour
  • 3 bar / 70 litres per hour
  • 4 bar / 50 litres per hour
  • 5 bar / 28 litres per hour
  • 7 bar / 20 litres per hour
2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material.
(see example picture of the type plate in the article)

The most common types are listed below and these are shown via our selection matrix:
K = PVDF pump head with Viton seal
D = PP pump head with EPDM seal
A = PMMA pumphead with Viton seal
R = PMMA pumphead with EPDM seal
Z = Stainless steel with Viton seal
£ = Stainless steel pump head with EPDM gasket

(other types are available on request)

Service set contents:
PVDF pump head with Viton seal:
1x pump head (dosing head) incl. seal
1x PTFE diaphragm
- Stainless steel screws and caps (only for L and M service set)

PP pump head with EPDM seal:
1x pump head (dosing head) incl. seal
 1x PTFE diaphragm
 - Stainless steel screws and caps (only for L and M service set)

PMMA pump head with Viton or EPDM seal:
1x pump head (dosing head) incl. seal
1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set)

*Stainless steel pump head with Viton or EPDM seal:
1x seal without pump head (no change required as stainless steel)
1x PTFE diaphragm

frequently asked questions

Yes, provided the type plate on your PRISMA pump specifies the correct pump head size, ‘I’.

The kit includes a pump head with a seal and a suitable diaphragm for the pump.

If the pump is dispensing inaccurately, has developed a leak, or the diaphragm is worn after prolonged use.

Yes, replacement is simple and can be carried out by yourself.

The materials are robust and withstand even aggressive liquids well during operation.

You can find the correct size on the type plate of your PRISMA pump. The pressure and flow rate are listed there.

Not usually. The set contains the most important wear parts for the pump head.
