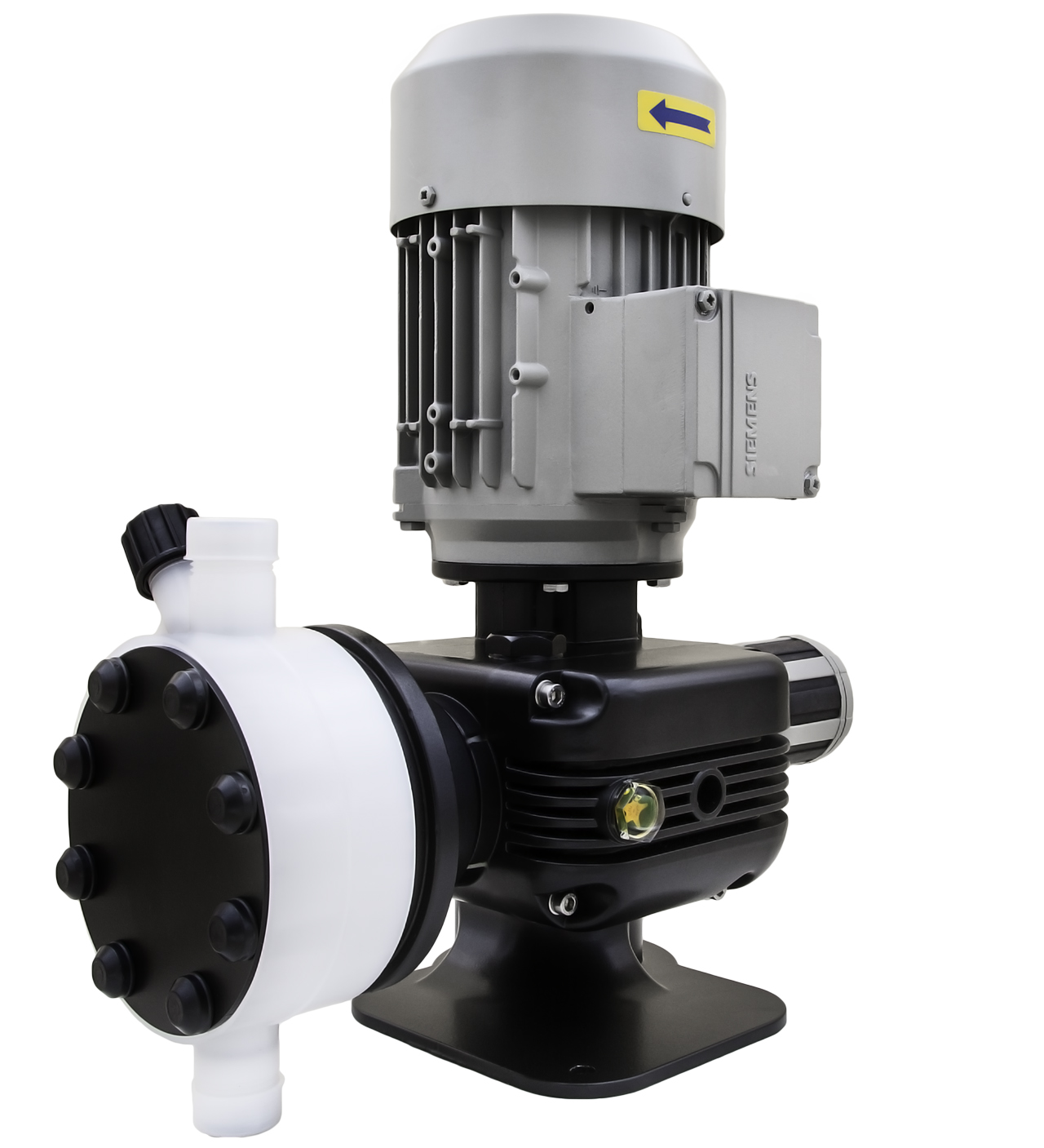

emec PRIUS D 50 Hz electric motor-driven dosing pump
€1,959.00*
Please log in to receive your conditions.
Available in 42 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "emec PRIUS D 50 Hz electric motor-driven dosing pump"
The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).
Outputs:
- 1000 l/h
- 100 bar
Power supply:
- 380 VAC
- 220 VAC
- 115 VAC
Vent pipe:
- Manual
- Automatic
Features
- Horizontal mounting
- Aluminium housing
- Spring return mechanism
- Double ball valves (if available)
- Mechanical stroke adjustment
- Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
- Hydraulic parts available in various sizes and materials
- Tropicalised motor
Installation:
- Installation kit A included
- Installation kit B and C sold separately
- The pump with AISI316L pump body does not include installation accessories
Frequently Asked Questions
The pump is suitable for water treatment, chemical dosing and industrial processes requiring precise liquid addition.
The flow rate can be adjusted continuously from 0 to 100% using a rotary knob.
Many chemicals, acids or alkalis – depending on the pump head material, such as PVDF or PP.
Depending on the model, up to approximately 1000 litres per hour at the appropriate pressure.
Yes, certain variants can reach pressures of up to around 100 bar.
Yes, it can be controlled via signals such as mA, volts or pulses.
Available with 115 V, 220 V or 380 V connections, depending on the model.
Dimensions
| Height | 40 cm |
|---|---|
| Length | 50 cm |
| Width | 50 cm |
Weight
| Weight | 16 kg |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84135040 |
|
Prius D 50 Hz |
||
|
Gear housing made of cast aluminium, epoxy-coated, |
||
|
Dosing diaphragm material |
PTFE (Polytetrafluoroethylen) |
|
|
Operating temperature range |
0÷40°C (32÷104°F) |
|
|
Dosing medium temperature |
||
|
Dosing head PVDF |
0÷65°C (32÷149°F) |
|
|
Dosing head SS (Stainless steel) |
0÷90°C (32÷194°F) |
|
|
Dosing head PVC |
0÷40°C (32÷104°F) |
|
|
Operating noise |
78 dbA(± 5 dB) |
|
|
Temperature during transport and storage |
-10÷50°C (14÷122°F) |
|
|
Max. permissible suction height |
3m |
|
|
Transmission oil filling quantity |
0,3 ltr. |
|
|
Electromotoren |
||
|
Voltage |
230/400 VAC, 3 Ph |
230 VAC, 1Ph |
|
Rated power |
0,37 kW |
0,37 kW |
|
Speed |
1,370 U/min |
1390 U/min |
|
Rated current |
1,89 / 1,09 A |
2,8 A |
|
Protection |
IP 55 |
|
|
Class |
F – IEC 38/1 |
|
|
Motor Flange |
71 814 |
|
