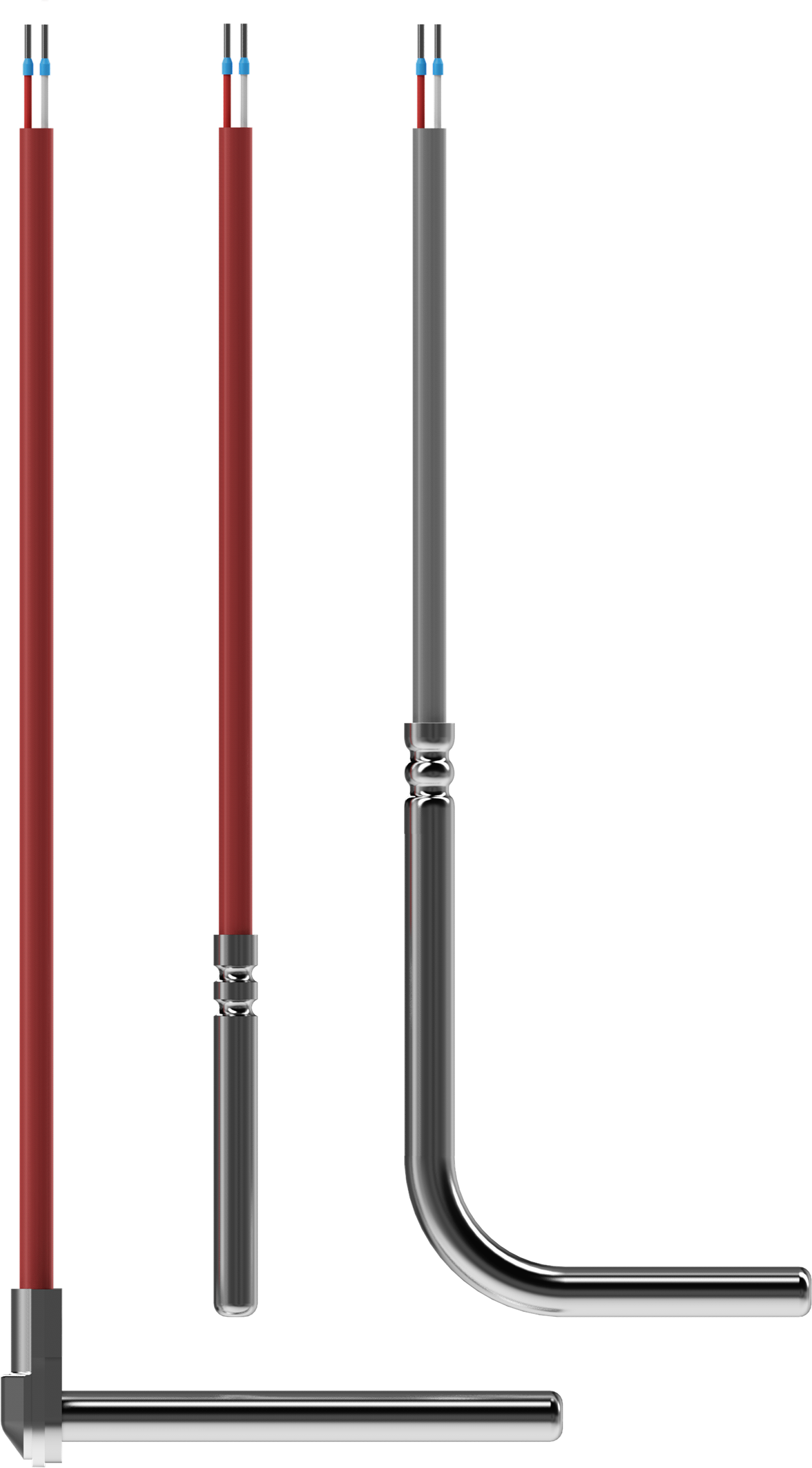

JUMO insertion resistance thermometer with connection cable, multi-part stainless steel protection tube (welded)

Product number: 802061

€108.80*

Please log in to receive your conditions.

Available, delivery time:

Version

Product number: 802061
GTIN: 4068823016260
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "JUMO insertion resistance thermometer with connection cable, multi-part stainless steel protection tube (welded)"

Push-in resistance thermometer with spiralised connection cable, one-piece stainless steel protection tube

Type: 902150/30-402-1001-1-6-150-11-2500/315,317

  • Temperature measuring range: -50 ... +400 °C / Metal mesh
  • Measuring insert: 1x Pt 100 in three-wire circuit
  • Installation length: 150 mm
  • Cable length: 2500 mm
  • Tolerance class: Class B (standard)
  • Thermowell diameter: 6 mm
  • Wire end ferrules
  • Extra code: with bend protection, cable shielded
  • Available as single and double resistance thermometers
  • Available in straight and angled versions to meet different installation requirements.
  • Flexible connection cables
  • Strain relief to protect against mechanical stress
  • Meets SIL and PL qualification standards for maximum safety
  • Optional kink protection
  • Areas of application:

Laboratory technology
Climate cabinets
Solar systems
Heating, air conditioning, ventilation
Apparatus engineering
The insertion resistance thermometer offers precise temperature measurement in both liquid and gaseous media. The wide range of variants makes it ideal for various applications in industrial environments.

This thermometer ensures reliable performance in dry and damp rooms and enables accurate temperature measurements. The robust design and flexible configuration options ensure precise temperature monitoring.

Dimensions

Weight

Other attributes

Customs tariff number 90251900
Einbaulänge in mm 150 mm
Messeinsatz 1x Pt 100 Dreileiterschaltung
Schutzrohrdurchmesser 6 mm
Temperaturbereich -50°C ... +400°C
Technical data

Electrical data:

Electrical connection / connection element

- Connection cable with bare stripped cable end

- Connection cable with tinned connection wires

- Connection cable with wire end ferrules

- Connection cable with M12 plug connector

- Connection cable with multipole plug connection

Environmental influences:

Reliable ambient temperature of the connection cable

- PVC - 5 to + 80°C

- Silicone - 50 to + 180°C

- PTFE -50 to + 260°C

- Metal braiding -50 to + 260°C

- Glass fibre -50 to + 400°C

Mechanical properties:

Materials Insulation material Connection cable

- PVC

- silicone

- Metal braiding

- Glass fibre

Protection tubes:

stainless steel

Connection cable:

Strain-relieved

Protective tube diameter:

- Ø 3 mm

- Ø 4 mm

- Ø 5 mm

- Ø 6 mm

Response times:

DIN EN IEC 60751

- 1x Pt100 in two-wire circuit

- 1x Pt100 in three-wire circuit

- 1x Pt100 in four-wire circuit

- 1x Pt1000 in two-wire circuit

- 2x Pt100 in two-wire circuit

- 2x Pt100 in three-wire circuit

- 2x Pt1000 in two-wire circuit

Tolerance class:

- Class B (standard)

- Class A

- Class AA
