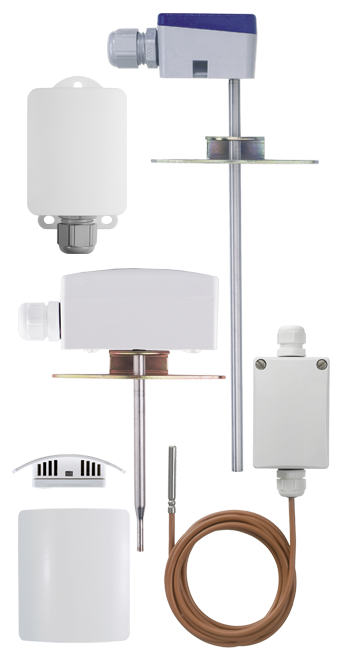

JUMO outdoor resistance thermometers Protection class IP65
€41.70*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "JUMO outdoor resistance thermometers Protection class IP65"
JUMO Outdoor Resistance Thermometer with Pt100 in Two-Wire Circuit for Measuring Range -50 to +90 °C
JUMO Outdoor Resistance Thermometer Protection Class IP65 - Type: 902520/15-361-1003-1/903
The resistance thermometer is suitable for temperature measurements outdoors and in environments exposed to moisture. Equipped with a Pt100 sensor in a two-wire circuit, a measuring range of -50 to +90 °C, and an IP65 cable gland, this version is designed for reliable outdoor temperature measurement in HVAC applications.
With protection class IP65, this version is intended for outdoor temperature measurements and other installation locations where the housing must be reliably protected against dust and moisture. This JUMO outdoor resistance thermometer is therefore particularly suitable for HVAC applications in outdoor environments.
Technical Data
- Version: Outdoor resistance thermometer
- Measuring insert: 1 x Pt100
- Circuit type: Two-wire circuit
- Transmitter: without
- Operating temperature: -50 to +90 °C
- Protection class: IP65
- Special feature: Cable gland (IP65)
Advantages and Technical Features
- well suited for outdoor temperature measurements
- IP65 protection class for increased housing protection requirements
- IP65 cable gland for protected cable entry
An additional advantage of this version is the IP65 cable gland. It supports secure and protected cable entry and is especially useful where the connection point must remain reliably sealed in outdoor or humid environments. This is particularly beneficial for measuring points exposed to weather conditions.
For temperature measurement, the device uses a Pt100 sensor in a two-wire circuit. This proven sensor design is suitable for many standard temperature measurement tasks in HVAC technology. Since no transmitter is integrated, this version is well suited for applications where the sensor is connected directly to compatible evaluation or control systems.
With a measuring range of -50 to +90 °C, this version covers both low outdoor temperatures and warmer operating conditions. This makes it suitable for applications on buildings, in technical outdoor areas, or wherever temperatures need to be monitored under changing environmental conditions.
Typical Applications
- Outdoor temperature measurement on buildings
- Heating, ventilation, and air conditioning systems
- Technical outdoor areas
- Weather-exposed measuring points
- Applications with protected cable entry
- Temperature monitoring in environments with increased protection requirements
Dimensions
| Height | 5 cm |
|---|---|
| Length | 14 cm |
| Width | 16 cm |
Weight
| Weight | 14 g |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90251900 |
| Messeinsatz | 1x Pt 100 Zweileiterschaltung |
| Schutzart | IP65 |
| Temperaturbereich | -50°C ... +90°C |
| Feature | Description |
|---|---|
| Connection housing |
Plastic housing made of PC (basic type 902520/11, material: PP),
degree of protection IP20 to IP65. Basic type 902524/25, degree of protection IP54 and IP65. |
| Protective tube | Stainless steel 1.4571; Ø 6 mm |
| Measuring insert |
Pt100 temperature sensor, DIN EN 60751, class B, two-wire circuit. Pt1000 temperature sensor, DIN EN 60751, class B, two-wire circuit. Further versions, see ordering information. |
| Transmitter | Analogue transmitter, output signal 4 to 20 mA or 0 to 10 V. |
| Characteristic | Output 4 to 20 mA | Output 0 to 10 V |
|---|---|---|
| Input | ||
| Measuring input | Pt100 (DIN EN 60751) | Pt100 (DIN EN 60751) |
| Sensor current | ≤0,5 mA | ≤0,5 mA |
| Measuring rate | Continuous measurement, due to analogue signal path. | Continuous measurement, due to analogue signal path. |
| Measuring circuit monitoring | ||
| Underrange (measuring range underrun) | decreasing down to ≤ 3,6 mA | 0 V |
| Overrange (measuring range overrun) | rising to ≥ 22 up to < 28 mA (typically 24 mA) |
rising to ≥ 11 up to < 14 V (typically 12 V) |
| Sensor short circuit | ≤ 3,6 mA | 0 V |
| Sensor and cable break | ≥ 22 to < 28 mA (typically 24 mA) | ≥ 11 to < 14 V (typically 12 V) |
| Output | ||
| Output signal | Pulsed direct current 4 to 20 mA | DC voltage 0 to 10 V |
| Transfer behaviour | temperature-linear | temperature-linear |
| Transmission accuracy | ≤ ±0,1 % | ≤ ±0,2 % |
| Attenuation of the residual ripple of a 24 V power supply, amplitude 10 V / 50 Hz, load 470 Ω / 10 MΩ load | 37 dB | 40 dB |
| Load (Rb) | Rb = (Ub - 7,5 V) ÷ 22 mA | - |
| Load effect | ≤ ±0,02 % / 100 Ωa | - |
| Load / Load Influence | - | ≥ 10 kΩ / ≤ ±0,1 % |
| Settling time after temperature change | ≤ 10 ms | ≤ 10 ms |
| Calibration conditions | DC 24 V / approx. 22 °C | DC 24 V / approx. 22 °C |
| Calibration accuracy | ≤ ±0,2 %a,b or ≤ ±0,2 K | ≤ ±0,2 %a,b or ≤ ±0,2 K |
| Overall sensor accuracy/Calibration | ±0,4 K (typical) at 20 °C / 24 V Power supply |
±0,4 K (typical) at 20 °C / 24 V Power supply |
| Power supply | ||
| Power supply (Ub) | DC 7,5 at 30 V | DC 15 at 30 V |
| Reverse polarity protection | yes | yes |
| Power supply influence | ≤ ±0,01 %/V Deviation from 24 Va | ≤ ±0,01 %/V Deviation from 24 Va |
| Environmental influences | ||
| Operating temperature range | -40 to +85 °C | -40 to +85 °C |
| Lagertemperaturbereich | -40 to +100 °C | -40 to +100 °C |
| Temperature influence | ≤ ±0,01 %/K deviation from 22 °C a | ≤ ±0,01 %/K deviation from 22 °C a |
| Climatic resistance similar to DIN EN 60654 class C1 |
relative humidity ≤ 95% annual average without condensation | relative humidity ≤ 95% annual average without condensation |
| EMC emissions and immunity | EN 61326 class B, industrial requirements | EN 61326 class B, industrial requirements |
a All specifications refer to the full-scale value of 20 mA.
b The higher value applies.
| Certification marks | Testing body | Certificate / test number | Basis for audit | Applies to |
|---|---|---|---|---|
|
SIL QUALIFIED PL QUALIFIED |
– | – | – |
Type suffix 058 in conjunction with the manufacturer's declaration |
