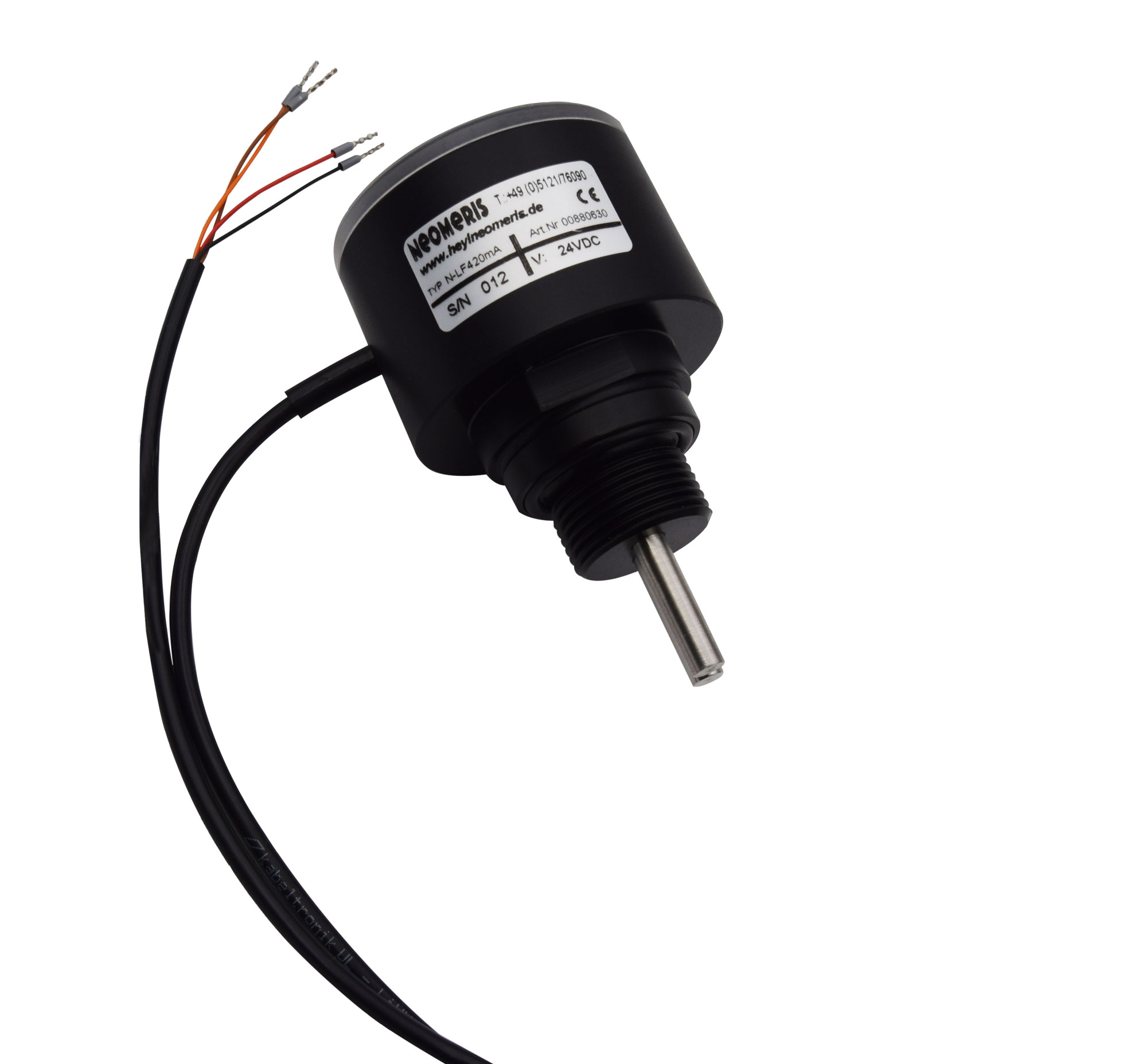

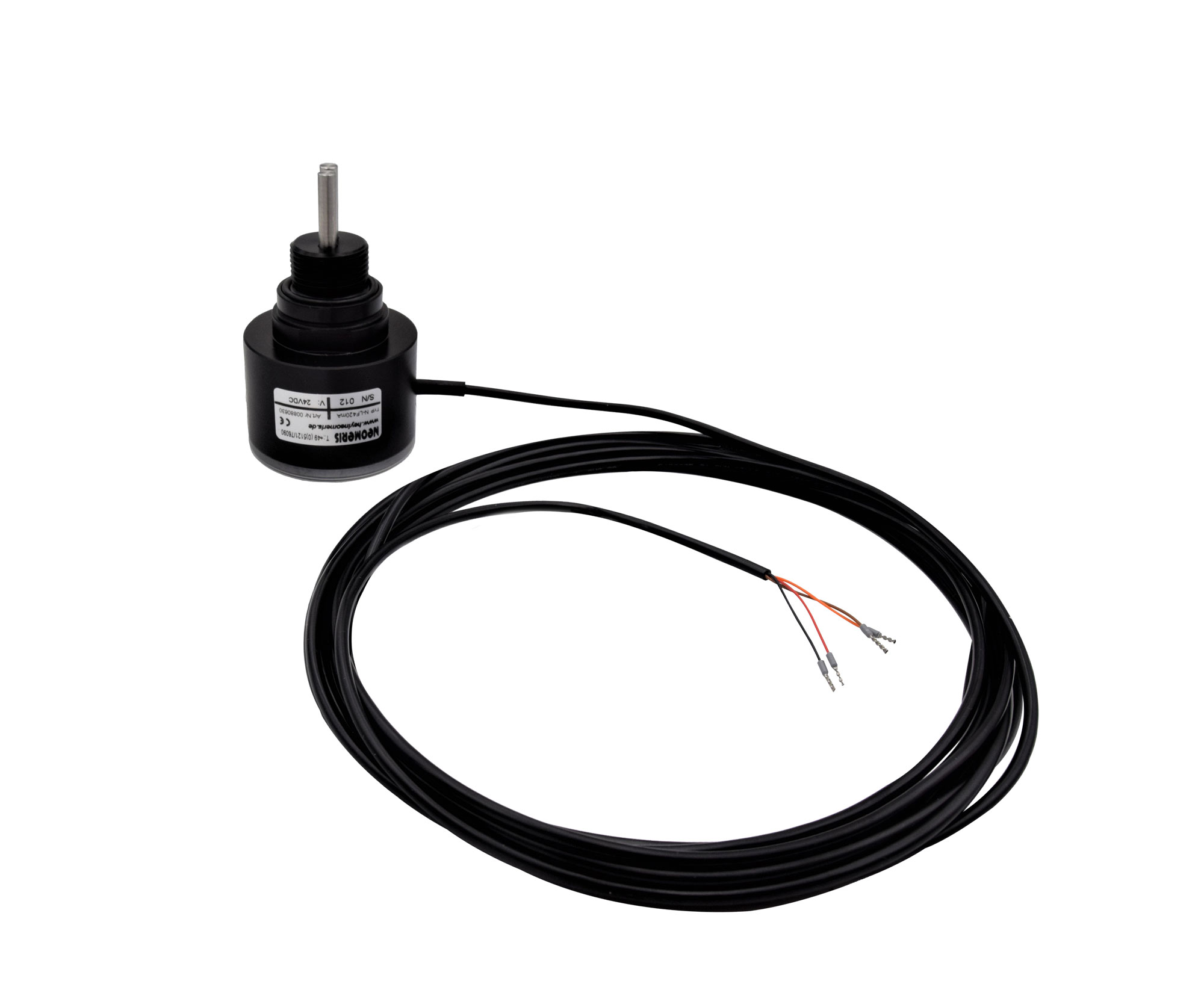

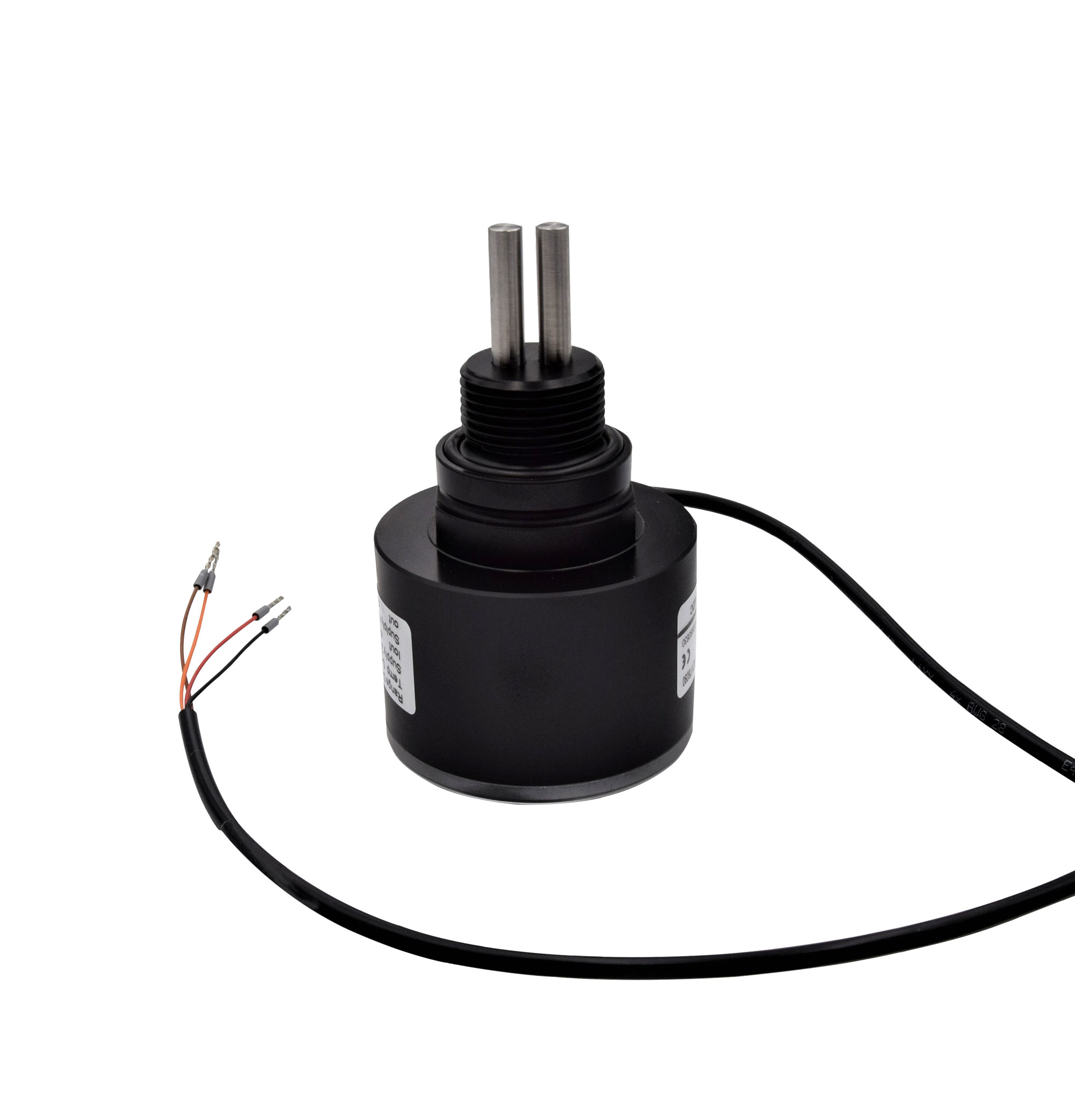

N-LF420 Conductivity meter with 4-20mA output and measuring range according to your requirements, LED display and screw-in thread as needed

Product number: 880630M.3

€249.00*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.
Show gross prices
(incl. VAT)

Available in 28 days, delivery time 1-2 days

measuring range
screw-in cel
LED Configuration

Product number: 880630M.3
GTIN: 4068823008050
Our comment: Further product requests or an OEM label? No problem, please contact us. Cable lenght: 5 metres
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "N-LF420 Conductivity meter with 4-20mA output and measuring range according to your requirements, LED display and screw-in thread as needed"

High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.

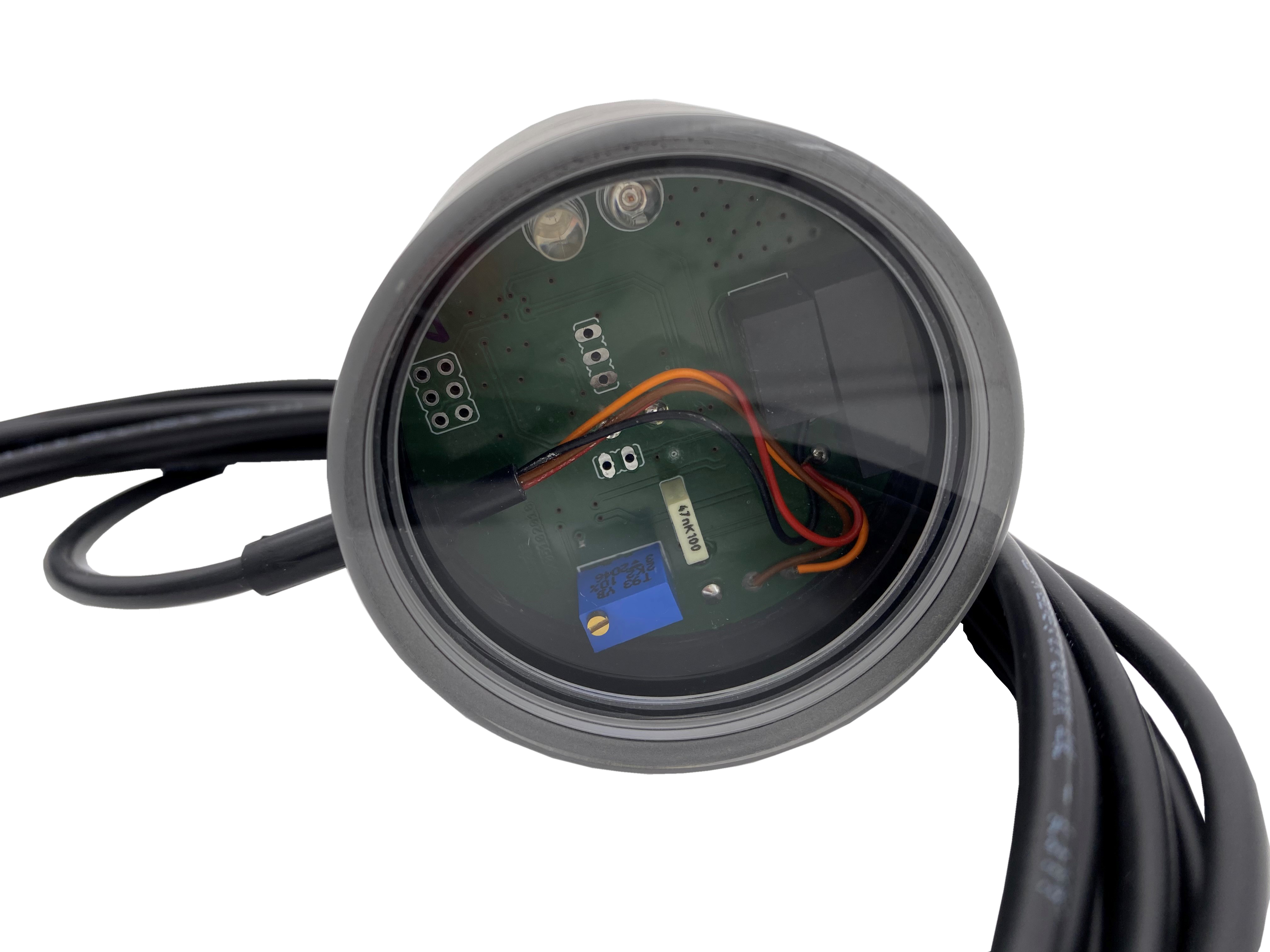

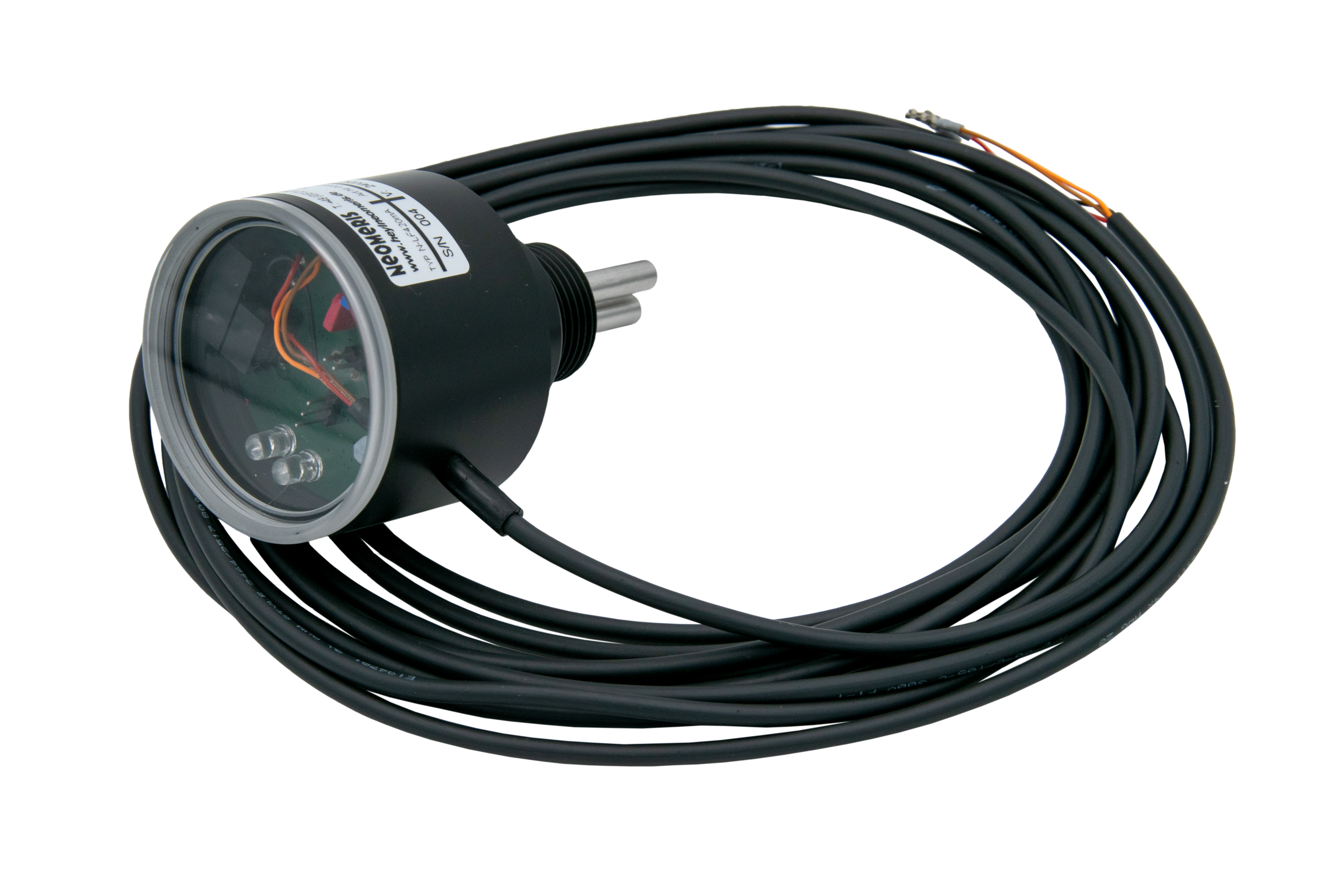

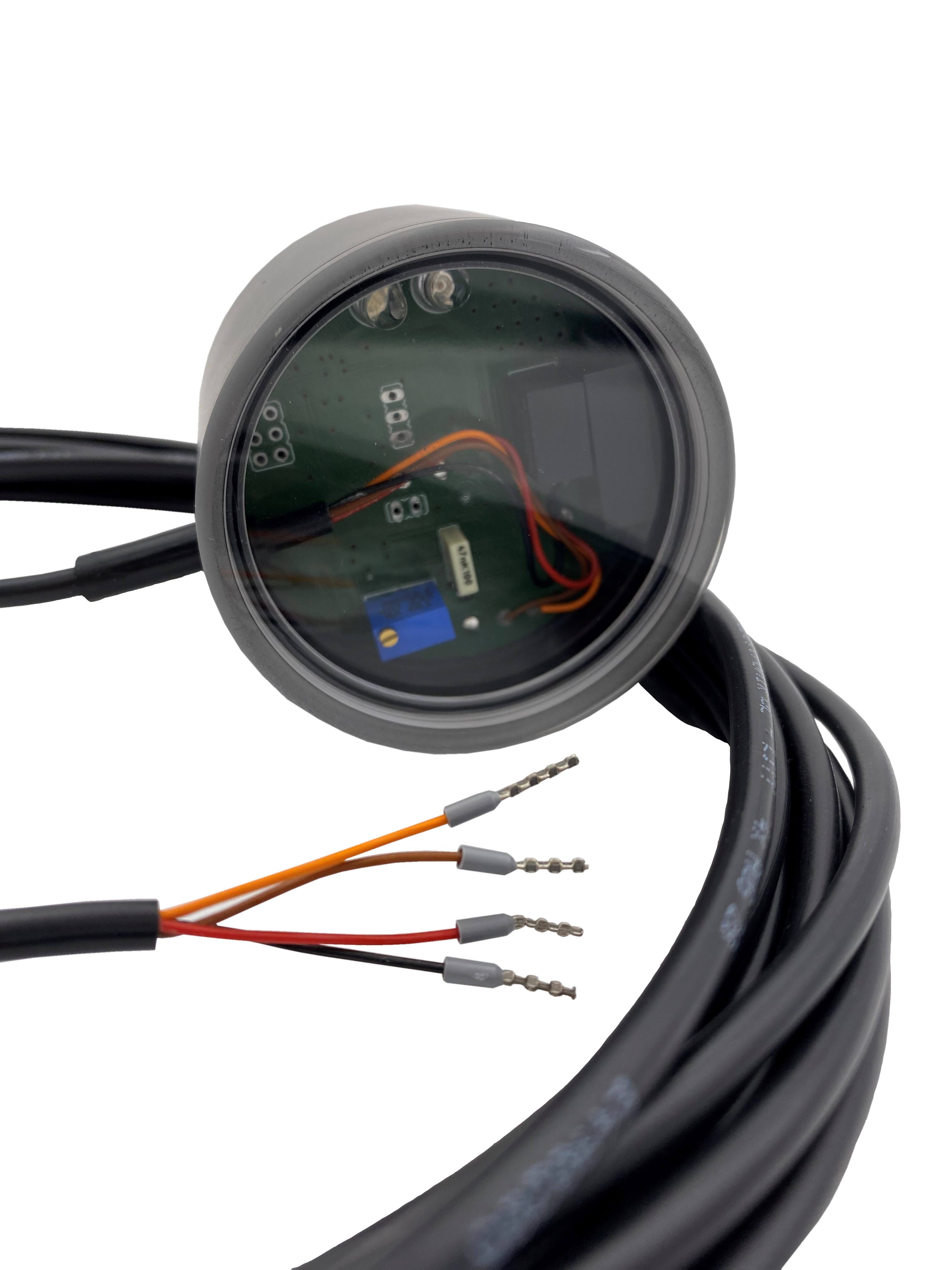

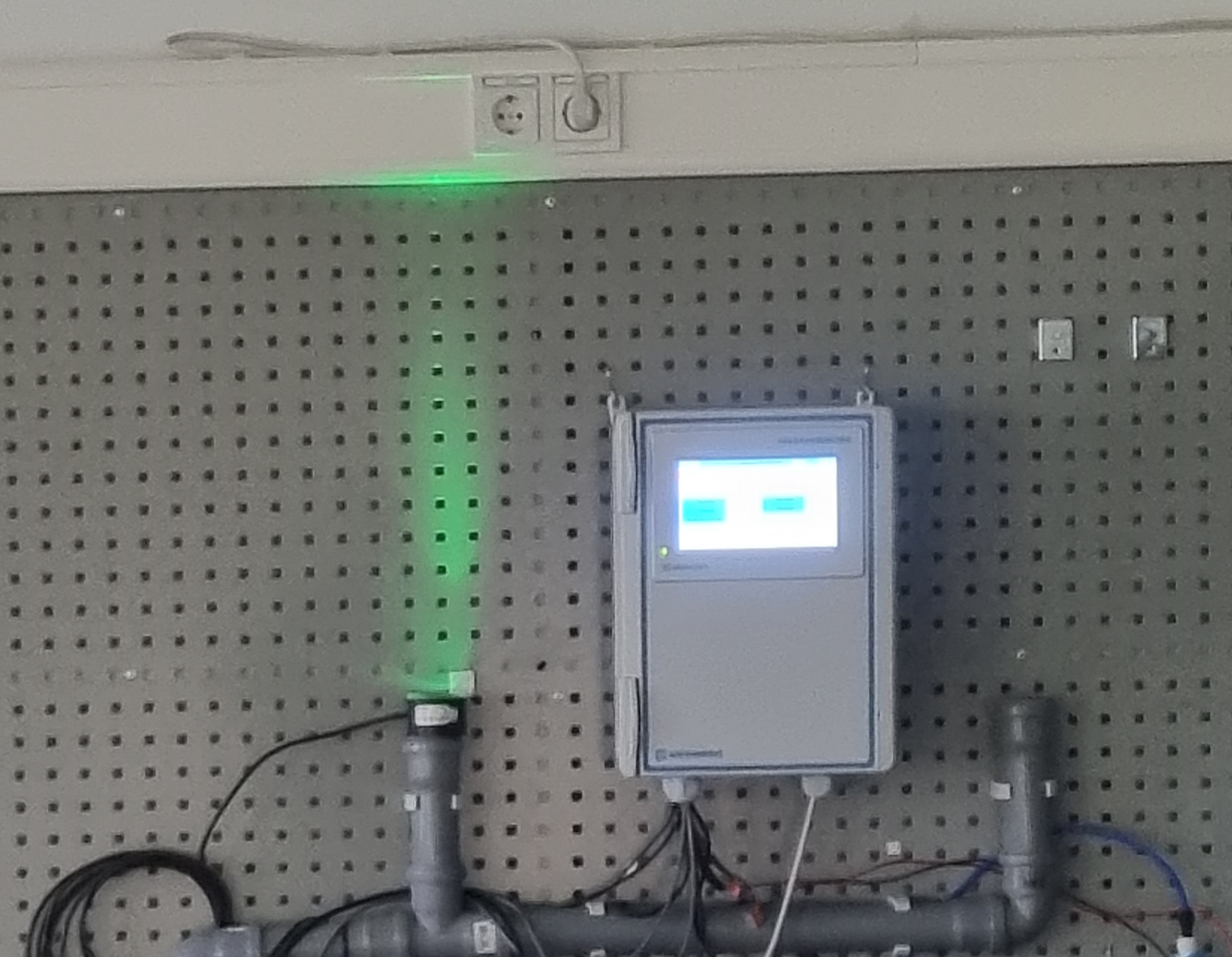

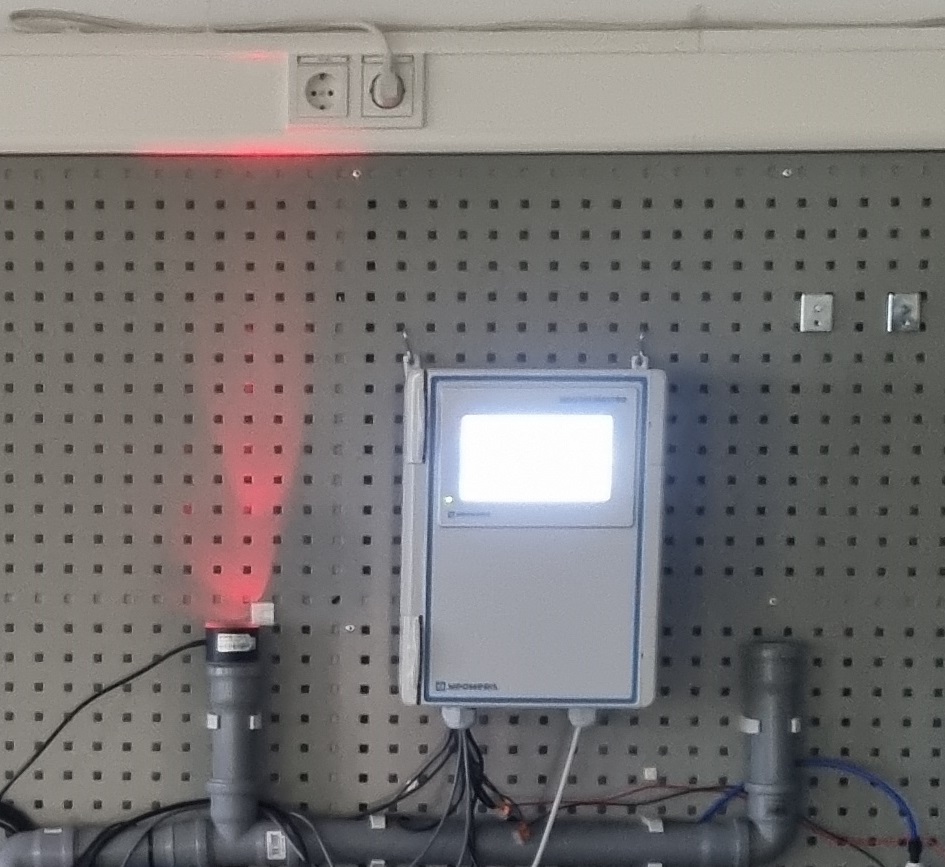

Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.

Quality Made in Germany.

Standard LED configuration (1 green LED, 1 red LED):

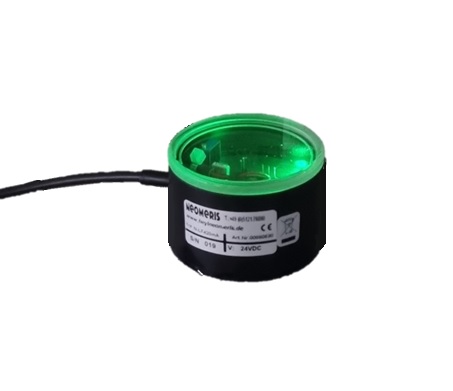

<20 µS/cm = green
>20 µS/cm to <40µS/cm = green/red flashing

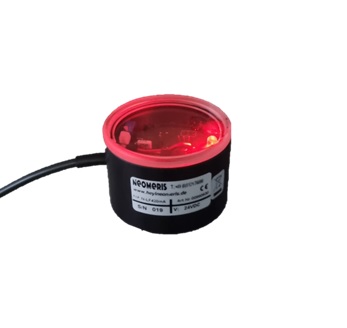

>40 µS/cm = red
Technical data:
Measuring range: according to your requirements
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED

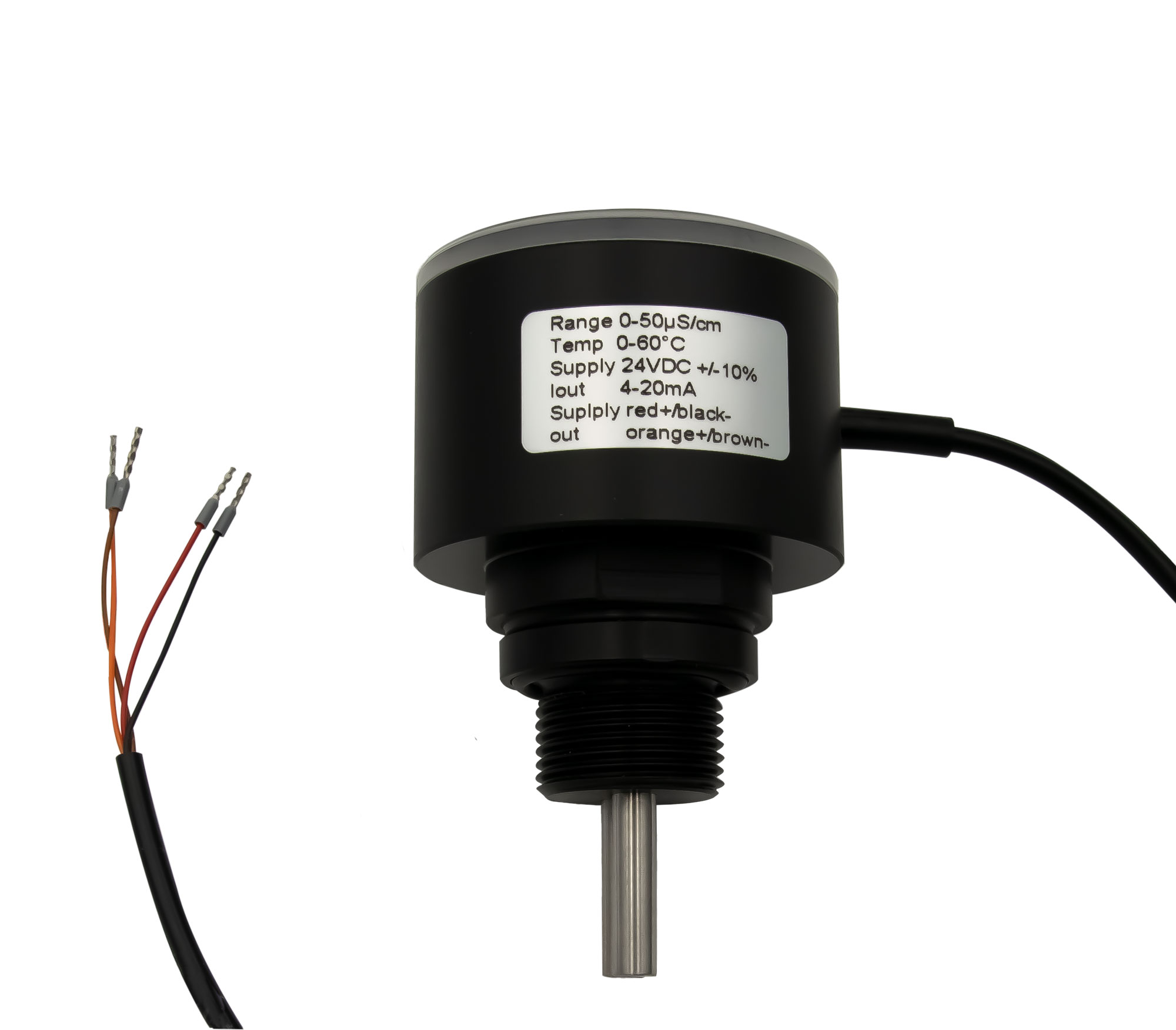

Analog output: 4-20 mA = 0-50 μS/cm
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread: according to your requirements
Housing: POM (polyoxymethylene)
Vision panel: PMMA (acrylic glass)
Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*
