LED Configuration:
Standard (see text)
|
measuring range:
0-2000 μS/cm
|
screw-in cel:
3/4"

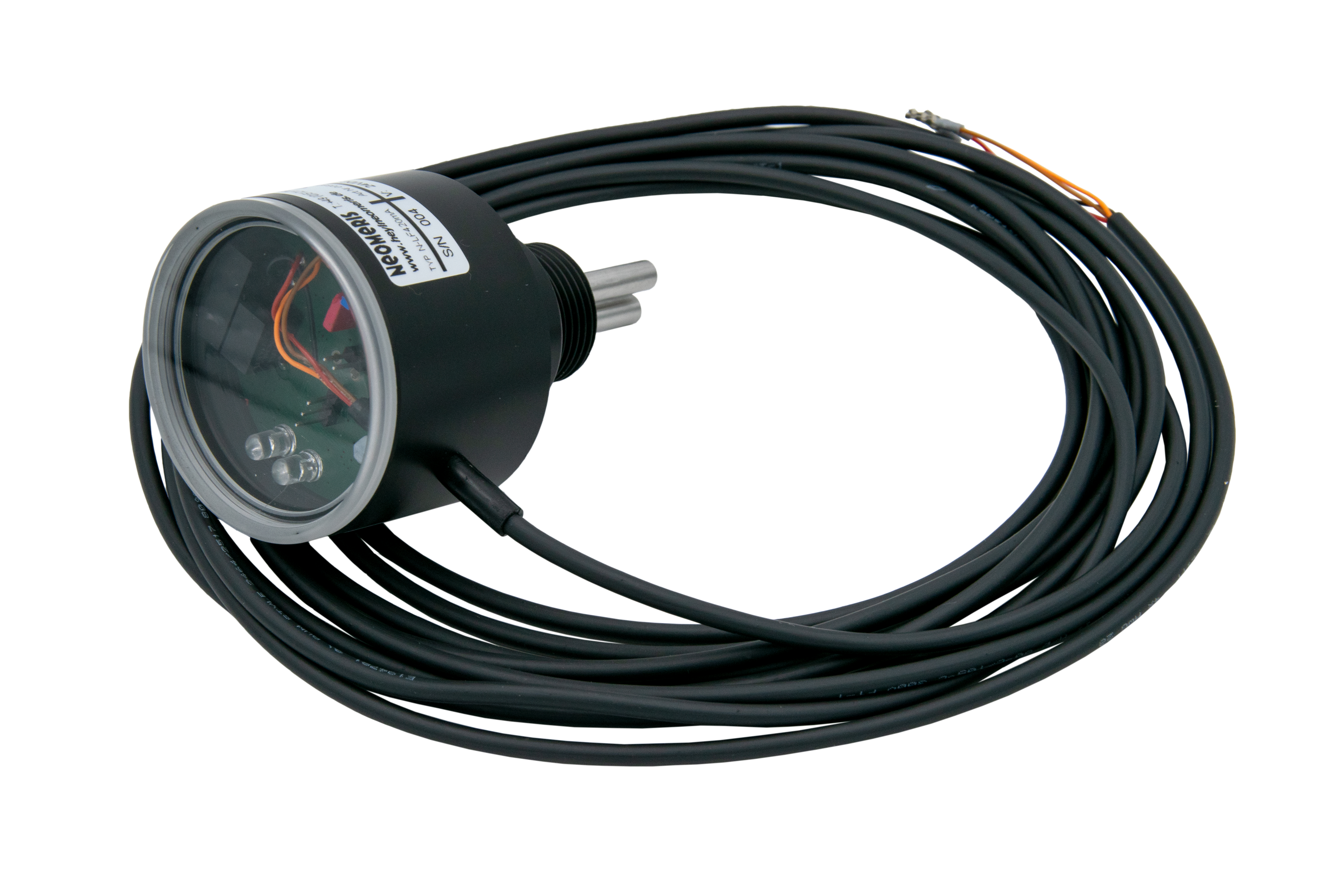

High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):<1500 µS/cm = green>1500 µS/cm to <1900µS/cm = green/red flashing >1900 µS/cm = red
Technical data:Measuring range: 0 - 2000 μS/cmTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/-10% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-2000 μS/cmPower supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: 3/4"Housing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
LED Configuration:
Standard (see text)
|
measuring range:
0-50 μS/cm
|
screw-in cel:
Your desired thread
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):<20 µS/cm = green>20 µS/cm to <40µS/cm = green/red flashing >40 µS/cm = red
Technical data:Measuring range: 0 - 50 μS/cmTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/-10% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-50 μS/cmPower supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: according to your requirementsHousing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
LED Configuration:
Standard (see text)
|
measuring range:
Your desired measuring range
|
screw-in cel:
3/4"
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):<20 µS/cm = green>20 µS/cm to <40µS/cm = green/red flashing >40 µS/cm = red
Technical data:Measuring range: according your requirementsTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/-10% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-... μS/cm (according your needed measuring range)Power supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: 3/4"Housing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
Head transmitter:
4-20 mA
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-1.000 μS/cm
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:
preconfigured for NeoTecMaster®
modular design
industry standard
resource friendly
Head transmitter:
Modbus 12-24 VDC
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-500 μS/cm
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:Preconfigured for NeoTecMaster®
Modular design
Industry standard
conserves resources
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 500.000 μS (0 - 500 mS)
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)
