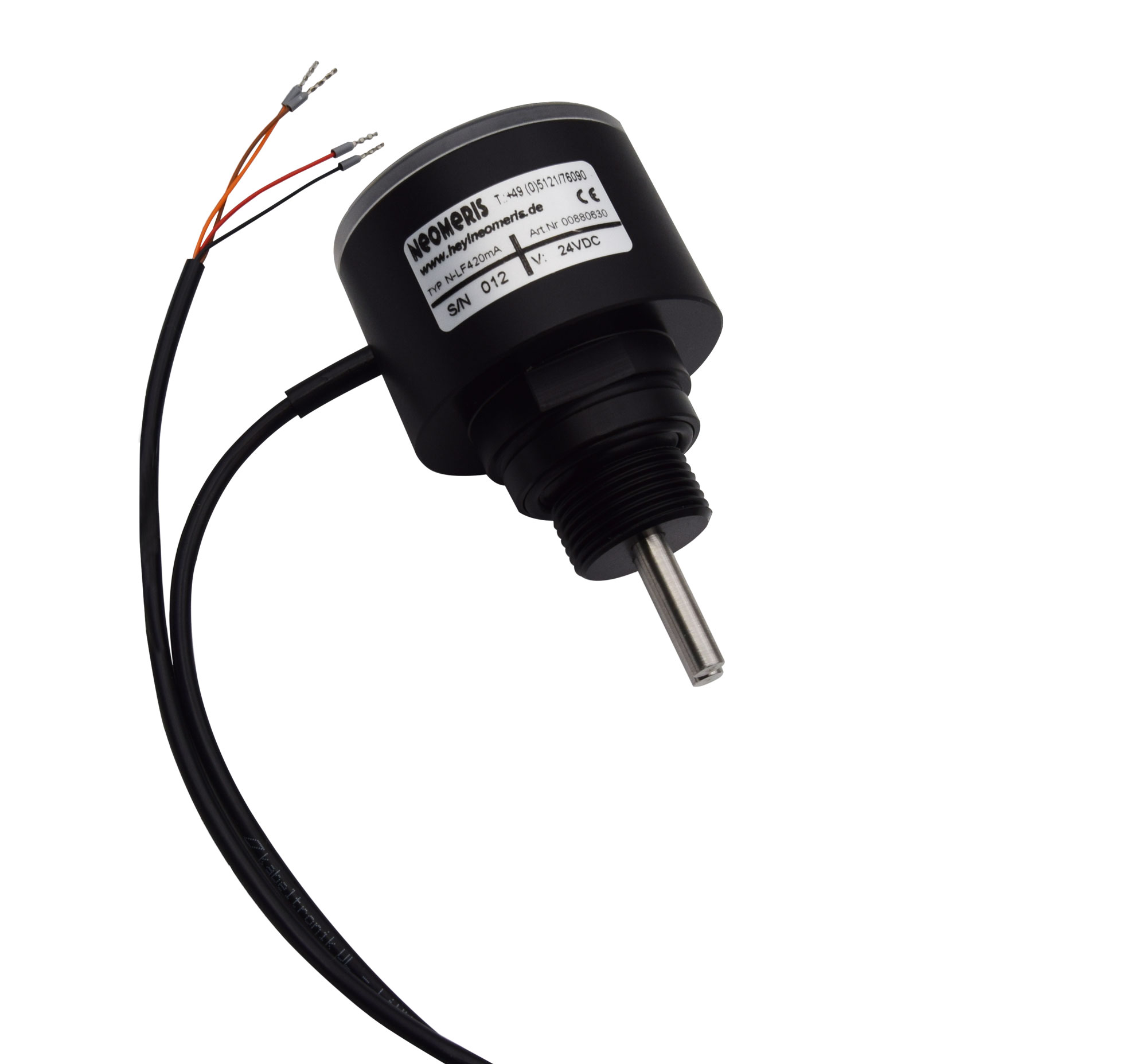

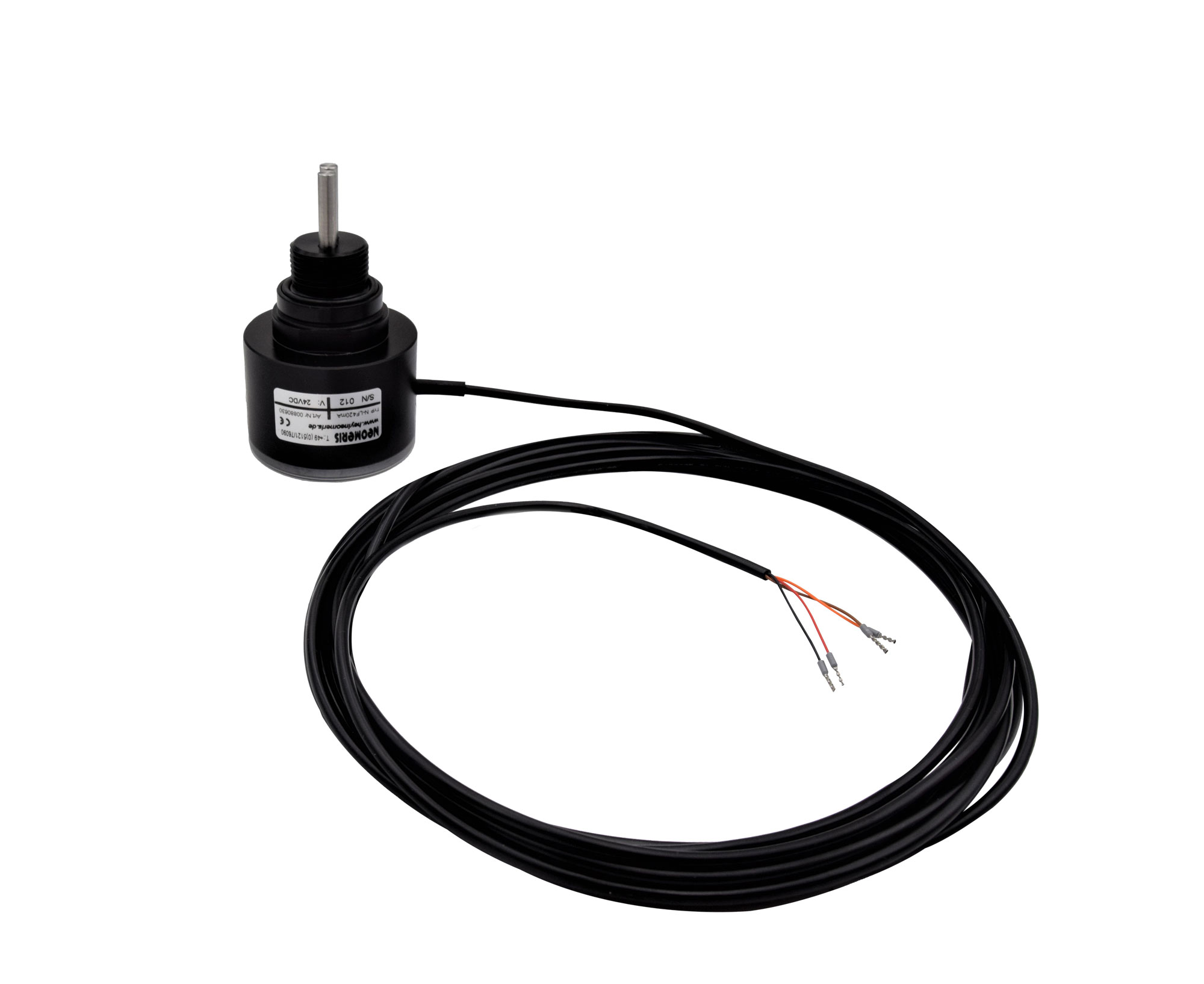

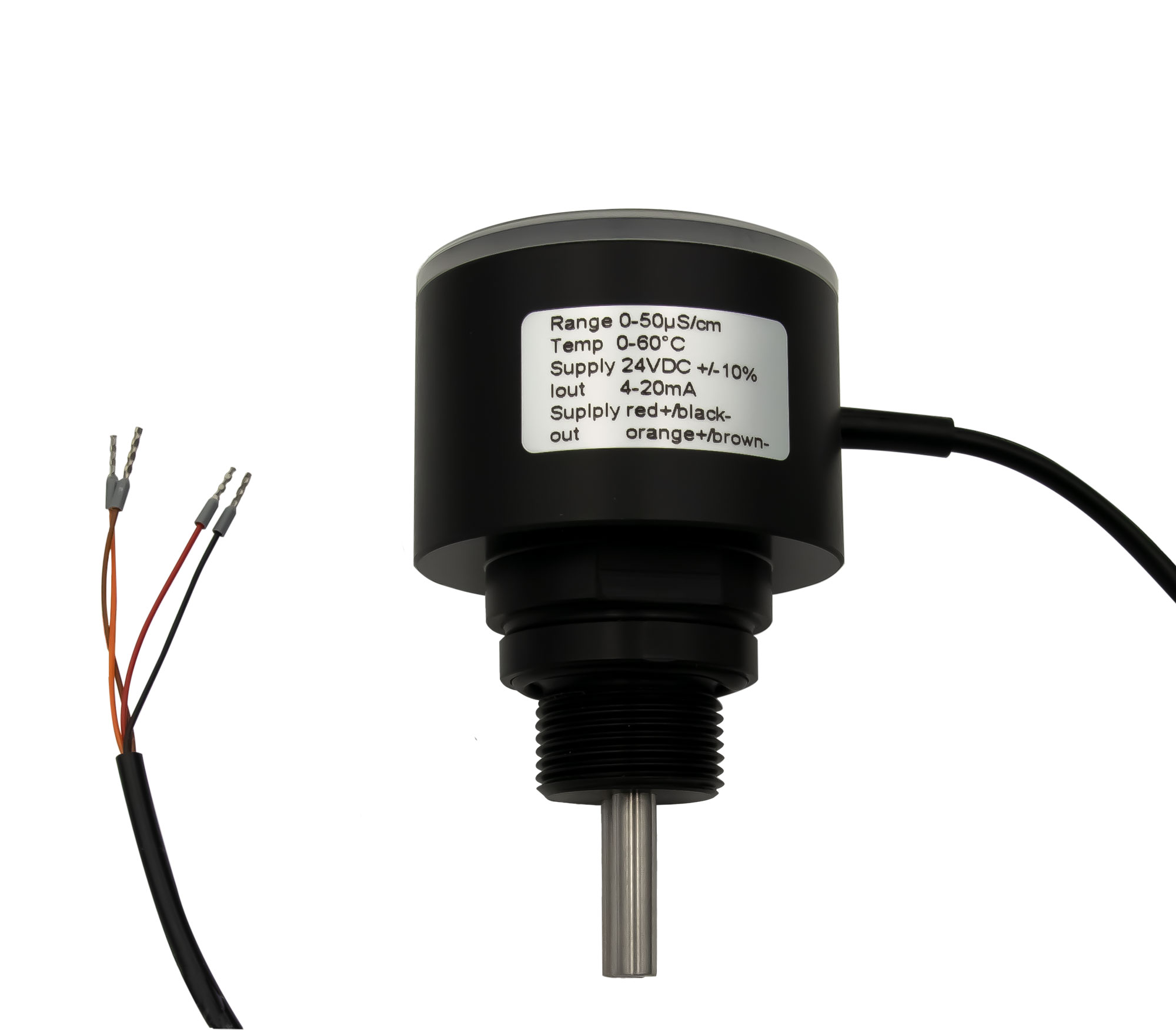

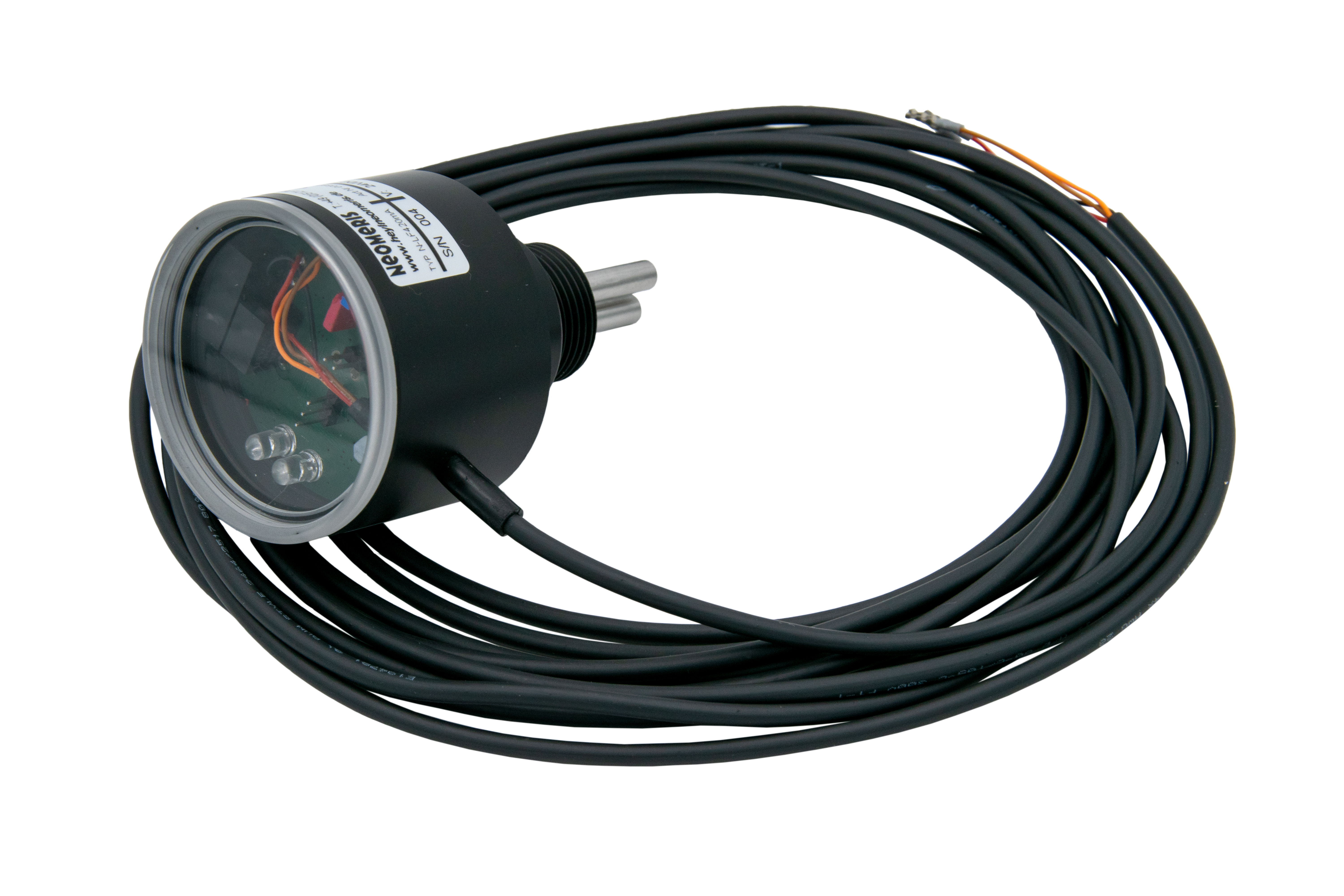

N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements

Product number: 880630M.4
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements
N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements

€249.00*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.
Show gross prices
(incl. VAT)

Available in 28 days, delivery time 1-2 days

measuring range
screw-in cel
LED Configuration

Product number: 880630M.4
GTIN: 4068823007145
Our comment: Further product requests or an OEM label? No problem, please contact us. Cable lenght: 5 metres
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "N-LF420 conductivity meter with 4-20mA output, measuring range, LED display and screw-in thread according to your requirements"

High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.

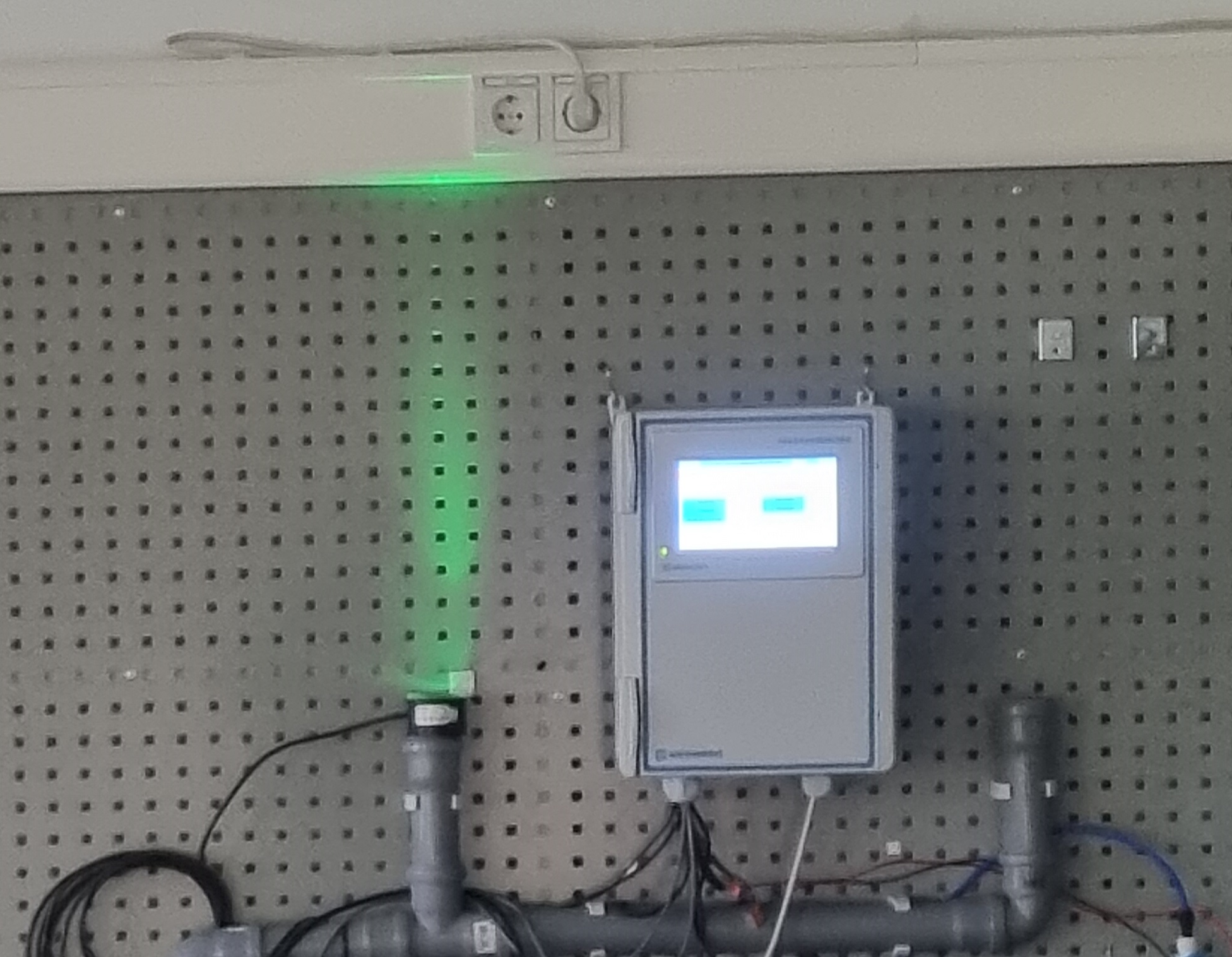

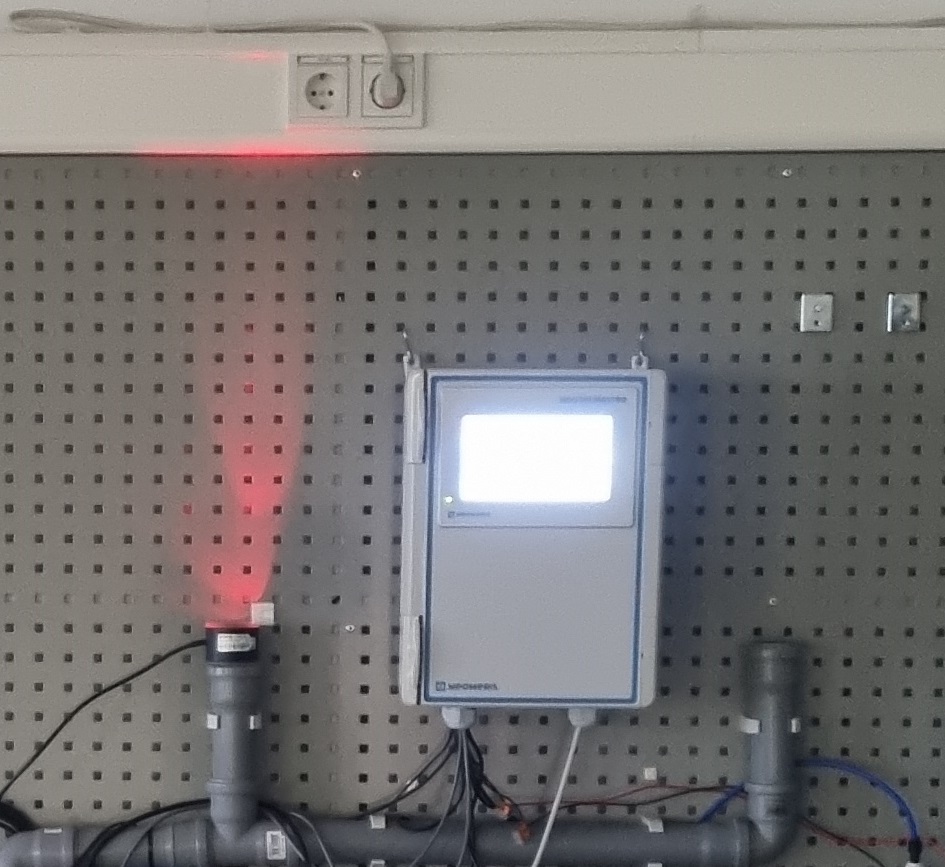

Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.

Quality Made in Germany.

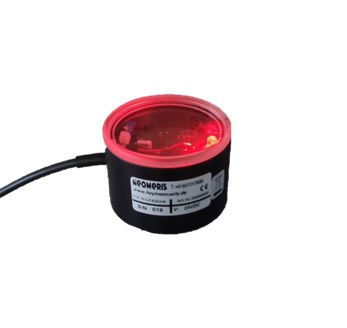

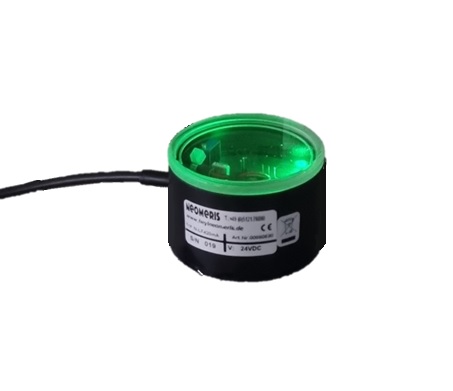

LED configuration according your needs (1 green LED, 1 red LED):
<... µS/cm = green
>... µS/cm to <...µS/cm = green/red flashing
>... µS/cm = red



Technical data:
Measuring range: according your requirements
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED
Analog output: 4-20 mA = 0-... μS/cm (according your measuring range)
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread:  according your requirements
Housing: POM (polyoxymethylene)

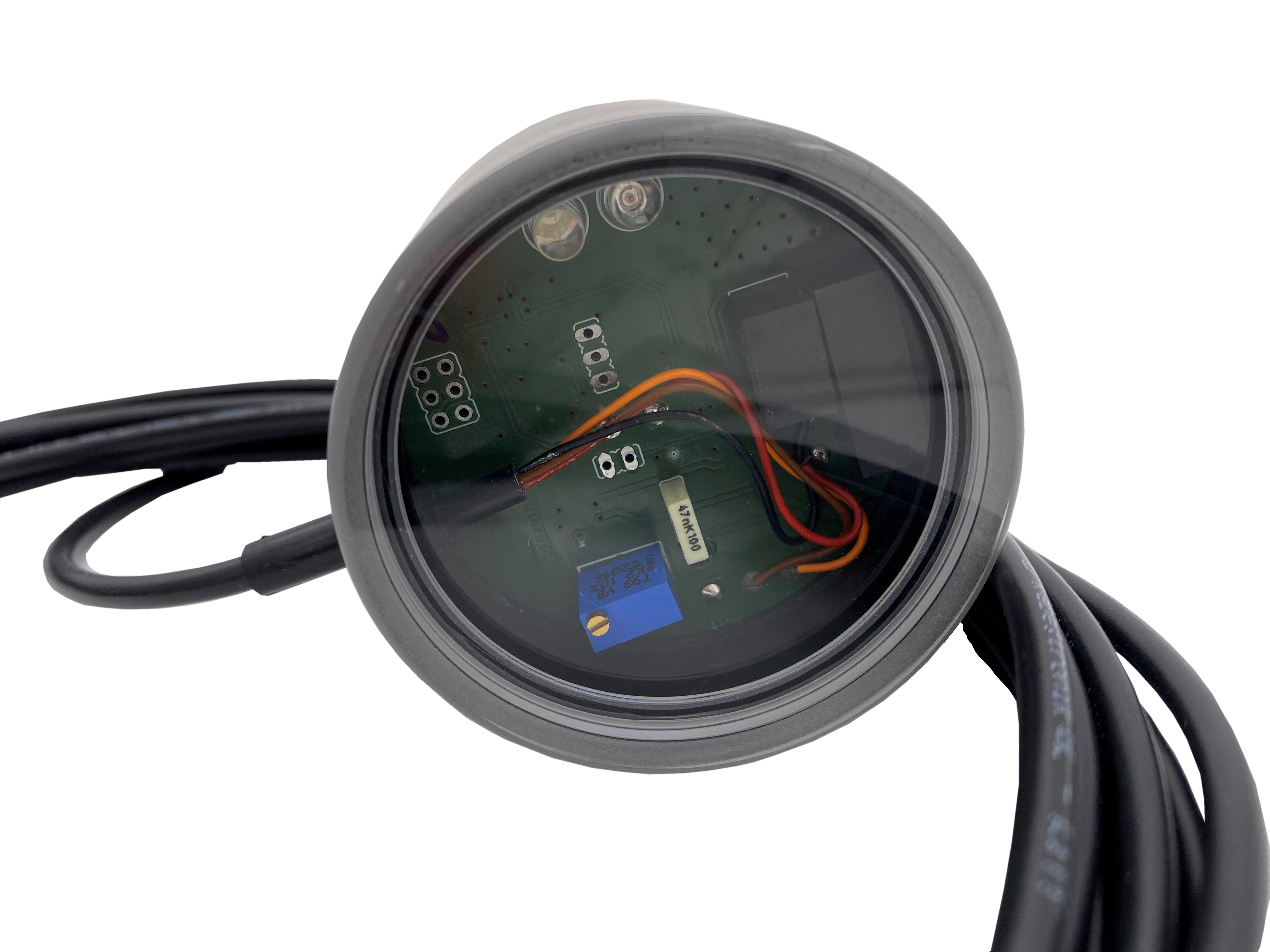

Vision panel: PMMA (acrylic glass)
Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*
