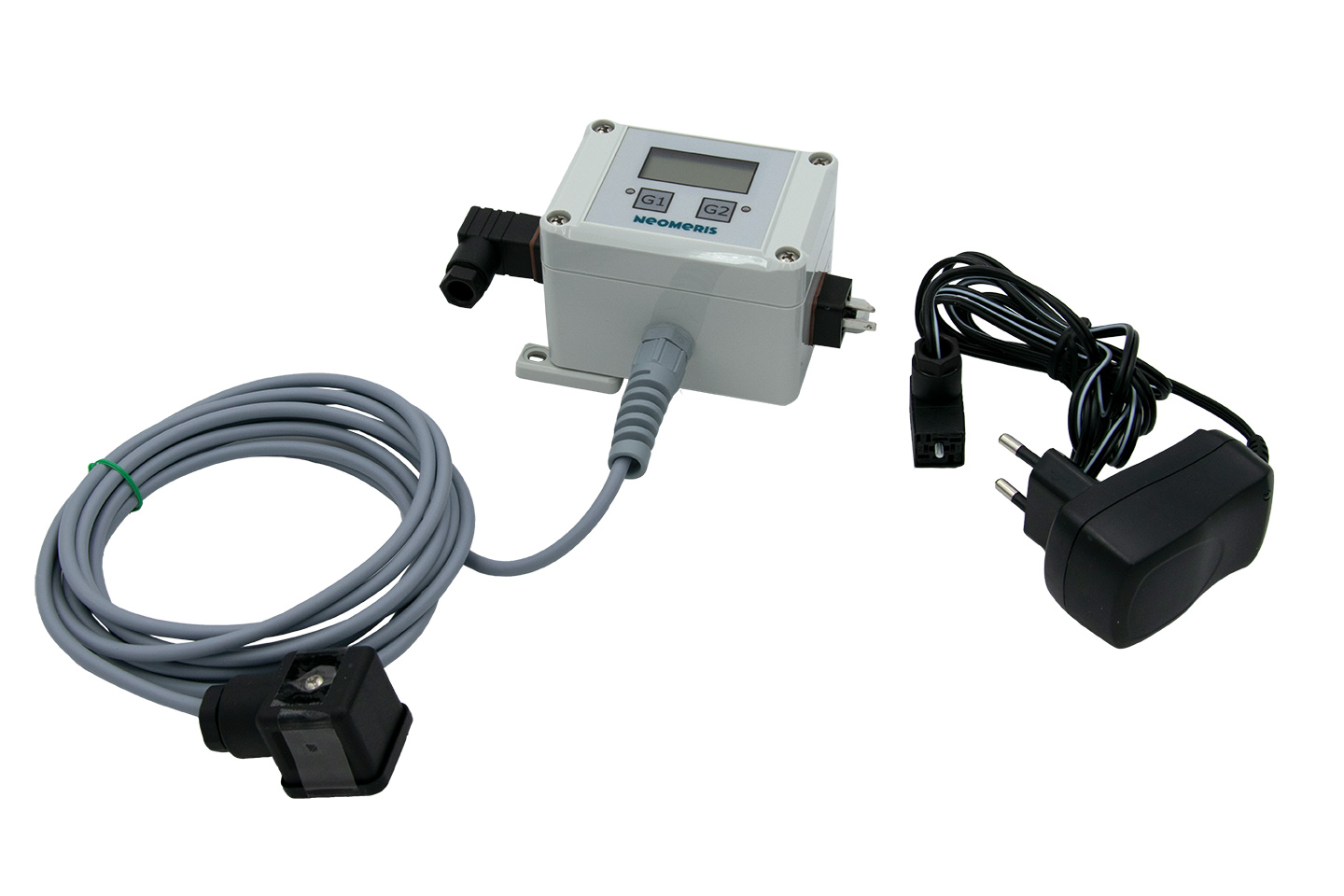

N-LFW, conductivity measuring instrument with 3m hardwired connection cable

Product number: 880569
Product information "N-LFW, conductivity measuring instrument with 3m hardwired connection cable"
Device for the measurement of the electrical conductivity of aqueous solutions using a two-electrode conductivity cell without temperature compensation. Designed as measuring device with external measuring cell, with or without potential-free relay output available.
- Applications: Demineralisation, reverse osmosis, desalination, cooling water recirc., phase separation
- Operation at 9V DC via included wall transformer power supply.
- Versions with relay output: 1 potential-free relay with reversible mode of action for the relay output
- Optical limit indication via LEDs

Technical Data
- Measuring ranges: 0 - 10 / 100 / 1000 uS/cm, depending on type of device
- Indication of limit values: Optical via LEDs, 2 limit values can be set within 0 and 100 % of the measuring range
- Versions with relay output: 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA
- Versions with external measuring cell: For this reason measuring device includes wall brac

Dimensions

Height 7 cm
Length 18 cm
Width 23 cm

Weight

Weight 418 g

Other attributes

Country of origin DE
Customs tariff number 90278930

Recommended measuring cells

N-LF3401 conductivity measuring cell C=0.1 with PT100, 3/4 inch screw-in cell and solenoid valve connector
Product number: 880574
measuring range: 0-10 / 0-20 / 0-100 / 0-200 µS/cm (K= 0,1) | screw-in cel: 3/4"
Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€117.75*
N-LF1201 conductivity measuring cell C=0.1 with PT100, 1/2 inch screw-in cell and solenoid valve connector
Product number: 880576
measuring range: 0-10 / 0-20 / 0-100 / 0-200 µS/cm (K= 0,1) | screw-in cel: 1/2"
Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€113.00*
N-LF3410 conductivity measuring cell C=1.0 with PT100, 3/4 inch screw-in cell and solenoid valve connector
Product number: 880575
measuring range: 0-1000 / 0-2000 µS/cm ( K= 1,0) | screw-in cel: 3/4"
Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€117.75*
N-LF1210 conductivity measuring cell C=1.0 with PT100, 1/2 inch screw-in cell and solenoid valve connector
Product number: 880577
measuring range: 0-1000 / 0-2000 µS/cm ( K= 1,0) | screw-in cel: 1/2"
Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€119.45*
