NeoTec Select Sensor Conductivity modular measuring package with Modbus signal output for low measuring range

Product number: 891017

€928.80*

Please log in to receive your conditions.

Available in 30 days, delivery time 1-2 days

measuring range
Head transmitter
Tee

Product number: 891017
GTIN: 4260682383259
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "NeoTec Select Sensor Conductivity modular measuring package with Modbus signal output for low measuring range"

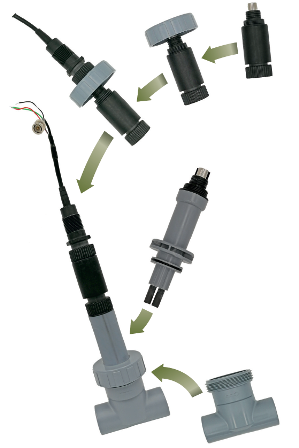

The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.


Advantages:
  • Preconfigured for NeoTecMaster®
  • Modular design
  • Industry standard
  • conserves resources

Dimensions

Length 20 cm
Width 28 cm, 34 cm

Weight

Weight 1.000 g

Other attributes

Technical data:
  • Cell constant: k=0.1 +/-10%.
  • Measuring range: 0.1 to 500 μS/cm
  • Pt1000
  • Material: CPVC
  • Max. Temperature / Pressure: 60°C (140 deg F)/ 6.5bar (100 psig)
  • Modbus module 24 VDC
  • Connection cable 3m, cable ends tinned
  • Flow cell 1.5 "with 1“ NPT inner thread
