Push-in resistance thermometer with straight connection cable, stainless steel protection tube
Price on request
Product information "Push-in resistance thermometer with straight connection cable, stainless steel protection tube"
JUMO Resistance Thermometer with Insertion Mechanism for Temperature Measurements from -50 to +180 °C

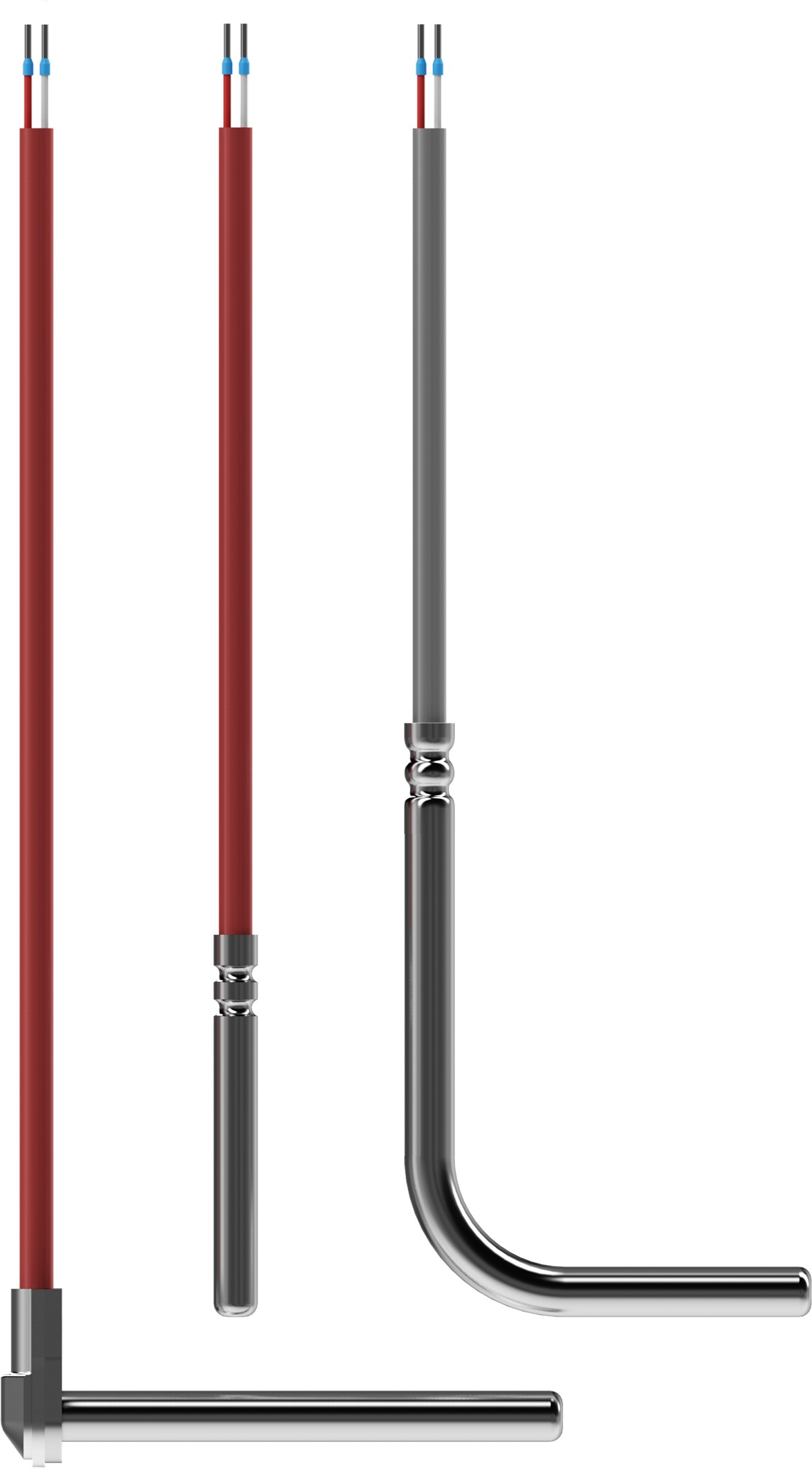

JUMO insertion resistance thermometer with Pt100 and stainless steel protection tube, type: 902150/10-378-1003-1-6-50-11-1500/000
This insertion resistance thermometer is suitable for compact measuring points with limited installation space and short connection distances. Equipped with a Pt100 in a two-wire circuit, a 50 mm insertion length, and a 1500 mm silicone connection cable, this version is designed for precise temperature measurements close to the installation point.
This version is intended for compact measuring points where the sensor does not need to be inserted particularly deep but still has to operate reliably.
Combined with the silicone connection cable, this version is designed for operating temperatures from -50 to +180 °C. This makes it well suited for technical applications in dry and humid environments where classic and reliable temperature measurement is required.
Technical Data
- Measuring insert: 1 x Pt100
- Circuit type: two-wire circuit
- Operating temperature / connection cable: -50 to +180 °C / silicone
- Insertion length: 50 mm
- Note: not suitable for Ø < 6 mm
- Cable length: 1500 mm
Advantages and Technical Features of the JUMO Resistance Thermometer
- 50 mm insertion length for compact installation situations
- 1500 mm connection cable for short and organized cable routing
- Well suited when the sensor and connection point are located close together
- Bend protection and shielding for improved everyday usability
- Robust design with stainless steel protection tube
The cable length is also an important feature of this version. At 1500 mm, the connection cable is intentionally more compact and particularly suitable for installations where the sensor and connection point are located close to each other. This supports clean cable routing and can be especially practical for smaller devices, assemblies, or compact plant sections.
For daily operation, the connection cable is additionally equipped with bend protection and shielding. This helps protect the connection against mechanical stress and possible interference. Especially at measuring points where the sensor is permanently installed and must operate reliably, this is a practical advantage.
The stainless steel protection tube ensures a robust construction and makes this version suitable for many typical temperature measurement tasks in technical environments. The insertion length of 50 mm is not intended for protection tube diameters below 6 mm.
Typical Application Areas
- Compact measuring points in technical devices
- Smaller equipment and assemblies
- Applications with limited installation space
- Measuring points with short to medium connection distances
- Temperature monitoring close to the installation point
- Dry and humid environments
JUMO order code:
A JUMO order code uniquely identifies a specific measuring instrument or component based on its configuration.
You will find the exact JUMO order code for your instrument configuration in the relevant data sheet from page 5 onwards. This can be found under ‘Downloads’ for the product.
Frequently Asked Questions
The insertion depth depends on the model—e.g., 45 mm, 50 mm, or 60 mm.
The temperature range varies depending on the version. For example, the thermometer with part number 802051 measures temperatures from -50°C to +400°C, making it suitable for higher temperature ranges as well.
Yes; thanks to its short installation lengths of 45 mm, 50 mm, and 60 mm, it can be installed even where space is limited.
Yes, it is designed for temperature measurement in both liquid and gaseous media.
The connecting cable is 1.5 meters or 2.5 meters long, making it suitable for many typical installation scenarios.
The metal braid protects the cable during daily use and is suitable for higher temperatures.
Yes; the robust design, featuring a stainless steel protective tube, was developed for technical and industrial applications.
The shielding ensures reliable transmission of the measurement signal, even in technical environments.
Dimensions
| Height | 1 cm |
|---|---|
| Length | 20 cm |
| Width | 15 cm |
Weight
| Weight | 50 g |
|---|
Other attributes
| Anschlussleitung | Silikon |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90251900 |
| Einbaulänge in mm | 50 mm |
| Messeinsatz | 1x Pt 100 Zweileiterschaltung |
| Schutzrohrdurchmesser | 6 mm |
| Temperaturbereich | -50°c ... +180°C |
| Electrical connection | Description |
|---|---|
| Connection element |
Connection cable with stripped bare wire end Connection cable with tinned connecting wires Connection cable with wire end ferrules Connection cable with M12 connector Connection cable with multi-pin connector |
| Permissible ambient temperature of the connection cable | Temperature range |
|---|---|
| PVC | -5 to +80 °C |
| Silicone | -50 bis +180 °C |
| PTFE | -50 to +260 °C |
| Metal braid | -50 to +260 °C |
| Glass silk | -50 to +400 °C |
| Merkmal | Description |
|---|---|
|
Materials Insulation material of the connection cable |
PVC Silicone PTFE Metal braid Glass silk |
| protective tube | Stainless steel |
| connection cable | Strain-relieved |
| protective tube |
Ø 3 mm Ø 4 mm Ø 5 mm Ø 6 mm |
|
Response times Iin water 0,4 m/s In the air 3,0 m/s |
t0,5 ≈ 4 s, t0,9 ≈ 10 s, Ø 6 mm t0,5 ≈ 32 s, t0,9 ≈ 98 s, Ø 6 mm |
| Gauge insert |
DIN EN IEC 60751 1× Pt100 in two-wire configuration 1× Pt100 in three-wire configuration 1× Pt100 in four-wire configuration 1× Pt1000 in two-wire configuration 2× Pt100 in two-wire configuration 2× Pt100 in three-wire configuration 2× Pt1000 in two-wire configuration |
| Tolerance class |
Class B (standard) Class A Class AA |
