Testomat 2000 THCL®

Product number: 100272

Alternatives to this product

Tip
Testomat® LAB TH + LAB CL with NeoTecMaster® - value-added package
Product number: 851064

The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water and the Testomat® LAB CL is a robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).

In view of the fact that the Testomat® LAB TH and Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price.

The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface

€7,342.57*
Testomat® LAB CL and LAB TH instrument combination
Product number: 900520
Pro's
  • Zustzlicher Indikatortyp TH2050 verfgbar
  • CL-Messbereich 0 – 5 mg/l (T2000 CLT hat nur 0 – 2,5 mg/l)
  • SD-Card zur Daten& Messwertaufzeichnung ist bauseitiger Standard
  • Kleinste und preiswerteste Bauform der IST-Wert-Analysengerte zur Einbindung in Multiparameter-Messsysteme
Was kann es nicht?
  • Grenzwertrelais
  • berwachung von 2 Messtellen
  • Keine Zertifizierung fr 72h BOB (WH)
Erforderlicher Leistungsumfang
  • IST-Wert Bestimmung
  • Grenzwertrelais
    (nur umsetzbar mittels NeoTecMaster)
  • Analyse fr Gesamtchlor
Erg&aumnl;nzende Funktionen
  • Displayanzeige fr Messwerte
  • Schutzhaube fr IP 65
  • 4-20mA Messwertbertragung
  • Externe Analysenauslsung (START/STOP-Relais)

€8,384.00*
Product information "Testomat 2000 THCL®"

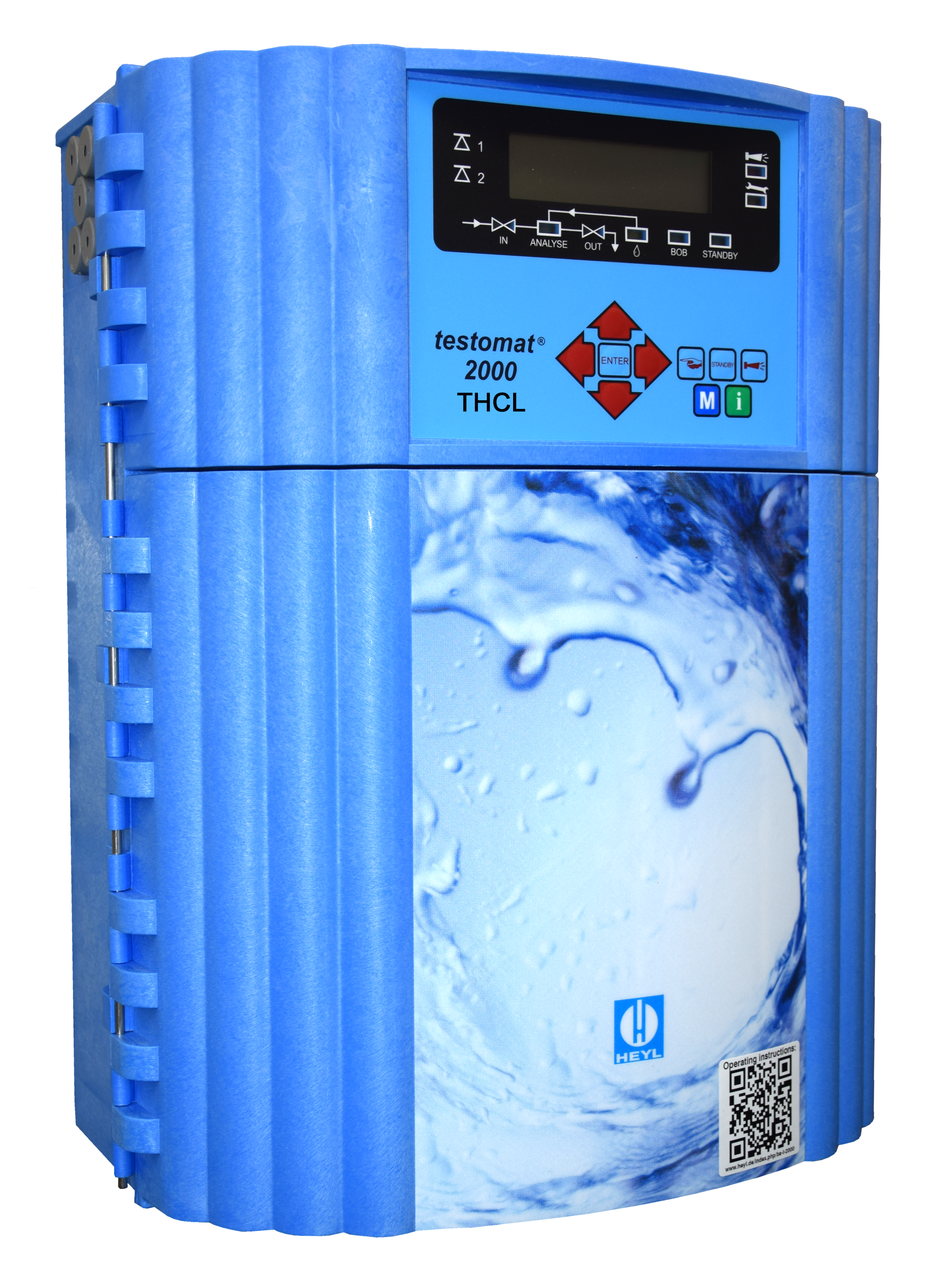

The Testomat 2000 THCL® process photometer determines the total chlorine content according to the colorimetric analysis principle in the range from 0 to 2.5 mg / l (ppm) and the water hardness by titration.

Performance profile:
  • Two independently programmable limit value contacts for monitoring and con trolling tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis
  • (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points
  • (Switching by external solenoid valves)
  • Internal error documentation
  • programmable service address
  • Indicator quantities: 100 and 500 ml bottles
  • Programmable maintenance interval for maintenance request

Weight

Weight 9,5 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10–40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 10,5 kg
Menu Language: German, English, French
Measuring range: Total chlorine: 0.00 – 0.99 ppm (resolution: 0.01 ppm) and 1.0 – 2.5 ppm (resolution: 0.1 ppm) | Water hardness: 4.47 – 44.7 ppm (resolution: 0.05 ppm)

We recommend our indicators and reagents, as well as the following accessories

Testomat® indicator TH 2025 500ml
Product number: 152025
500 ml bottle original Testomat® indicator TH for limit value: 0,25- 2,50°dH for measuring residual hardness.  °dH (resolution): 0,25- 2,50 (0,05) °f (resolution): 0,45-4,48 (0,10) ppm CaCO3 (resolution): 4,48-44,8 (0,9) mmol/l (resolution): 0,04-0,45 (0,01)

€102.20*

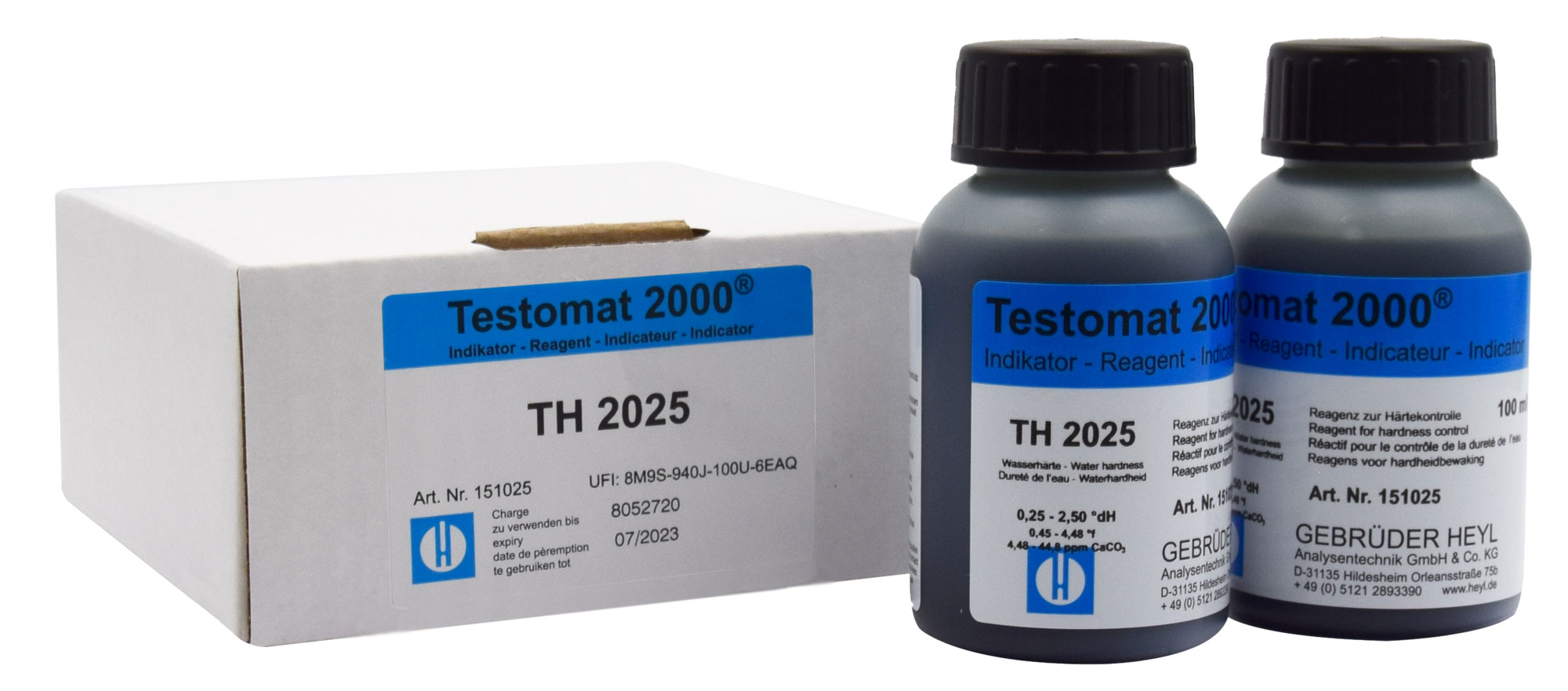

Testomat® indicator TH 2025 2x100ml
Product number: 151025
2x100 ml bottles original Testomat® indicator TH 2025 for limit value: 0,25- 2,50°dH for measuring residual hardness.  °dH (resolution): 0,25- 2,50 (0,05) °f (resolution): 0,45-4,48 (0,10) ppm CaCO3 (resolution): 4,48-44,8 (0,9) mmol/l (resolution): 0,04-0,45 (0,01)

€84.90*
Testomat 2000® Reagent CL2250A 500 ml
Product number: 156230
500 ml-bottles of original Testomat 2000® reagent CL 2250 A can be used immediately in the Testomat 2000®® CLF or CLT.

€104.00*
Testomat 2000® Reagenz CL 2250 B 500 ml
Product number: 156231
500 ml-bottles of original Testomat 2000® reagent CL 2250 B can be used immediately in the Testomat 2000® CLF or CLT.

€202.40*
Testomat 2000® Reagent CL 2250 C 500 ml
Product number: 156232
The 500 ml-bottles of original Testomat 2000® Reagenz CL 2250 C can be used immediately in the instrument without cumbersome filling and refilling. Measuring ranges: Total chlorine: 0,00-0,99 mg/l (Resolution: 0,01 mg/l) 1,0-0-2,5 mg/l (Resolution: 0,1 mg/l)

€295.10*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*
outlet hopper cpl. T2000/ECO
Product number: 40315

€92.60*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€170.80*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€257.10*
Service Set Testomat 2000®/Testoma®t ECO/Titromat®/Testomat® EVO TH
Product number: 270352
Service Set Testomat® Testomat® EVO TH / Testomat ECO®/Titromat®   Content: 1 x gasket kit T2000 2 x sight glass windows 30x3 1 x flow regulator core, complete 3 x cylindrical protection plug with shoulder 5.3dx5 PE 1 x set of valves for the injection pump 1 x filter screen for feed 19.5dx25 3 x different pipes 3 x cleaning brush

€235.00*
Repair and maintenance case T2000/EVO TH/ECO
Product number: 270337
Repair and maintenance case T2000/EVO TH/ECO for professionals Content: 15 x plugs for measuring chamber5 x filter screens for feed 19.5dx252 x springs for feed5 x flow regulator cores, complete10 x O-rings 10.82x1.7810 x O-rings 20x25 x O-rings 4.47x1.785 x O-rings 18x2 EPDM20 x flat gaskets 24x2 EPDM 606 x fuses, G-, 5x20 mm, M4A6 x (solderable) fuses TR5, T 0.2A6 x (solderable) fuses TR5, T 0.315A6 x (solderable) fuses TR5, T 1.0A6 x (solderable) fuses TR5, T 0.1A6 x (solderable) fuses TR5, T 0.08A6 x (solderable) fuses TR5, T0.16 A1 x set of brushes15 x cylindrical protection plugs with shoulders 5.3dx5 natural PE5 x O-rings 4,47x1,785 x O-rings 18x2 EPDM20 x flat seals 24 x 21 x Assortment box Testomat® />10 x inspection glasses, 30x31 x suction hose complete1x pressure hose, complete2 x magnetic stirring cores3 x screw caps with insert1 x table of contents2 x PE D=6, d=4x105 pipes2 x PE D=6, d=4x115 pipes2 x PE D=10, d=8x98 pipes2 x p

€831.00*
maintenance case "professional" for Testomat 2000®/ Testomat ECO®
Product number: 270338
 content:6x #011210 Protection plug to measuring chamber T2000 / ECO4x #011216 O-Ring 20x2, for inlet connection2x #011217 filter strainer for inlet 19,5dx252x #011218 spring for inlet2x #011225 Flow regulator valve complete4x #011249 O-Ring 10,82 x 1,782x #031582 fuse GS-M 5X20 E 4A2x #031584 fuse T 0.2 A, TR 5  RM  5,082x #031585 fuse T 0.315 A, TR 5  RM  5,082x #031592 fuse T 1.0 A, TR 5  RM  5,082x #031595 fuse T 0.1 A, TR 5  RM  5,082x #031596 fuse T 0.08 A, TR 5  RM  5,082x #031622 fuse T 0.16 A, TR 5  RM  5,081x #032287 cleaning brush set2x #033253 screw M3x40, A2, DIN 9652x #033775 O-Ring 4,47 x 1,782x #033776 O-Ring 18x2 EPDM4x #033777 flat gasket 24x2 EPDM 602x #040011 suction hose, cpl.2x #040016 pressure hose, cpl.2x #040040 valve set for jet pump2x #040050 magnetic stirring core1x #040121 inlet connector2x #040131 screw cap with insert T20002x #040141 tube,PE,D=6 d=4x1052x #040142 tube, PE, D=6 d=4x1151x #040153 screw connector G1/4"-62x #040154 plug connector 6-61x #040157 Angled plug-in connector G1/8“-64x #040170 sight glass 30x32x #04022x #040240 pipe, PE, D=10 d=8x98

€802.80*
Service-Kit controller/filter receiver
Product number: 891307
Content: 1 x 40121 inlet connector1 x 40122 outlet connector,PVC1 x 11225 Flow regulator core (1-8 bar)2 x 11216 O-Ring 20x2 (NBR) 1 x 11217 filter strainer for feed 19,5dx251 x 33777 flat gasket 24x2 EPDM 601 x 40153 screw connector G1/4"-61 x 40129 controller plug T2000,cpl.

€177.30*
Service-kit DosiClip
Product number: 891305
Content: 1 x #40011 suction hose, cpl.1 x #40016 pressure hose, cpl.1 x #40040 valve set for jet pump

€239.90*
Service kit for measuring chamber holder + measuring chamber
Product number: 891304
Content: 2 x 40170 sight glass 30x33 x 33777 flat gasket 24x2 EPDM 602 x 33776 O-Ring 18x2 EPDM3 x 11210 Protection plug to measuring chamber T2000 / ECO / EVO TH / EVO TH CAL1 x 40050 Magnetic stirring core

€102.20*
