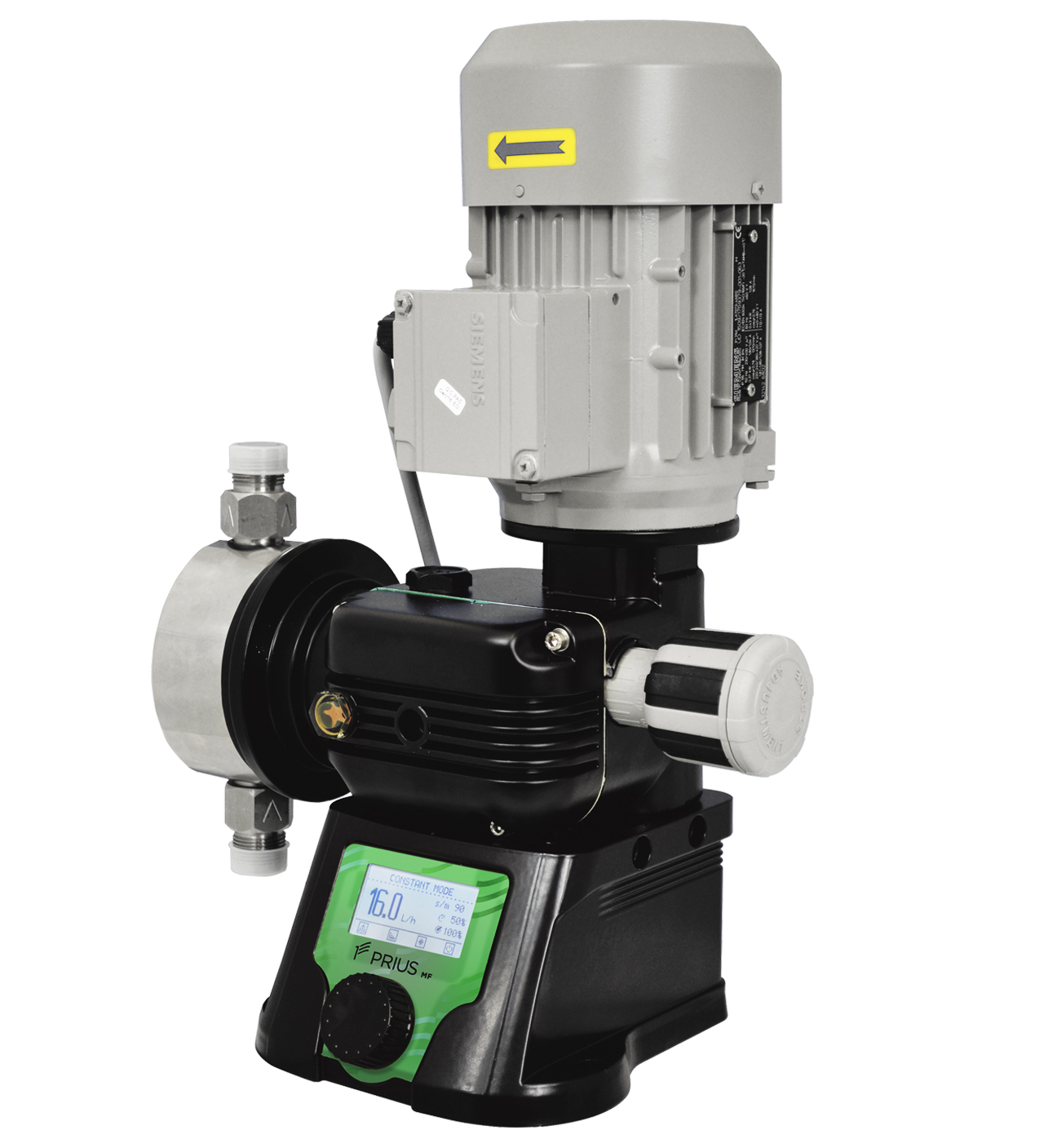

emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm

Product number: 896705

€3,438.00*

Please log in to receive your conditions.

Available in 28 days, delivery time 1-2 days


Product number: 896705
GTIN: 4068823015041
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm"

The PRIUS motorised dosing pumps have a diaphragm and spring return. They combine efficiency and chemical resistance with a wide range of flow rates.

They also offer a choice of different power supply options including 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).


Features

  •        Multifunction pump with single-phase power supply
  •        Operating mode: constant, ppm, %, mlq, pause-work, weekly, pulse, mA, volt and batch
  •        Fill level control
  •        Alarms
  •        Standby
  •        Double position of the electronic unit (standard or rotated position)
  •        PTFE diaphragm
  •        Aluminium housing
  •        Spring return
  •        Manual venting of the pump body (PVDF and PP)
  •        Mechanical stroke adjustment
  •        Hydraulic parts available in various sizes and materials
  •        Valves with double ball
  •        Tropicalised motors
  •        MODBUS option


Dimensions

Height 50 cm
Width 40 cm

Weight

Weight 16 kg

Other attributes

Country of origin IT
Customs tariff number 84135040
Technical data

Technical data:

  •        Dosing accuracy ± 5% at nominal pressure
  •        Power supply 230 VAC (+/- 10%) -50/60 Hz
  •        Room operating temperature -10 ÷ 40 °C (14 ÷ 104 °F)
  •        Additive temperature with PVDF pump body -10 ÷ 65 °C (14 ÷ 149 °F)*
  •        Additive temperature with SS (stainless steel) pump body -10 ÷ 90 °C (14 ÷ 194 °F)*
  •        Additive temperature with PP pump body -10 ÷ 40 °C (14 ÷ 104 °F)
  •        Packaging temperature and packaging 10 ÷ 50 °C (32 ÷ 122 °F)
  •        Installation class II
  •        Pollution degree 2
  •        Audible noise 78 dbA ( ± 5 dB)
  •        Protection class P 55
  •        Max. Max. height of suction hose 3 metres
  •        Oil capacity 0.3 litres
