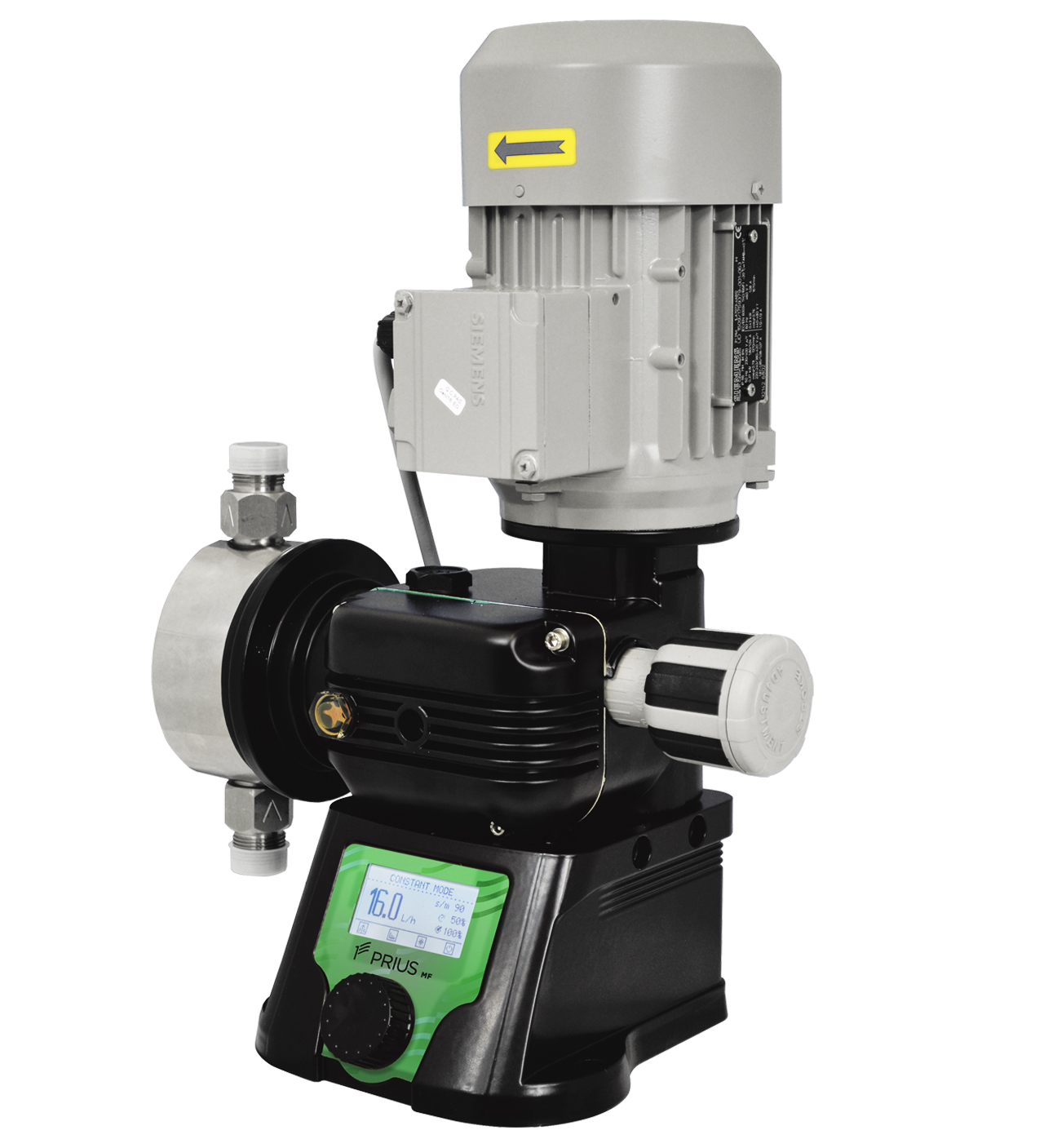

emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm
€3,817.00*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Product information "emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm"
The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).
Outputs:
- 1000 l/h
- 100 bar
Power supply:
- 380 VAC
- 220 VAC
- 115 VAC
Vent pipe:
- Manual
- Automatic
Features
- Horizontal mounting
- Aluminium housing
- Spring return mechanism
- Double ball valves (if available)
- Mechanical stroke adjustment
- Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
- Hydraulic parts available in various sizes and materials
- Tropicalised motor
Installation:
- Installation kit A included
- Installation kit B and C sold separately
- The pump with AISI316L pump body does not include installation accessories
Dimensions
| Height | 40 cm |
|---|---|
| Length | 50 cm |
| Width | 50 cm |
Weight
| Weight | 16 kg |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84135040 |
Downloads:
|
Prius D MF |
|
|
Electric |
|
|
Power supply |
220-240 VAC – 50 Hz |
|
Power |
0,18/0,37/0,55 KW (depending on the performance of the pump) |
|
Fuse |
6,3 A |
|
Alarm output, potential-free |
230 VAC – 1A max. Switching capacity |
|
Installation class |
II |
|
Noise level |
78 dbA (+5dB) |
|
Class |
IP 55 (Option IP65) |
|
Materials |
|
|
Membrane |
PTFE |
|
Case |
Aluminium, epoxy-coated |
|
Dosierkopf |
PVDF, PP, PVC or Edelstahl (AISI 316L) |
|
Mechanical |
|
|
Mechanism with return spring |
|
|
Ventilation |
Manual for PVDF and PP dosing heads |
|
Check valve with two balls |
|
|
Flow Control |
|
|
Ambient temperature |
-10 – 40 °C |
|
Dosing medium temperature with PVDF pump head |
-10 – 40°C |
|
Dosing medium temperature with SS pump head |
-10 – 90 °C |
|
Dosing medium temperature with PP pump head |
-10 – 40°C |
|
Maximum suction height |
3 m |
|
Quantity of transmission oil |
0,3 l |
