The JUMO "Heavy Duty" pH electrode records the pH value of water and aqueous media. The rugged industrial electrode is designed for the most demanding applications with increased dirt and toxic loads as well as oily media.Advantages:stable and reliable measured values low maintenance and robustextended service lifeSelected version:without temperature sensorS8 N-srew head Pg13,5, PPS materialPTFE ring diaphragmInsertion length 120mm (standard)Type code (can also be found on your electrode): 201021/10-12-04-18-120/841Features: for industrial applications; also in heavy-duty and hygienic version for demanding processes; integrated temperature sensorApplication range:  process measurement; high temperature applications; suspensions; electroplating; lacquers; waste water; ultrapure water; water; always contaminated media; hygienic and sterile applications; boiler feed water If you require other versions of this electrode, please use our configurator and configure the suitable electrode for you. You can download the JUMO data sheet just below our text. You will find our configurator on page 6 of the data sheet. Please note that the delivery time for freely configured electrodes is 5 to 6 weeks.

The JUMO "Heavy Duty" pH electrode records the pH value of water and aqueous media. The rugged industrial electrode is designed for the most demanding applications with increased dirt and toxic loads as well as oily media.Advantages:stable and reliable measured values low maintenance and robustextended service lifeSelected version:PT1000 temperature sensorVarioPin electrode head (always required for versions with temperature sensor)PTFE ring diaphragmInsertion length 120mm (standard)Type code (can also be found on your electrode): 201021/10-12-04-18-120/841Features: for industrial applications; also in heavy-duty and hygienic version for demanding processes; integrated temperature sensorApplication range:  process measurement; high temperature applications; suspensions; electroplating; lacquers; waste water; ultrapure water; water; always contaminated media; hygienic and sterile applications; boiler feed water If you require other versions of this electrode, please use our configurator and configure the suitable electrode for you. You can download the JUMO data sheet just below our text. You will find our configurator on page 6 of the data sheet. Please note that the delivery time for freely configured electrodes is 5 to 6 weeks.

The JUMO "Heavy Duty" pH electrode records the pH value of water and aqueous media. The rugged industrial electrode is designed for the most demanding applications with increased dirt and toxic loads as well as oily media.Advantages:stable and reliable measured values low maintenance and robustextended service lifeSelected version:PT100 temperature sensorVarioPin electrode head (always required for versions with temperature sensor)PTFE ring diaphragmInsertion length 120mm (standard)Type code (can also be found on your electrode): 201021/10-12-04-18-120/840Features: for industrial applications; also in heavy-duty and hygienic version for demanding processes; integrated temperature sensorApplication range:  process measurement; high temperature applications; suspensions; electroplating; lacquers; waste water; ultrapure water; water; always contaminated media; hygienic and sterile applications; boiler feed water If you require other versions of this electrode, please use our configurator and configure the suitable electrode for you. You can download the JUMO data sheet just below our text. You will find our configurator on page 6 of the data sheet. Please note that the delivery time for freely configured electrodes is 5 to 6 weeks.

Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.

Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.

pH/ORP electrodes with glass shaft:Selected version: ORP ±2000 mV without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series) Screw head S8 Pg13.5 Ceramic diaphragm Installation length 120mm (standard) Type code (can also be found on your electrode): 201010/51-22-22-0000-00-120/000 ; part no. 00413906 The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favourable price/performance ratio.Active part pH:JUMO ecoLine electrodes  are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.Active part redox:A robust platinum tip provides reliable measured values and allows easy cleaning of the sensor.Reference system:A polymerised KCl solid electrolyte is used in the glass version. This is ideally suited for measurement in general aqueous media. aqueous media. For measurements in media with lower ion content or at high flow rates, the electrolyte can be the electrolyte can be equipped with an optional "salt reservoir" to increase the service life (if wished, please use our configurator). The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor. and therefore less susceptible to electrode poisons.Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended for sporadic use of the sensor, for refreshing the sensor after longer, intensive use or for longer storage periods.All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming pool - Aquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended for:galvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

pH/ORP electrodes with glass shaft:Selected version: pH 0 to 12, short term pH 14without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series) Screw head S8 Pg13.5 Ceramic diaphragm Installation length 120mm (standard) Type code (can also be found on your electrode): 201005/51-18-60-1000-76-120/000 ; part no. 00459671The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favourable price/performance ratio.Active part pH:JUMO ecoLine electrodes  are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.Active part redox:A robust platinum tip provides reliable measured values and allows easy cleaning of the sensor.Reference system:A polymerised KCl solid electrolyte is used in the glass version. This is ideally suited for measurement in general aqueous media. aqueous media. For measurements in media with lower ion content or at high flow rates, the electrolyte can be the electrolyte can be equipped with an optional "salt reservoir" to increase the service life (if wished, please use our configurator). The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor. and therefore less susceptible to electrode poisons.Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended for sporadic use of the sensor, for refreshing the sensor after longer, intensive use or for longer storage periods.All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming pool - Aquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended for:galvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

pH/ORP electrodes with glass shaft:Selected version: pH 0 to 12, short term pH 14without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series) Screw head S8 Pg13.5 Ceramic diaphragm Installation length 120mm (standard) Type code (can also be found on your electrode): 201005/51-18-22-0000-00-120/000 ,part no. 00405532 The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favourable price/performance ratio.Active part pH:JUMO ecoLine electrodes  are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.Active part redox:A robust platinum tip provides reliable measured values and allows easy cleaning of the sensor.Reference system:A polymerised KCl solid electrolyte is used in the glass version. This is ideally suited for measurement in general aqueous media. aqueous media. For measurements in media with lower ion content or at high flow rates, the electrolyte can be the electrolyte can be equipped with an optional "salt reservoir" to increase the service life (if wished, please use our configurator). The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor. and therefore less susceptible to electrode poisons.Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended for sporadic use of the sensor, for refreshing the sensor after longer, intensive use or for longer storage periods.All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming pool - Aquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended for:galvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

The JUMO "Heavy Duty" pH electrode records the pH value of water and aqueous media. The rugged industrial electrode is designed for the most demanding applications with increased dirt and toxic loads as well as oily media.Advantages:stable and reliable measured values low maintenance and robustextended service lifeFeatures: for industrial applications; also in heavy-duty and hygienic version for demanding processes; integrated temperature sensorApplication range:  process measurement; high temperature applications; suspensions; electroplating; lacquers; waste water; ultrapure water; water; always contaminated media; hygienic and sterile applications; boiler feed water Use our configurator created for you and configure yourself the suitable electrode. You can download the JUMO data sheet just below our text. You will find our configurator on page 6 of the data sheet.

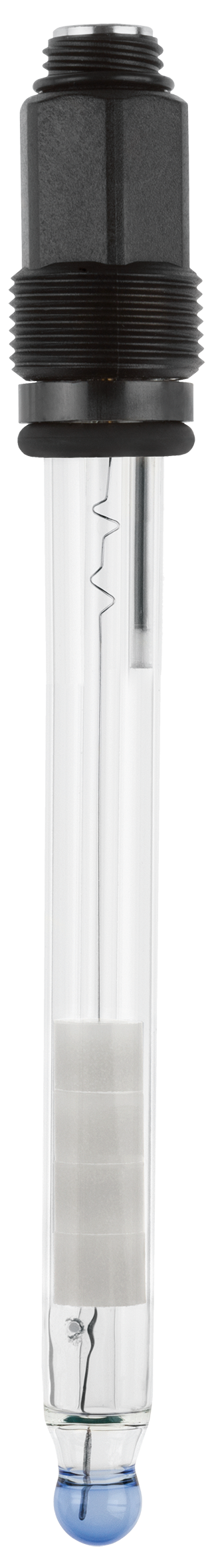

Version: 201020/51-18-04-22-120/837 ; glass shaft, UW glass, PTFE ring diaphragm, screw head Pg 13.5 (S8), 120mm, salt reservoir Parts No. 321035

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is for swimming pools and industrial water treatment systems suitable.

This electrode is suitable for swimming pools, water treatment, drinking water, boiler feed water and municipal sewage treatment plants. Platium - ElectrodeGold - Electrode

This electrode is suitable for higher demands on chemical resistance and temperature. They find their area of application in industrial and in general laboratory applications.

This electrode is available as an inexpensive solution as well as with a double diaphragm for higher temperature resistance. It is suitable for general laboratory applications, pH & chlorine in swimming pools & whirlpools.

This electrode is suitable for use in plants and crops monitoring. It is a refillable laboratory electrode for standard applications and a simple diaphragm.

This electrode is for swimming pools and industrial water treatment systems suitable.

This electrode is suitable for swimming pools, water treatment, drinking water, boiler feed water and municipal sewage treatment plants.
