JUMO eTRON T100 - electronic thermostat with timer function for mounting on 35 mm top-hat rails Typ: 701052/8-01-31-00/000  Version: Standard with factory settings  Input: resistance thermometer Pt100, Pt1000, KTY2X-6  Power supply: DC 12 to 24 V +15/-15 % / AC 230 V +10/-15%, 48 to 63 Hz  Option: none  Extra code: without  Available in 5 different measuring groups  Intuitive operation and configuration both directly on the device and via the setup programme using the USB interface  User area with 8 adjustable parameters  Data logger functionality for recording measurement data  Dot matrix display with 64 x 80 pixels and support for 4 national languages  Service and operating hours counter for monitoring device utilisation  Connection via PCB terminals with push-in technology for easy installation  Use of 10A relays (changeover contacts) for reliable switching  Option for customer-specific linearisation of the measurement results in the setup program  Limit value monitoring for precise control and monitoring of processes  Timer function for time-controlled execution of actions The digital thermostat measures the temperature using resistance thermometers, thermocouples or a current of 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the selected mode. The thermostat function (heating or cooling) can be started or limited in time using the timer function. The switching states of the relay and digital output, as well as the actual and setpoint values, are shown simultaneously on a backlit display with a resolution of 64 x 80 pixels. The display language can be switched between German, English, French and Spanish. It is operated via four buttons on the front, while the electrical connection is made via print terminals with push-in technology. PhotoMOS® relays for limit value monitoring or a digital input for connecting a potential-free contact can be added as an option. A setup programme is available for easy configuration.

JUMO eTRON T100 - electronic thermostat with timer function for mounting on 35 mm top-hat rails Typ: 701052/8-02-02-00/000  Version: Standard with factory settings  Input: Thermocouple  Power supply: AC 230 V +10/-15%, 48 to 63 Hz  Option: Digital output PhotoMOS ® relay (connection of resistance thermometers in three-wire circuit is not possible)  Extra code: without  Available in 5 different measuring groups  Intuitive operation and configuration both directly on the device and via the setup programme using the USB interface  User area with 8 adjustable parameters  Data logger functionality for recording measurement data  Dot matrix display with 64 x 80 pixels and support for 4 national languages  Service and operating hours counter for monitoring device utilisation  Connection via PCB terminals with push-in technology for easy installation  Use of 10A relays (changeover contacts) for reliable switching  Option for customer-specific linearisation of the measurement results in the setup program  Limit value monitoring for precise control and monitoring of processes  Timer function for time-controlled execution of actions The digital thermostat measures the temperature using resistance thermometers, thermocouples or a current of 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the selected mode. The thermostat function (heating or cooling) can be started or limited in time using the timer function. The switching states of the relay and digital output, as well as the actual and setpoint values, are shown simultaneously on a backlit display with a resolution of 64 x 80 pixels. The display language can be switched between German, English, French and Spanish. It is operated via four buttons on the front, while the electrical connection is made via print terminals with push-in technology. PhotoMOS® relays for limit value monitoring or a digital input for connecting a potential-free contact can be added as an option. A setup programme is available for easy configuration.

JUMO eTRON T100 - electronic thermostat with timer function for mounting on 35 mm top-hat rails Typ: 701052/8-02-31-00/000  Version: Standard with factory settings  Input: Thermocouple  Power supply: DC 12 to 24 V +15/-15% / AC 230 V +10/-15%, 48 to 63 Hz  Option: Digital output PhotoMOS ® relay (connection of resistance thermometers in three-wire circuit is not possible)  Extra code: without  Available in 5 different measuring groups  Intuitive operation and configuration both directly on the device and via the setup programme using the USB interface  User area with 8 adjustable parameters  Data logger functionality for recording measurement data  Dot matrix display with 64 x 80 pixels and support for 4 national languages  Service and operating hours counter for monitoring device utilisation  Connection via PCB terminals with push-in technology for easy installation  Use of 10A relays (changeover contacts) for reliable switching  Option for customer-specific linearisation of the measurement results in the setup program  Limit value monitoring for precise control and monitoring of processes  Timer function for time-controlled execution of actions The digital thermostat measures the temperature using resistance thermometers, thermocouples or a current of 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the selected mode. The thermostat function (heating or cooling) can be started or limited in time using the timer function. The switching states of the relay and digital output, as well as the actual and setpoint values, are shown simultaneously on a backlit display with a resolution of 64 x 80 pixels. The display language can be switched between German, English, French and Spanish. It is operated via four buttons on the front, while the electrical connection is made via print terminals with push-in technology. PhotoMOS® relays for limit value monitoring or a digital input for connecting a potential-free contact can be added as an option. A setup programme is available for easy configuration.

JUMO eTRON T100 - electronic thermostat with timer function for mounting on 35 mm top-hat rails Typ: 701052/8-03-02-00/000  Version: Standard with factory settings  Input: 0(4) bis 20mA  Power supply: AC 230 V +10/-15%, 48 to 63 Hz  Option: without  Extra code: without  Available in 5 different measuring groups  Intuitive operation and configuration both directly on the device and via the setup programme using the USB interface  User area with 8 adjustable parameters  Data logger functionality for recording measurement data  Dot matrix display with 64 x 80 pixels and support for 4 national languages  Service and operating hours counter for monitoring device utilisation  Connection via PCB terminals with push-in technology for easy installation  Use of 10A relays (changeover contacts) for reliable switching  Option for customer-specific linearisation of the measurement results in the setup program  Limit value monitoring for precise control and monitoring of processes  Timer function for time-controlled execution of actions The digital thermostat measures the temperature using resistance thermometers, thermocouples or a current of 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the selected mode. The thermostat function (heating or cooling) can be started or limited in time using the timer function. The switching states of the relay and digital output, as well as the actual and setpoint values, are shown simultaneously on a backlit display with a resolution of 64 x 80 pixels. The display language can be switched between German, English, French and Spanish. It is operated via four buttons on the front, while the electrical connection is made via print terminals with push-in technology. PhotoMOS® relays for limit value monitoring or a digital input for connecting a potential-free contact can be added as an option. A setup programme is available for easy configuration.

JUMO meroVIEW - Multifunction digital indicator with PLC function Typ: 701553/8-00-00-00-00-00-00-23/000  Version: Standard with factory settings  Power supply: AC 10 to 240 V +10/-15% / 48 to 63 Hz  Extra code: without  Option1-6: not assigned  1 analogue input  1 digital input  1 digital input/output switchable  1 relay (NO contact)  2 timers  Min/max display  Hold function  Tare function The display series comprises four universally applicable devices in various DIN formats, which are used to display temperature, pressure and other process variables.The devices offer user-friendly operation with a clearly structured layout and text support. Process values and parameters are displayed on two 18-segment LCD displays. Types 701552, 701553 and 701554 also have a pixel matrix LCD display for displaying texts. Additional display elements provide information about the switching positions of the outputs and certain functions such as timers. The devices are operated via a membrane keypad with 4 buttons and can also be used in demanding environments thanks to their high IP65 protection rating.The basic equipment already includes a min/max value display, hold function, temperature function, limit value monitoring, digital control signals, extensive timer functions and a service counter. Optionally, the devices can be extended with a maths and logic function as well as with ST code functionality to realise customer-specific functions. The ST code functionality also allows direct access to the display and operating buttons, which enables customised device operation. Inputs and outputsEach device type is equipped with a universal analogue input that is suitable for resistance thermometers, thermocouples, current, voltage, resistance transmitters and resistance/potentiometers. Each device also has a digital input, a switchable digital input/output and two relay outputs (NO contact 3 A). The digital inputs are intended for the connection of a potential-free contact, while the digital output supplies a logic signal of 0/14 V.The optional digital outputs with 0/14 V (not galvanically isolated) can be used, for example, to control solid-state relays. Alternatively, the optional digital outputs with 0/22 V and galvanic isolation can also be used as a voltage supply for two-wire transmitters.Please note that certain inputs and outputs cannot be used simultaneously (see notes in the wiring diagram). Customer-specific linearisationIndividual linearisation according to customer requirements also makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup program either using your value table with up to 40 value pairs or using a formula (4th order polynomial). The device supports 2 customer-specific linearisations. Counting inputsThe device can optionally be equipped with up to 4 counting inputs, with a maximum counting frequency of 12.5 kHz. Each counting input can be controlled either with a digital signal of 0/24 V or via a potential-free contact. The counters allow the following functions to be configured:  Counting of pulses  Calculation of frequency  speed  Speed (volume per time unit)  Flow rate (volume per time unit) In addition, individual functions can be implemented via maths functions or ST code, such as the calculation of the total flow rate (volume) Signal assignment via selectorsThe input signals and all internal signals are available in so-called selectors (analogue selector, digital selector) for further use in the device. The control signals for the outputs are also assigned via selectors, which enables flexible assignment of signals and functions. USB interfacesThe device has a USB device interface (Micro-B socket on the rear), which is intended exclusively for connection to a PC for use with the setup programme. There is also a USB host interface (type A socket), which is located on the rear of the 108 and 104 format devices and on the side of the smaller 116 format device. This interface is intended for connecting a USB memory stick in order to carry out firmware updates, read out data loggers and transfer the device configuration. RS485 interfaceThe RS485 interface is available as an option and supports the Modbus RTU protocol. It can be used in both master and slave mode. Ethernet interfaceThe Ethernet interface (Modbus TCP) is optional and enables parallel communication with 2x mater or 2x slave. It is used for integration into a company network, the transfer of process values and communication with the setup programme. PROFINET interfaceThe device can optionally be equipped with a PROFINET interface in order to be integrated into a PROFINET network as an IO device. A GSD file (GSDML) is available for the programming system of the IO controller, which describes the properties of the device. It should be noted that the standard Ethernet services are not supported via the PROFINET interface. If the device is equipped with the PROFINET interface, neither the Ethernet nor the RS485 interface can be used. Power supplyThe device is available in two power supply variants: AC 110 to 240 V or AC/DC 24 V (see Technical data). Electrical connectionThe electrical connection is time-saving with removable spring-loaded terminals (PushIn technology). Min-max functionWhen the min-max function is activated, both the minimum and maximum values of the indicator are saved and continuously updated. These values can be displayed separately or alternating with the current value. In the alternating display (scrolling), the min/max symbol is active while either the minimum or maximum value is displayed. A binary signal can be used to reset the stored values in order to return to the current value. Hold functionThe hold function "freezes" the value of the indicator, which means that this value is displayed as long as the controlling binary signal is active. Tare functionThe tare function makes it possible to set the value of the indicator to zero, controlled by a binary signal (for weighing applications). The currently displayed value is added to the tare value each time. Another binary signal can be used to reset the tare value to zero so that the current value appears on the display again. Limit value monitoringThe device is equipped with 8 limit value monitors, each of which has 8 configurable alarm functions. Any analogue signal is selected from a selector for monitoring, while the limit value can either be an absolute value or dependent on another analogue signal. It offers special functions such as  On/off delay  Wiper function  Alarm suppression during the switch-on phase or in the event of parameter changes Alarm latching  Latching with acknowledgement Limit value monitoring enables a variety of alarm and limit value functions. Digital control signalsThis function enables the configuration of up to 8 digital control signals. The control signal is either formed by an AND/OR/XOR combination of up to three selectable binary signals or a single binary signal is used as an input signal and can be output as a pulsed signal, delayed signal, wiper signal or edge-triggered signal. In the latter case, the rising or falling edge of the binary signal is determined and the output signal is activated for the duration of a sampling interval. The output signal can be inverted in all these cases. TimerThe device is also equipped with 2 timers that can be started via freely selectable digital signals or depending on an integrated tolerance band monitoring function. Lead and lag times as well as a self-hold function with acknowledgement are also available. This makes it easy to realise a wide range of functions such as time-controlled regulation or setpoint switching. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Maths and logic functionThe optional maths and logic function (extra code) can be used to link analogue or binary values. Up to four freely configurable maths or logic formulas can be created using the setup program. The results are then available for further use in the analogue or digital selector. Structured textThe "Structured text" option (extra code) allows the user to develop a customised application. This application is created using the ST editor, which is part of the setup programme, and uses the "Structured text" PLC programming language. Once completed, the application is transferred to the device and executed continuously. Online debugger functions are available in the ST editor for troubleshooting and testing.With the setup programme, the user can also create up to 100 individual texts and have them shown on the device display by a corresponding application. These texts can be entered in four languages so that they are displayed in the respective language after changing the device language. Data loggerThe data logger enables the recording of 4 analogue and 4 binary values. The recording interval is adjustable and ranges from 1 minute to 1 hour. Recording is based on the ring memory principle, which means that older data is overwritten as soon as the memory is full. With a recording interval of 10 minutes, the data can be recorded for around 2 years before the oldest data is overwritten. A USB memory stick on which the data is stored in CSV format is used to read out the data. Real-time clockThe real-time clock provides the current date and time (time stamp for data logger and ST code). Retain memoryThanks to the integrated retain memory, specific data is retained even in the event of a power failure. This applies to the service data, the counter and timer data as well as the retain data of the ST code. Individually configurable operating levelsThe user has the option of customising the device menu to ensure a high level of operating convenience and optimum integration into the system. Four menu levels with submenus are available for this purpose. The menu items and parameters can be labelled individually in four languages, and it is possible to switch between them. The menu levels can be partially or completely locked to prevent unauthorised operation. Setup programmeThe setup programme is essential for commissioning the device and is available to download free of charge. In addition to the individual set-up of the operating levels, whose parameters can subsequently be edited in the device, the setup programme offers the user a simple and user-friendly method of configuring the device using a PC. With the setup programme, data records can be created, edited, transferred to the device and read out from there. The data can be saved and printed out. The programme also allows the user to easily create and print out a connection diagram showing the current terminal assignment of the device. Startup: The startup function enables the recording of process variables during commissioning for a maximum of 24 hours. The recorded diagrams are available on the PC and can be used for system documentation, for example. Online data: The current process variables of the device are displayed in a separate window. Firmware update The device's firmware can be updated in a user-friendly way using a USB memory stick; the file is provided by the manufacturer if required.

JUMO meroVIEW - Multifunction digital indicator with PLC function Typ: 701553/8-00-00-00-00-00-00-42/000  Version: Standard with factory settings  Power supply: AC/DC 24V +10/-15% / 48 bis 63 Hz  Extra code: without  Option1-6: not assigned  1 analogue input  1 digital input  1 digital input/output switchable  1 relay (NO contact)  2 timers  Min/max display  Hold function  Tare function The display series comprises four universally applicable devices in various DIN formats, which are used to display temperature, pressure and other process variables.The devices offer user-friendly operation with a clearly structured layout and text support. Process values and parameters are displayed on two 18-segment LCD displays. Types 701552, 701553 and 701554 also have a pixel matrix LCD display for displaying texts. Additional display elements provide information about the switching positions of the outputs and certain functions such as timers. The devices are operated via a membrane keypad with 4 buttons and can also be used in demanding environments thanks to their high IP65 protection rating.The basic equipment already includes a min/max value display, hold function, temperature function, limit value monitoring, digital control signals, extensive timer functions and a service counter. Optionally, the devices can be extended with a maths and logic function as well as with ST code functionality to realise customer-specific functions. The ST code functionality also allows direct access to the display and operating buttons, which enables customised device operation. Inputs and outputsEach device type is equipped with a universal analogue input that is suitable for resistance thermometers, thermocouples, current, voltage, resistance transmitters and resistance/potentiometers. Each device also has a digital input, a switchable digital input/output and two relay outputs (NO contact 3 A). The digital inputs are intended for the connection of a potential-free contact, while the digital output supplies a logic signal of 0/14 V.The optional digital outputs with 0/14 V (not galvanically isolated) can be used, for example, to control solid-state relays. Alternatively, the optional digital outputs with 0/22 V and galvanic isolation can also be used as a voltage supply for two-wire transmitters.Please note that certain inputs and outputs cannot be used simultaneously (see notes in the wiring diagram). Customer-specific linearisationIndividual linearisation according to customer requirements also makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup program either using your value table with up to 40 value pairs or using a formula (4th order polynomial). The device supports 2 customer-specific linearisations. Counting inputsThe device can optionally be equipped with up to 4 counting inputs, with a maximum counting frequency of 12.5 kHz. Each counting input can be controlled either with a digital signal of 0/24 V or via a potential-free contact. The counters allow the following functions to be configured:  Counting of pulses  Calculation of frequency  speed  Speed (volume per time unit)  Flow rate (volume per time unit) In addition, individual functions can be implemented via maths functions or ST code, such as the calculation of the total flow rate (volume) Signal assignment via selectorsThe input signals and all internal signals are available in so-called selectors (analogue selector, digital selector) for further use in the device. The control signals for the outputs are also assigned via selectors, which enables flexible assignment of signals and functions. USB interfacesThe device has a USB device interface (Micro-B socket on the rear), which is intended exclusively for connection to a PC for use with the setup programme. There is also a USB host interface (type A socket), which is located on the rear of the 108 and 104 format devices and on the side of the smaller 116 format device. This interface is intended for connecting a USB memory stick in order to carry out firmware updates, read out data loggers and transfer the device configuration. RS485 interfaceThe RS485 interface is available as an option and supports the Modbus RTU protocol. It can be used in both master and slave mode. Ethernet interfaceThe Ethernet interface (Modbus TCP) is optional and enables parallel communication with 2x mater or 2x slave. It is used for integration into a company network, the transfer of process values and communication with the setup programme. PROFINET interfaceThe device can optionally be equipped with a PROFINET interface in order to be integrated into a PROFINET network as an IO device. A GSD file (GSDML) is available for the programming system of the IO controller, which describes the properties of the device. It should be noted that the standard Ethernet services are not supported via the PROFINET interface. If the device is equipped with the PROFINET interface, neither the Ethernet nor the RS485 interface can be used. Power supplyThe device is available in two power supply variants: AC 110 to 240 V or AC/DC 24 V (see Technical data). Electrical connectionThe electrical connection is time-saving with removable spring-loaded terminals (PushIn technology). Min-max functionWhen the min-max function is activated, both the minimum and maximum values of the indicator are saved and continuously updated. These values can be displayed separately or alternating with the current value. In the alternating display (scrolling), the min/max symbol is active while either the minimum or maximum value is displayed. A binary signal can be used to reset the stored values in order to return to the current value. Hold functionThe hold function "freezes" the value of the indicator, which means that this value is displayed as long as the controlling binary signal is active. Tare functionThe tare function makes it possible to set the value of the indicator to zero, controlled by a binary signal (for weighing applications). The currently displayed value is added to the tare value each time. Another binary signal can be used to reset the tare value to zero so that the current value appears on the display again. Limit value monitoringThe device is equipped with 8 limit value monitors, each of which has 8 configurable alarm functions. Any analogue signal is selected from a selector for monitoring, while the limit value can either be an absolute value or dependent on another analogue signal. It offers special functions such as  On/off delay  Wiper function  Alarm suppression during the switch-on phase or in the event of parameter changes Alarm latching  Latching with acknowledgement Limit value monitoring enables a variety of alarm and limit value functions. Digital control signalsThis function enables the configuration of up to 8 digital control signals. The control signal is either formed by an AND/OR/XOR combination of up to three selectable binary signals or a single binary signal is used as an input signal and can be output as a pulsed signal, delayed signal, wiper signal or edge-triggered signal. In the latter case, the rising or falling edge of the binary signal is determined and the output signal is activated for the duration of a sampling interval. The output signal can be inverted in all these cases. TimerThe device is also equipped with 2 timers that can be started via freely selectable digital signals or depending on an integrated tolerance band monitoring function. Lead and lag times as well as a self-hold function with acknowledgement are also available. This makes it easy to realise a wide range of functions such as time-controlled regulation or setpoint switching. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Maths and logic functionThe optional maths and logic function (extra code) can be used to link analogue or binary values. Up to four freely configurable maths or logic formulas can be created using the setup program. The results are then available for further use in the analogue or digital selector. Structured textThe "Structured text" option (extra code) allows the user to develop a customised application. This application is created using the ST editor, which is part of the setup programme, and uses the "Structured text" PLC programming language. Once completed, the application is transferred to the device and executed continuously. Online debugger functions are available in the ST editor for troubleshooting and testing.With the setup programme, the user can also create up to 100 individual texts and have them shown on the device display by a corresponding application. These texts can be entered in four languages so that they are displayed in the respective language after changing the device language. Data loggerThe data logger enables the recording of 4 analogue and 4 binary values. The recording interval is adjustable and ranges from 1 minute to 1 hour. Recording is based on the ring memory principle, which means that older data is overwritten as soon as the memory is full. With a recording interval of 10 minutes, the data can be recorded for around 2 years before the oldest data is overwritten. A USB memory stick on which the data is stored in CSV format is used to read out the data. Real-time clockThe real-time clock provides the current date and time (time stamp for data logger and ST code). Retain memoryThanks to the integrated retain memory, specific data is retained even in the event of a power failure. This applies to the service data, the counter and timer data as well as the retain data of the ST code. Individually configurable operating levelsThe user has the option of customising the device menu to ensure a high level of operating convenience and optimum integration into the system. Four menu levels with submenus are available for this purpose. The menu items and parameters can be labelled individually in four languages, and it is possible to switch between them. The menu levels can be partially or completely locked to prevent unauthorised operation. Setup programmeThe setup programme is essential for commissioning the device and is available to download free of charge. In addition to the individual set-up of the operating levels, whose parameters can subsequently be edited in the device, the setup programme offers the user a simple and user-friendly method of configuring the device using a PC. With the setup programme, data records can be created, edited, transferred to the device and read out from there. The data can be saved and printed out. The programme also allows the user to easily create and print out a connection diagram showing the current terminal assignment of the device. Startup: The startup function enables the recording of process variables during commissioning for a maximum of 24 hours. The recorded diagrams are available on the PC and can be used for system documentation, for example. Online data: The current process variables of the device are displayed in a separate window. Firmware update The device's firmware can be updated in a user-friendly way using a USB memory stick; the file is provided by the manufacturer if required.

JUMO miro TRON - electronic thermostat with PID two-point controller option Typ: 701081/0-01-24-02/000  Input: 1 resistance thermometer Pt100, Pt1000 in two-wire circuit, 1 digital input  Output: 4 relays (NO contact AC 250 V, 2.5 A), resistive load, only for type 701081  Power supply: AC 230 V, +10/-15 %, 48 to 63 Hz  With max. 4 relays  Version: Standard version  Extra code: without The electronic thermostat is used as a heating or cooling thermostat, but can be optionally extended with a PID two-point controller option. The device offers user-friendly operation, characterised by a clear structure and supporting texts in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information on the switching positions of the outputs, the status of the timer and the temperature unit used. PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. PID two-point controller (optional)If the PID two-point controller option is selected, various controller structures are available, including P, I, PH, PI and PID, which also enable self-optimisation. In addition, the setup programme offers a start-up function and a display of the online parameters. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket, which is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made in a time-saving manner using spring-loaded terminals (push-in technology) Self-optimisation  Self-optimisation (oscillation method) makes it possible even for users with no knowledge of control technology to adapt the controller to the controlled system. The reactions of the controlled system to changes in the manipulated variable are analysed and certain controller parameters are calculated.  Limit value monitoring  The device has three limit value monitors, each of which offers eight configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:   On/off delay - Wiper function   Alarm suppression during the switch-on phase or when parameters are changed   Alarm latching   Latching with acknowledgement are available.  Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerAfter the timer is activated, a signal is output for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, an end signal can be generated that is either limited in time or can be deactivated by acknowledgement. The timer makes it possible, for example, to realise a time-controlled setpoint changeover. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme allows the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro TRON - electronic thermostat with PID two-point controller option Typ: 701080/0-01-23-02/000  Input: 1 resistance thermometer Pt100, Pt1000 in two-wire circuit, 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (NO contact AC 250 V, 5 A), resistive load  Power supply: AC 230 V+10/-15%, 48 bis 63 Hz  Version: Standard version  Extra code: without The electronic thermostat is used as a heating or cooling thermostat, but can be optionally extended with a PID two-point controller option. The device offers user-friendly operation, characterised by a clear structure and supporting texts in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information on the switching positions of the outputs, the status of the timer and the temperature unit used. PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. PID two-point controller (optional)If the PID two-point controller option is selected, various controller structures are available, including P, I, PH, PI and PID, which also enable self-optimisation. In addition, the setup programme offers a start-up function and a display of the online parameters. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket, which is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made in a time-saving manner using spring-loaded terminals (push-in technology) Self-optimisationSelf-optimisation (oscillation method) makes it possible even for users with no knowledge of control technology to adapt the controller to the controlled system. The reactions of the controlled system to changes in the manipulated variable are analysed and certain controller parameters are calculated. Limit value monitoringThe device has three limit value monitors, each of which offers eight configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerOnce the timer has been activated, a signal is emitted for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, an end signal can be generated that is either limited in time or can be deactivated by acknowledgement. The timer makes it possible, for example, to realise a time-controlled setpoint changeover. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme allows the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro TRON - electronic thermostat with PID two-point controller option Typ: 701080/0-01-23-30/000  Input: 1 resistance thermometer Pt100, Pt1000 in two-wire circuit, 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (NO contact AC 250 V, 5 A), resistive load  Power supply: DC 12 bis 24 V +15/-15%  Version: Standard version  Extra code: without The electronic thermostat is used as a heating or cooling thermostat, but can be optionally extended with a PID two-point controller option. The device offers user-friendly operation, characterised by a clear structure and supporting texts in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information on the switching positions of the outputs, the status of the timer and the temperature unit used. PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. PID two-point controller (optional)If the PID two-point controller option is selected, various controller structures are available, including P, I, PH, PI and PID, which also enable self-optimisation. In addition, the setup programme offers a start-up function and a display of the online parameters. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket, which is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made in a time-saving manner using spring-loaded terminals (push-in technology) Self-optimisationSelf-optimisation (oscillation method) makes it possible even for users with no knowledge of control technology to adapt the controller to the controlled system. The reactions of the controlled system to changes in the manipulated variable are analysed and certain controller parameters are calculated. Limit value monitoringThe device has three limit value monitors, each of which offers eight configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerOnce the timer has been activated, a signal is emitted for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, an end signal can be generated that is either limited in time or can be deactivated by acknowledgement. The timer makes it possible, for example, to realise a time-controlled setpoint changeover. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme allows the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro TRON - electronic thermostat with PID two-point controller option Typ: 701080/0-04-23-02/000  Input: 1 thermocouple and 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (NO contact AC 250 V, 5 A), resistive load  Power supply: AC 230 V+10/-15%, 48 bis 63 Hz  Version: Standard version  Extra code: without The electronic thermostat is used as a heating or cooling thermostat, but can be optionally extended with a PID two-point controller option. The device offers user-friendly operation, characterised by a clear structure and supporting texts in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information on the switching positions of the outputs, the status of the timer and the temperature unit used. PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. PID two-point controller (optional)If the PID two-point controller option is selected, various controller structures are available, including P, I, PH, PI and PID, which also enable self-optimisation. In addition, the setup programme offers a start-up function and a display of the online parameters. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket, which is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made in a time-saving manner using spring-loaded terminals (push-in technology) Self-optimisationSelf-optimisation (oscillation method) makes it possible even for users with no knowledge of control technology to adapt the controller to the controlled system. The reactions of the controlled system to changes in the manipulated variable are analysed and certain controller parameters are calculated. Limit value monitoringThe device has three limit value monitors, each of which offers eight configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerOnce the timer has been activated, a signal is emitted for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, an end signal can be generated that is either limited in time or can be deactivated by acknowledgement. The timer makes it possible, for example, to realise a time-controlled setpoint changeover. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme allows the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro TRON - electronic thermostat with PID two-point controller option Typ: 701080/0-05-23-02/000  Input: 0(4) to 20 mA and 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (NO contact AC 250 V, 5 A), resistive load  Power supply: AC 230 V+10/-15%, 48 bis 63 Hz  Version: Standard version  Extra code: without The electronic thermostat is used as a heating or cooling thermostat, but can be optionally extended with a PID two-point controller option. The device offers user-friendly operation, characterised by a clear structure and supporting texts in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information on the switching positions of the outputs, the status of the timer and the temperature unit used. PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. PID two-point controller (optional)If the PID two-point controller option is selected, various controller structures are available, including P, I, PH, PI and PID, which also enable self-optimisation. In addition, the setup programme offers a start-up function and a display of the online parameters. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket, which is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made in a time-saving manner using spring-loaded terminals (push-in technology) Self-optimisationSelf-optimisation (oscillation method) makes it possible even for users with no knowledge of control technology to adapt the controller to the controlled system. The reactions of the controlled system to changes in the manipulated variable are analysed and certain controller parameters are calculated. Limit value monitoringThe device has three limit value monitors, each of which offers eight configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerOnce the timer has been activated, a signal is emitted for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, an end signal can be generated that is either limited in time or can be deactivated by acknowledgement. The timer makes it possible, for example, to realise a time-controlled setpoint changeover. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme allows the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro VIEW - smart digital indicator with limit value monitoring Typ: 701580/0-01-23-02  Input: 1 resistance thermometer Pt100, Pt1000 in two-wire circuit, 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (make contact AC 250 V, 5 A) resistive load  Power supply: AC 230 V +10/-15 %, 48 to 63 Hz The smart digital indicator is used to electronically display various process variables. The device records the process variables via resistance thermometer, thermocouple, current 0(4) to 20 mA or voltage 0 to 10 V. Other functions include limit value monitoring, min/max value storage, hold function and tare function. The device can be supplied either with 2 relays or with 1 relay and 1 digital output (DC0/14 V). It is characterised by user-friendly, clear operation in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information about  Switching positions of the outputs  Status of the timer  Temperature unit PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. Display functionIn addition to the conventional display of the measured value, the device offers additional functions such as  Display of min/max values  Hold function to hold the current measured value  Tare function for weighing applications Some of these functions can be configured using the membrane keypad on the front. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket that is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made using time-saving spring-loaded terminals (push-in technology) Limit value monitoringThe device has three limit value monitors, each of which offers two configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerAfter the timer is activated, a signal is output for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached.The service counter is used either to count the switching frequency of a binary signal or to determine its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme enables the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro VIEW - smart digital indicator with limit value monitoring Typ: 701580/0-01-23-30  Input: 1 resistance thermometer Pt100, Pt1000 in two-wire circuit, 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (make contact AC 250 V, 5 A) resistive load  Power supply: DC 12 bis 24 V +15/-15% The smart digital indicator is used to electronically display various process variables. The device records the process variables via resistance thermometer, thermocouple, current 0(4) to 20 mA or voltage 0 to 10 V. Other functions include limit value monitoring, min/max value storage, hold function and tare function. The device can be supplied either with 2 relays or with 1 relay and 1 digital output (DC0/14 V). It is characterised by user-friendly, clear operation in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information about  Switching positions of the outputs  Status of the timer  Temperature unit PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. Display functionIn addition to the conventional display of the measured value, the device offers additional functions such as  Display of min/max values  Hold function to hold the current measured value  Tare function for weighing applications Some of these functions can be configured using the membrane keypad on the front. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket that is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made using time-saving spring-loaded terminals (push-in technology) Limit value monitoringThe device has three limit value monitors, each of which offers two configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerAfter the timer is activated, a signal is output for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached.The service counter is used either to count the switching frequency of a binary signal or to determine its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme enables the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

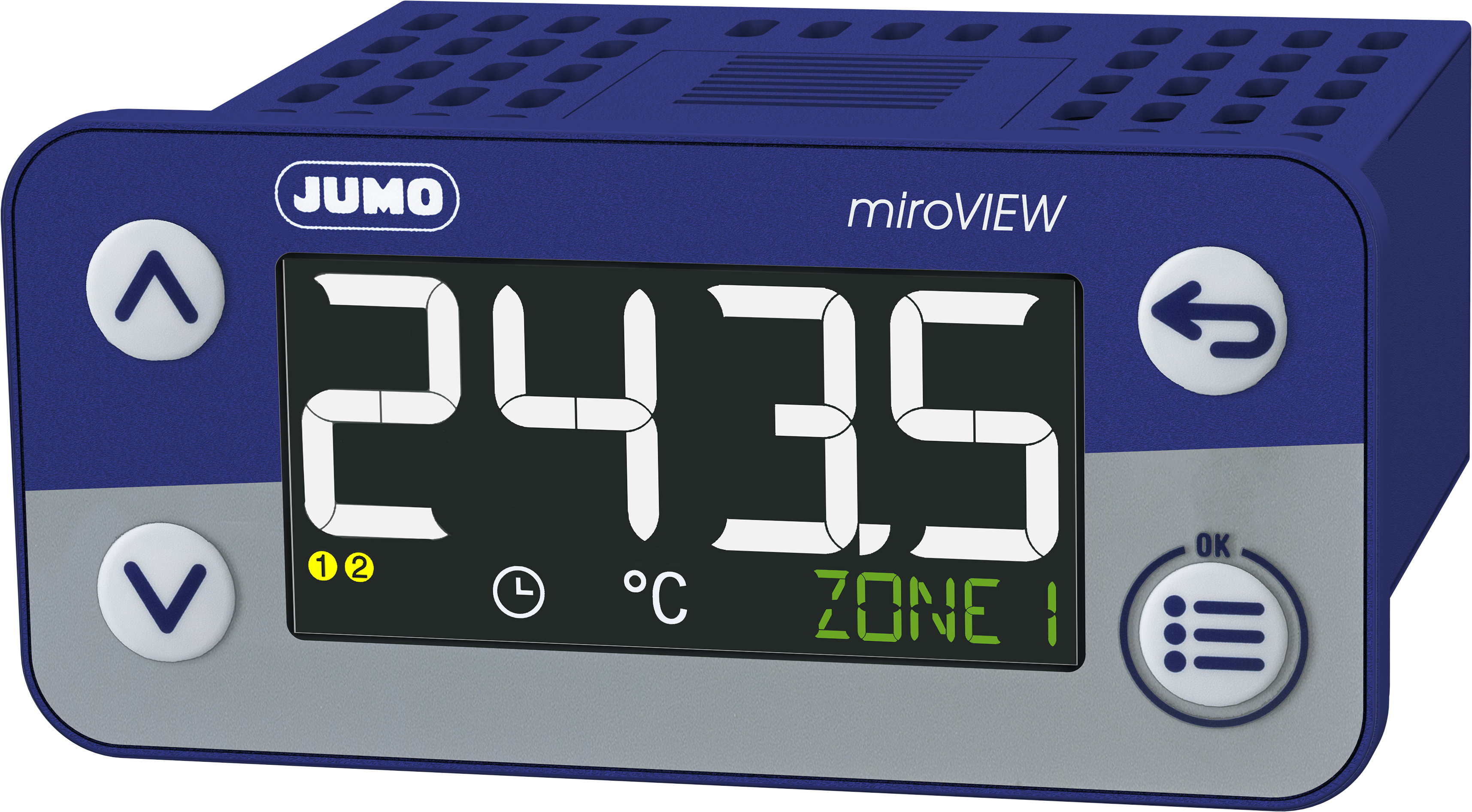

JUMO miro VIEW - smart digital indicator with limit value monitoring Typ: 701580/0-04-23-02  Input: 1 Thermoelement und 1 Digitaleingang  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (make contact AC 250 V, 5 A) resistive load  Power supply: AC 230 V +10/-15 %, 48 to 63 Hz The smart digital indicator is used to electronically display various process variables. The device records the process variables via resistance thermometer, thermocouple, current 0(4) to 20 mA or voltage 0 to 10 V. Other functions include limit value monitoring, min/max value storage, hold function and tare function. The device can be supplied either with 2 relays or with 1 relay and 1 digital output (DC0/14 V). It is characterised by user-friendly, clear operation in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information about  Switching positions of the outputs  Status of the timer  Temperature unit PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. Display functionIn addition to the conventional display of the measured value, the device offers additional functions such as  Display of min/max values  Hold function to hold the current measured value  Tare function for weighing applications Some of these functions can be configured using the membrane keypad on the front. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket that is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made using time-saving spring-loaded terminals (push-in technology) Limit value monitoringThe device has three limit value monitors, each of which offers two configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerAfter the timer is activated, a signal is output for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached.The service counter is used either to count the switching frequency of a binary signal or to determine its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme enables the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO miro VIEW - smart digital indicator with limit value monitoring Typ: 701580/0-05-23-02  Input: 0(4) to 20mA and 1 digital input  Output: 1 relay (changeover contact AC 250 V, 10 A) and 1 relay (make contact AC 250 V, 5 A) resistive load  Power supply: AC 230 V +10/-15 %, 48 to 63 Hz The smart digital indicator is used to electronically display various process variables. The device records the process variables via resistance thermometer, thermocouple, current 0(4) to 20 mA or voltage 0 to 10 V. Other functions include limit value monitoring, min/max value storage, hold function and tare function. The device can be supplied either with 2 relays or with 1 relay and 1 digital output (DC0/14 V). It is characterised by user-friendly, clear operation in German, English, French and Spanish. Process values, texts and parameters are displayed on two 18-segment LCD displays. Additional display elements provide information about  Switching positions of the outputs  Status of the timer  Temperature unit PCB terminals with push-in technology enable quick electrical installation. Operation, parameterisation and configuration are carried out via a membrane keypad with four buttons. Display functionIn addition to the conventional display of the measured value, the device offers additional functions such as  Display of min/max values  Hold function to hold the current measured value  Tare function for weighing applications Some of these functions can be configured using the membrane keypad on the front. Inputs and outputsThe required analogue input can be selected when ordering:  Resistance thermometer  Thermocouple  Current (4 to 20 mA)  Voltage (0 to 10 V) There is also a digital input for connecting a potential-free contact (not for resistance thermometers in three-wire circuit). Depending on the device type, the following combinations are available as outputs: 2 relays (1 changeover contact, 1 NO contact), or 1 relay (NO contact) and 1 digital output DC 0/14 V, or 4 relays (NO contact). USB device interfaceThe device has a Micro-B socket that is intended for connection to a PC for configuration with the setup programme. No separate power supply is required during configuration via the USB interface (USB-powered). Electrical connectionThe electrical connection is made using time-saving spring-loaded terminals (push-in technology) Limit value monitoringThe device has three limit value monitors, each of which offers two configurable alarm functions. Any analogue signal is selected from a selector as the value to be monitored. The limit values can be defined either as an absolute value or as a different analogue signal. Additional functions:  On/off delay  Wiper function  Alarm suppression during the switch-on phase or when parameters are changed  Alarm latching  Latching with acknowledgement are available. Comprehensive alarm and limit value functions can be realised with limit value monitoring. TimerAfter the timer is activated, a signal is output for the preset runtime, which can be inverted. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached.The service counter is used either to count the switching frequency of a binary signal or to determine its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Setup programmeThe optional setup programme enables the user to configure the device easily and conveniently via a PC. With this programme, data can be created, edited, transferred to the device and read out from there. It also offers a recording function for commissioning (start-up). Customer-specific linearisationIndividual linearisation according to customer requirements makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup programme either using your value table with up to 40 value pairs or using a formula (4th order polynomial)

JUMO diraVIEW 116 - Digital indicator Version: Standard with factory settings Power supply: AC 110-240 V +10/-15%, 48 to 63 Hz Option 1-4: not assigned Extra code: without  1 analogue input  2 digital inputs (digital input 1 as an alternative to logic output)  2 relay (normally open contact)  1 logic output 0/14 V (alternative to digital input 1)  Display and storage of min/max values  Tare function  Hold function  Tare function for weighing applications  Customised linearisation with the option of defining up to 40 value pairs or a polynomial  Timer function  Monitoring of 4 limit values  Customised user levels  Optional customised application using structured text (ST code)  Optional maths and logic function  Simple installation thanks to push-in technology  Optional analogue output  Optional RS485 or Ethernet interface  Additional analogue and digital inputs via the interface This digital indicator consists of five freely configurable and universally applicable devices in different DIN formats for displaying temperature, pressure and other process variables. The process variables and parameters are displayed on two 18-segment LCD displays. Types 701512, 701513 and 701514 are also equipped with a pixel matrix LCD display for displaying text. In addition, all devices have separate display elements for the switching positions of the outputs and the timer. They are operated via a membrane keypad with four buttons and are suitable for use in harsh environmental conditions thanks to their high IP65 protection rating. Inputs and outputs Each device type is equipped with a universal analogue input that is suitable for resistance thermometers, thermocouples, current, voltage, resistance transmitters and resistance/potentiometers. In addition, each device has a digital input, a switchable digital input/output. With the exception of type 701510, which has one relay output (normally open contact) as standard, all other types have two relay outputs (normally open contact). The digital inputs are designed for connection with a potential-free contact. The digital output provides a logic signal from 0 to 14 V. Furthermore, additional optional  Relay outputs (normally open contact)  Logic outputs (0 to 14 V)  PhotoMOS® relay outputs  Analogue output (0 to 10V / 0 to 20 mA) are available. Certain inputs and outputs cannot be used simultaneously (see notes in the connection diagram) Signal assignment via selectors The input signals and all internal signals are available in so-called selectors (analogue selector, digital selector) for further use in the device. The control signals for the outputs are also assigned via selectors, which enables flexible assignment of signals and functions. Interfaces The device has a USB device interface (Micro-B socket on the rear), which is specially designed for connection to a PC for the setup programme. During configuration, the device is supplied with power via this USB interface so that no mains supply is required. An optional RS485 interface is available, which is intended for communication with a Modbus master (Modbus RTU operating mode). The master can transmit up to two analogue values and two binary values to the device, which are used there as external input signals. In addition, two analogue flags and two digital flags (binary) are available. An Ethernet interface is also available as an option, which supports the Modbus TCP and Modbus RTU/ASCII operating modes via TCP. The same parameters and process values can be transmitted via this interface as via the RS485 interface. Power supply Two power supply variants are available:  AC110 to 240 V  AC/DC 20 to 30 V 48 to 63 Hz in each case Electrical connection Simple and time-saving connection using practical spring-loaded terminals (push-in technology) Min-max function Using the min-max function, the lowest and highest measured values are saved and continuously updated. It is possible to display these values separately or alternately with the current measured value. A binary signal makes it possible to reset the stored values and return them to the current measured value. Hold function The hold function "freezes" the value of the indicator, which means that this value is displayed for as long as the controlling binary signal is active. Tare function The tare function makes it possible to set the value of the indicator to zero, controlled by a binary signal (for weighing applications). The currently displayed value is added to the tare value each time. Another binary signal can be used to reset the tare value to zero so that the current value appears on the display again. Limit value monitoring The device has four limit value monitors, each with eight configurable alarm functions. Any analogue signal can be selected from a selector for monitoring. The limit values can either be absolute values or depend on another analogue signal. Various special functions are available, such as  On/off delay  Wiper function  Alarm suppression during the switch-on phase or in the event of parameter changes  Alarm latching  Latching with acknowledgement available. These extensive functions enable flexible and precise realisation of alarm and limit value functions. Digital control signals This function enables the configuration of up to 4 digital control signals. The control signal is either formed by an AND/OR/XOR combination of up to three selectable binary signals or a single binary signal is used as an input signal and can be output as a pulsed signal, delayed signal, wiper signal or edge-triggered signal. In the latter case, the rising or falling edge of the binary signal is determined and the output signal is activated for the duration of a sampling interval. The output signal can be inverted in all these cases. Timer Once the timer is activated, an invertible signal is generated for the specified timer runtime. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, a timer end signal can be generated that is either time-limited or requires acknowledgement. These timer functions enable a wide range of time-dependent processes. Service counter The service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Maths and logic function The optional maths and logic function (extra code) can be used to link analogue or binary values. Up to four freely configurable maths or logic formulas can be created using the setup program. The results are then available for further use in the analogue or digital selector. Individual user level The individual user level offers space for up to 16 editable configuration parameters. These parameters can be selected individually in the setup programme. Setup programme With the setup programme, data records can be created, edited, transferred to the device and read out from there. The data can be saved and printed out. The programme also allows the user to easily create and print out a connection diagram showing the current terminal assignment of the device. Startup: The startup function enables the recording of process variables during commissioning for a maximum of 24 hours. The recorded diagrams are available on the PC and can be used for system documentation, for example. Online data: The current process variables of the device are displayed in a separate window. Customer-specific linearisation Individual linearisation according to customer requirements also makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup program either using your value table with up to 40 value pairs or using a formula (4th order polynomial). The device supports 2 customer-specific linearisations. Structured text The "Structured text" option (extra code) allows the user to develop a customised application. This application is created using the ST editor, which is part of the setup programme, and uses the "Structured text" PLC programming language. Once completed, the application is transferred to the device and executed continuously. Online debugger functions are available in the ST editor for troubleshooting and testing. With the help of the ST code, it is possible to display up to 10 stored text messages depending on the application.

JUMO diraVIEW 132 - Digital indicator Typ: 701510/8-0000-23/000 Version: Standard with factory settings Power supply: AC 110-240 V +10/-15%, 48 to 63 Hz Option 1-4: not assigned Extra code: without  1 analogue input  2 digital inputs (digital input 1 as an alternative to logic output)  1 relay (normally open contact)  1 logic output 0/14 V (alternative to digital input 1)  Display and storage of min/max values  Tare function  Hold function  Tare function for weighing applications  Customised linearisation with the option of defining up to 40 value pairs or a polynomial  Timer function  Monitoring of 4 limit values  Customised user levels  Optional customised application using structured text (ST code)  Optional maths and logic function  Simple installation thanks to push-in technology  Optional analogue output  Optional RS485 or Ethernet interface  Additional analogue and digital inputs via the interface This digital indicator consists of five freely configurable and universally applicable devices in different DIN formats for displaying temperature, pressure and other process variables. The process variables and parameters are displayed on two 18-segment LCD displays. Types 701512, 701513 and 701514 are also equipped with a pixel matrix LCD display for displaying text. In addition, all devices have separate display elements for the switching positions of the outputs and the timer. They are operated via a membrane keypad with four buttons and are suitable for use in harsh environmental conditions thanks to their high IP65 protection rating. Inputs and outputs Each device type is equipped with a universal analogue input that is suitable for resistance thermometers, thermocouples, current, voltage, resistance transmitters and resistance/potentiometers. In addition, each device has a digital input, a switchable digital input/output. With the exception of type 701510, which has one relay output (normally open contact) as standard, all other types have two relay outputs (normally open contact). The digital inputs are designed for connection with a potential-free contact. The digital output provides a logic signal from 0 to 14 V. Furthermore, additional optional  Relay outputs (normally open contact)  Logic outputs (0 to 14 V)  PhotoMOS® relay outputs  Analogue output (0 to 10V / 0 to 20 mA) are available. Certain inputs and outputs cannot be used simultaneously (see notes in the connection diagram)Signal assignment via selectorsThe input signals and all internal signals are available in so-called selectors (analogue selector, digital selector) for further use in the device. The control signals for the outputs are also assigned via selectors, which enables flexible assignment of signals and functions. InterfacesThe device has a USB device interface (Micro-B socket on the rear), which is specially designed for connection to a PC for the setup programme. During configuration, the device is supplied with power via this USB interface so that no mains supply is required.An optional RS485 interface is available, which is intended for communication with a Modbus master (Modbus RTU operating mode). The master can transmit up to two analogue values and two binary values to the device, which are used there as external input signals. In addition, two analogue flags and two digital flags (binary) are available. An Ethernet interface is also available as an option, which supports the Modbus TCP and Modbus RTU/ASCII operating modes via TCP. The same parameters and process values can be transmitted via this interface as via the RS485 interface. Power supplyTwo power supply variants are available:  AC110 to 240 V  AC/DC 20 to 30 V 48 to 63 Hz in each case Electrical connectionSimple and time-saving connection using practical spring-loaded terminals (push-in technology) Min-max functionUsing the min-max function, the lowest and highest measured values are saved and continuously updated. It is possible to display these values separately or alternately with the current measured value. A binary signal makes it possible to reset the stored values and return them to the current measured value. Hold functionThe hold function "freezes" the value of the indicator, which means that this value is displayed for as long as the controlling binary signal is active. Tare functionThe tare function makes it possible to set the value of the indicator to zero, controlled by a binary signal (for weighing applications). The currently displayed value is added to the tare value each time. Another binary signal can be used to reset the tare value to zero so that the current value appears on the display again. Limit value monitoringThe device has four limit value monitors, each with eight configurable alarm functions. Any analogue signal can be selected from a selector for monitoring. The limit values can either be absolute values or depend on another analogue signal. Various special functions are available, such as  On/off delay  Wiper function  Alarm suppression during the switch-on phase or in the event of parameter changes  Alarm latching  Latching with acknowledgement available. These extensive functions enable flexible and precise realisation of alarm and limit value functions. Digital control signalsThis function enables the configuration of up to 4 digital control signals. The control signal is either formed by an AND/OR/XOR combination of up to three selectable binary signals or a single binary signal is used as an input signal and can be output as a pulsed signal, delayed signal, wiper signal or edge-triggered signal. In the latter case, the rising or falling edge of the binary signal is determined and the output signal is activated for the duration of a sampling interval. The output signal can be inverted in all these cases. TimerOnce the timer is activated, an invertible signal is generated for the specified timer runtime. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, a timer end signal can be generated that is either time-limited or requires acknowledgement. These timer functions enable a wide range of time-dependent processes. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Maths and logic functionThe optional maths and logic function (extra code) can be used to link analogue or binary values. Up to four freely configurable maths or logic formulas can be created using the setup program. The results are then available for further use in the analogue or digital selector. Individual user levelThe individual user level offers space for up to 16 editable configuration parameters. These parameters can be selected individually in the setup programme. Setup programmeWith the setup programme, data records can be created, edited, transferred to the device and read out from there. The data can be saved and printed out. The programme also allows the user to easily create and print out a connection diagram showing the current terminal assignment of the device. Startup: The startup function enables the recording of process variables during commissioning for a maximum of 24 hours. The recorded diagrams are available on the PC and can be used for system documentation, for example. Online data: The current process variables of the device are displayed in a separate window. Customer-specific linearisationIndividual linearisation according to customer requirements also makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup program either using your value table with up to 40 value pairs or using a formula (4th order polynomial). The device supports 2 customer-specific linearisations. Structured textThe "Structured text" option (extra code) allows the user to develop a customised application. This application is created using the ST editor, which is part of the setup programme, and uses the "Structured text" PLC programming language. Once completed, the application is transferred to the device and executed continuously. Online debugger functions are available in the ST editor for troubleshooting and testing.With the help of the ST code, it is possible to display up to 10 stored text messages depending on the application.

JUMO diraVIEW 132 - Digital indicator Typ: 701510/8-0000-25/000 Version: Standard with factory settings Power supply: AC/DC 20 bis 30 V, 48 bis 63 Hz Option 1-4: not assigned Extra code: without  1 analogue input  2 digital inputs (digital input 1 as an alternative to logic output)  1 relay (normally open contact)  1 logic output 0/14 V (alternative to digital input 1)  Display and storage of min/max values  Tare function  Hold function  Tare function for weighing applications  Customised linearisation with the option of defining up to 40 value pairs or a polynomial  Timer function  Monitoring of 4 limit values  Customised user levels  Optional customised application using structured text (ST code)  Optional maths and logic function  Simple installation thanks to push-in technology  Optional analogue output  Optional RS485 or Ethernet interface  Additional analogue and digital inputs via the interface This digital indicator consists of five freely configurable and universally applicable devices in different DIN formats for displaying temperature, pressure and other process variables. The process variables and parameters are displayed on two 18-segment LCD displays. Types 701512, 701513 and 701514 are also equipped with a pixel matrix LCD display for displaying text. In addition, all devices have separate display elements for the switching positions of the outputs and the timer. They are operated via a membrane keypad with four buttons and are suitable for use in harsh environmental conditions thanks to their high IP65 protection rating. Inputs and outputs Each device type is equipped with a universal analogue input that is suitable for resistance thermometers, thermocouples, current, voltage, resistance transmitters and resistance/potentiometers. In addition, each device has a digital input, a switchable digital input/output. With the exception of type 701510, which has one relay output (normally open contact) as standard, all other types have two relay outputs (normally open contact). The digital inputs are designed for connection with a potential-free contact. The digital output provides a logic signal from 0 to 14 V. Furthermore, additional optional  Relay outputs (normally open contact)  Logic outputs (0 to 14 V)  PhotoMOS® relay outputs  Analogue output (0 to 10V / 0 to 20 mA) are available. Certain inputs and outputs cannot be used simultaneously (see notes in the connection diagram)Signal assignment via selectorsThe input signals and all internal signals are available in so-called selectors (analogue selector, digital selector) for further use in the device. The control signals for the outputs are also assigned via selectors, which enables flexible assignment of signals and functions. InterfacesThe device has a USB device interface (Micro-B socket on the rear), which is specially designed for connection to a PC for the setup programme. During configuration, the device is supplied with power via this USB interface so that no mains supply is required.An optional RS485 interface is available, which is intended for communication with a Modbus master (Modbus RTU operating mode). The master can transmit up to two analogue values and two binary values to the device, which are used there as external input signals. In addition, two analogue flags and two digital flags (binary) are available. An Ethernet interface is also available as an option, which supports the Modbus TCP and Modbus RTU/ASCII operating modes via TCP. The same parameters and process values can be transmitted via this interface as via the RS485 interface. Power supplyTwo power supply variants are available:  AC110 to 240 V  AC/DC 20 to 30 V 48 to 63 Hz in each case Electrical connectionSimple and time-saving connection using practical spring-loaded terminals (push-in technology) Min-max functionUsing the min-max function, the lowest and highest measured values are saved and continuously updated. It is possible to display these values separately or alternately with the current measured value. A binary signal makes it possible to reset the stored values and return them to the current measured value. Hold functionThe hold function "freezes" the value of the indicator, which means that this value is displayed for as long as the controlling binary signal is active. Tare functionThe tare function makes it possible to set the value of the indicator to zero, controlled by a binary signal (for weighing applications). The currently displayed value is added to the tare value each time. Another binary signal can be used to reset the tare value to zero so that the current value appears on the display again. Limit value monitoringThe device has four limit value monitors, each with eight configurable alarm functions. Any analogue signal can be selected from a selector for monitoring. The limit values can either be absolute values or depend on another analogue signal. Various special functions are available, such as  On/off delay  Wiper function  Alarm suppression during the switch-on phase or in the event of parameter changes  Alarm latching  Latching with acknowledgement available. These extensive functions enable flexible and precise realisation of alarm and limit value functions. Digital control signalsThis function enables the configuration of up to 4 digital control signals. The control signal is either formed by an AND/OR/XOR combination of up to three selectable binary signals or a single binary signal is used as an input signal and can be output as a pulsed signal, delayed signal, wiper signal or edge-triggered signal. In the latter case, the rising or falling edge of the binary signal is determined and the output signal is activated for the duration of a sampling interval. The output signal can be inverted in all these cases. TimerOnce the timer is activated, an invertible signal is generated for the specified timer runtime. The timer can also be started after a lead time has elapsed or a tolerance limit has been reached. After the timer has elapsed, a timer end signal can be generated that is either time-limited or requires acknowledgement. These timer functions enable a wide range of time-dependent processes. Service counterThe service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated that must be acknowledged. An operating hours counter is also available, which records the operating time of the device. Maths and logic functionThe optional maths and logic function (extra code) can be used to link analogue or binary values. Up to four freely configurable maths or logic formulas can be created using the setup program. The results are then available for further use in the analogue or digital selector. Individual user levelThe individual user level offers space for up to 16 editable configuration parameters. These parameters can be selected individually in the setup programme. Setup programmeWith the setup programme, data records can be created, edited, transferred to the device and read out from there. The data can be saved and printed out. The programme also allows the user to easily create and print out a connection diagram showing the current terminal assignment of the device. Startup: The startup function enables the recording of process variables during commissioning for a maximum of 24 hours. The recorded diagrams are available on the PC and can be used for system documentation, for example. Online data: The current process variables of the device are displayed in a separate window. Customer-specific linearisationIndividual linearisation according to customer requirements also makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup program either using your value table with up to 40 value pairs or using a formula (4th order polynomial). The device supports 2 customer-specific linearisations. Structured textThe "Structured text" option (extra code) allows the user to develop a customised application. This application is created using the ST editor, which is part of the setup programme, and uses the "Structured text" PLC programming language. Once completed, the application is transferred to the device and executed continuously. Online debugger functions are available in the ST editor for troubleshooting and testing.With the help of the ST code, it is possible to display up to 10 stored text messages depending on the application.
