2-electrode principleproven versions for industrial use measuring ranges 0 ... 1 mS/cm (K = 0.1) or 0.01 ... 15 mS/cm (K = 1.0) temperature range up to 55 °C, maximum pressure up to 6 bar at 25 °C JUMO ecoLine CR-PVC conductive 2-electrode conductivity sensorBrief description: Conductivity sensors of the 202923 series are used, for example, in general water technology, cooling and air-conditioning systems, drinking and bathing water, or in industrial rinsing and process water circuits. The body material PVC limits the application to medium temperatures up to 55 °C. Two versions with cell constants K = 0.1 or 1.0 are available. Versions with the common thread sizes G 3/4" or G 1" or a plug-in version are available for installation. The plug-in version is used, for example, with the matching PVC tees in nominal sizes DN 25, 32 and 40 and allows the sensor to be quickly dismantled for cleaning or maintenance. The electrical connection is made either via a detachable device plug or via a fixed cable connection. The overall construction and the parts in contact with the medium are physiologically harmless. The electrode material is stainless steel (K = 0.1) or special graphite (K = 1.0). The optionally integrable temperature sensor allows simultaneous recording of the medium temperature for temperature compensation in downstream measuring amplifiers.Stainless steel variant K = 0.1 The sensor has 3 metallic pin electrodes. The two outer pins are electrically connected and form one pole of the 2-electrode conductivity sensor. The counter electrode is the middle stainless steel pin. This design achieves very high measurement precision with low stray fields. A temperature sensor can be integrated in the middle pin. Graphite variant K = 1.0 For physical reasons, special graphite is used as the electrode material for higher conductance values. The two graphite electrodes are completely integrated in the electrode shaft. The optional temperature sensor is located in a stainless steel sleeve that is immersed in the measured medium. Operating principleThe sensors of the 202923 series are 2-electrode conductivity sensors. An AC voltage is applied to them by the transmitter. The current flowing across the liquid and the electrodes is determined by the conductivity of the liquid
2-electrode principleproven versions for industrial use measuring ranges 0 ... 1 mS/cm (K = 0.1) or 0.01 ... 15 mS/cm (K = 1.0) temperature range up to 55 °C, maximum pressure up to 6 bar at 25 °C JUMO ecoLine CR-PVC conductive 2-electrode conductivity sensorBrief description: Conductivity sensors of the 202923 series are used, for example, in general water technology, cooling and air-conditioning systems, drinking and bathing water, or in industrial rinsing and process water circuits. The body material PVC limits the application to medium temperatures up to 55 °C. Two versions with cell constants K = 0.1 or 1.0 are available. Versions with the common thread sizes G 3/4" or G 1" or a plug-in version are available for installation. The plug-in version is used, for example, with the matching PVC tees in nominal sizes DN 25, 32 and 40 and allows the sensor to be quickly dismantled for cleaning or maintenance. The electrical connection is made either via a detachable device plug or via a fixed cable connection. The overall construction and the parts in contact with the medium are physiologically harmless. The electrode material is stainless steel (K = 0.1) or special graphite (K = 1.0). The optionally integrable temperature sensor allows simultaneous recording of the medium temperature for temperature compensation in downstream measuring amplifiers.Stainless steel variant K = 0.1 The sensor has 3 metallic pin electrodes. The two outer pins are electrically connected and form one pole of the 2-electrode conductivity sensor. The counter electrode is the middle stainless steel pin. This design achieves very high measurement precision with low stray fields. A temperature sensor can be integrated in the middle pin. Graphite variant K = 1.0 For physical reasons, special graphite is used as the electrode material for higher conductance values. The two graphite electrodes are completely integrated in the electrode shaft. The optional temperature sensor is located in a stainless steel sleeve that is immersed in the measured medium. Operating principleThe sensors of the 202923 series are 2-electrode conductivity sensors. An AC voltage is applied to them by the transmitter. The current flowing across the liquid and the electrodes is determined by the conductivity of the liquid
2-electrode principleproven versions for industrial use measuring ranges 0 ... 1 mS/cm (K = 0.1) or 0.01 ... 15 mS/cm (K = 1.0) temperature range up to 55 °C, maximum pressure up to 6 bar at 25 °C JUMO ecoLine CR-PVC conductive 2-electrode conductivity sensorBrief description: Conductivity sensors of the 202923 series are used, for example, in general water technology, cooling and air-conditioning systems, drinking and bathing water, or in industrial rinsing and process water circuits. The body material PVC limits the application to medium temperatures up to 55 °C. Two versions with cell constants K = 0.1 or 1.0 are available. Versions with the common thread sizes G 3/4" or G 1" or a plug-in version are available for installation. The plug-in version is used, for example, with the matching PVC tees in nominal sizes DN 25, 32 and 40 and allows the sensor to be quickly dismantled for cleaning or maintenance. The electrical connection is made either via a detachable device plug or via a fixed cable connection. The overall construction and the parts in contact with the medium are physiologically harmless. The electrode material is stainless steel (K = 0.1) or special graphite (K = 1.0). The optionally integrable temperature sensor allows simultaneous recording of the medium temperature for temperature compensation in downstream measuring amplifiers.Stainless steel variant K = 0.1 The sensor has 3 metallic pin electrodes. The two outer pins are electrically connected and form one pole of the 2-electrode conductivity sensor. The counter electrode is the middle stainless steel pin. This design achieves very high measurement precision with low stray fields. A temperature sensor can be integrated in the middle pin. Graphite variant K = 1.0 For physical reasons, special graphite is used as the electrode material for higher conductance values. The two graphite electrodes are completely integrated in the electrode shaft. The optional temperature sensor is located in a stainless steel sleeve that is immersed in the measured medium. Operating principleThe sensors of the 202923 series are 2-electrode conductivity sensors. An AC voltage is applied to them by the transmitter. The current flowing across the liquid and the electrodes is determined by the conductivity of the liquid
Our Neomeris conductivity cell with 12mm connection is used for the determination of the electrical conductivity in aqueous solutions. Inside the T-piece is the two-electrode measuring cell without temperature compensation. The installation is easy and fast due to the John Guest connectors. We recommend the use of the product in the fields of distillate, condensate, ultrapure water as well as fully demineralized water. Technical data Material Housing: POM T-piece John Guest ½" Material electrodes: V4A 4571 Cell constant: C = 0.1 +-5% Max. operating pressure: 6 bar Max. operating temperature: 60°C Electrical connection: - brown electrode, outer sheath - white Electrode, inside - blue: shieldCable length: 2.5 meters
Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity measuring package consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages:Preconfigured for NeoTecMaster® Modular design Industry standard conserves resources

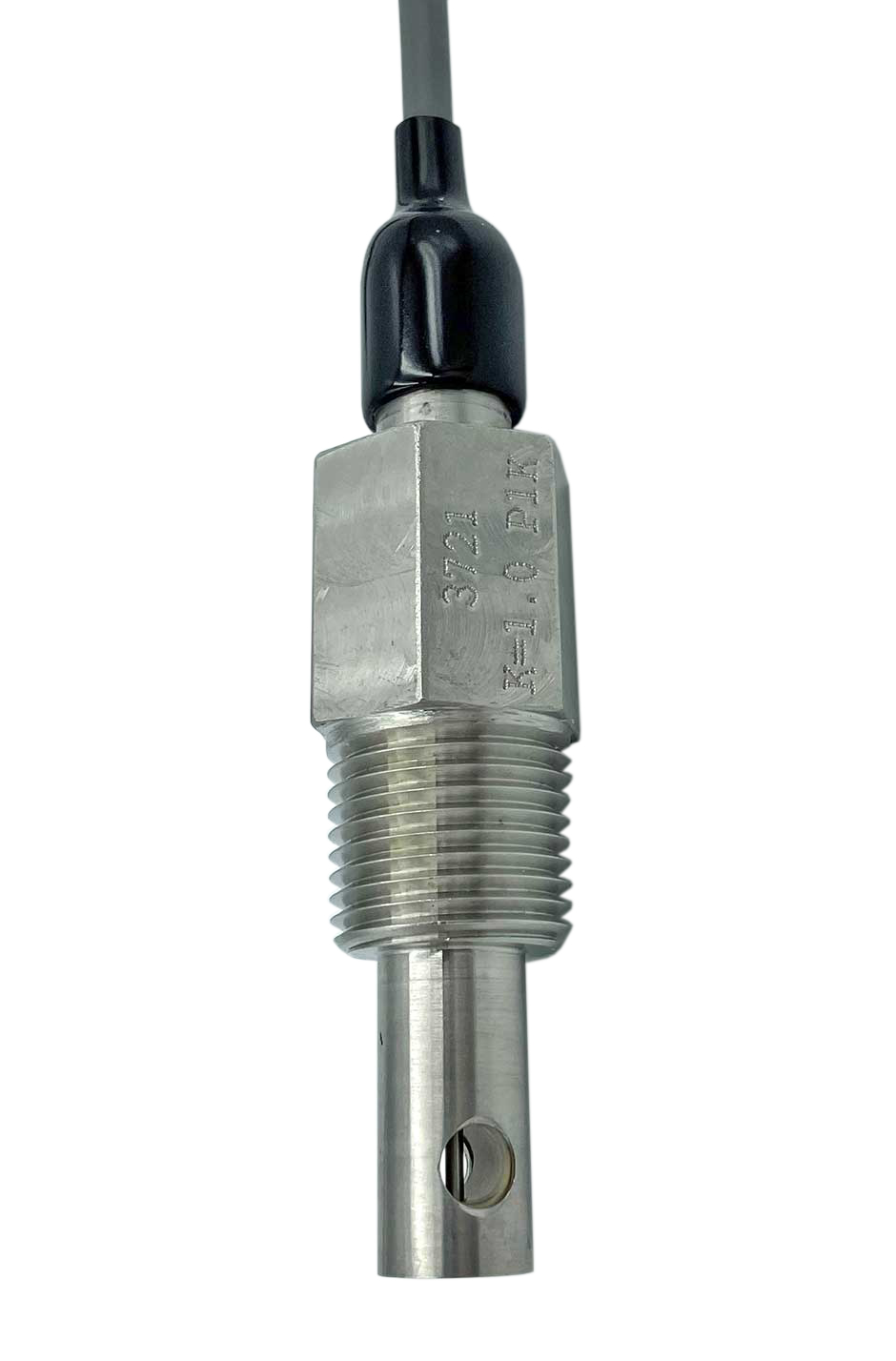

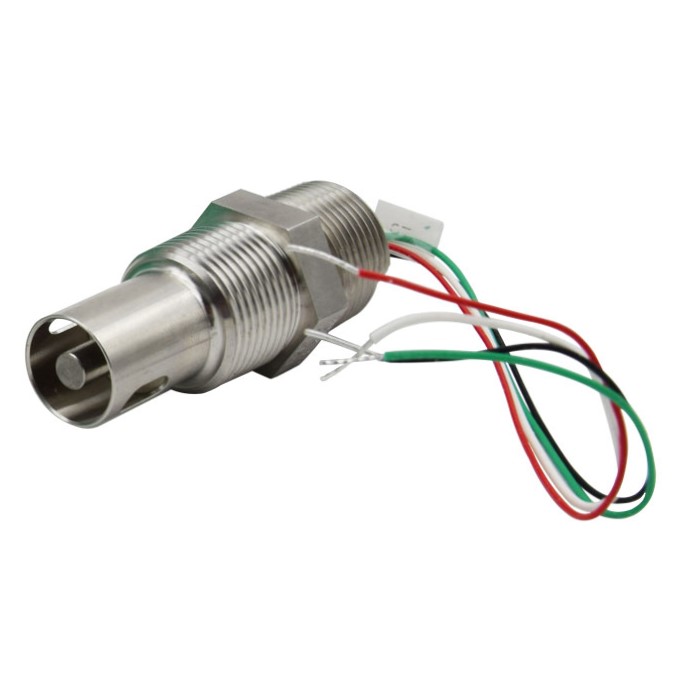

Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
