Recommended for Testomat® LAB instruments which are exposed to sunlight.

A special service set is available for Testomat® LAB CL and Monochloramine, which contains important spare parts, among other things.Contents:1 x gasket set T20002 x sight glasses 30x31 x flow controller core3 x plugs for measuring chamber2 x screw cap with insert T20001 x filter screen for inlet 19,5dx255 x different tubes1 x set of cleaning brushes1 x pump head2 x hose connectors2 x gasket hose adapter

There is a separate service set especially for Testomat® LAB TH, which contains important spare parts.  The service set includes the following spare parts: 1 T2000 gasket kit 2 sight glasses 30x3 1 flow regulator core 3 measuring chamber plugs 1 filter screen for intake 5 different pipes 1 cleaning brush set 2 x screw cap with insert for 500 ml bottle

The Testomat® LAB CL and the Testomat® LAB CL-R are robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process.Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).Please note that Testomat® LAB CL and Testomat® LAB CL-R are developed for use in multi-parameter concepts or for integration into an existing higher-level controlconcept.In addition to the 4-20 mA output for the transmission of the measured values, this series has an RS232 interface for the transmission of the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format in a structured way and can be used for detailed observations at any time.The Testomat® LAB CL and CL-R convinces with new functionalities:Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)Multilingual menu navigation software in German, English, French, Dutch, PortugueseFirmware update via SD card compact design optimized water detection based on an optical measuring method [#dspacer#][#dspacer#]optimized reagent set for total chlorine measurement (reduction from three to tow reagents for total chlorine)Integrated self-test with continuous monitoring Automatic venting of the indicator line Tried and tested performance profile: High-precision peristaltic pumpsReliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorineOptimised reagent bottles: Filling quantities adjusted so that both bottles are used up at the same timeAdditional functions of the CL-R version: Parameterisation and readout of the unit parameters via the RS232 interfaceAnalysis triggering:Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start

The Testomat® LAB Monochloramine NH2CL and the Testomat® LAB Monochloramine NH2CL-R  are online analyzer that photometrically measures the content of monochloramine in process water. The instruments are used for continuous monitoring of process quality, for example in cooling circuits. Another application is the use in the environment of water treatment and drinking water plants, for process monitoring, as well as the monitoring of ther decay behavior in cooling towers after shock chlorination. The measuring range for Monochloramine (NH2CL, calculated as Cl2) is 0 to 5 ppm (resolution 0.1). The instruments operates according to the DPD method based on EN ISO 7393-2. The analysis is performed by adding two reagents. After a reaction time of approx. 60 seconds (dosing and measuring time without rinsing time) the measuring result is available. Please note that the Testomat® Monochloramine NH2CL and NH2CL-R are developed for use in multiparameter systems or for connection to a higher-level control system. In addition to the 4-20 mA output for transmitting the measured values, this series has an RS232 interface for transmitting the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format structured and can be used at any time for detailed observations.The Testomat® LAB Monochloramine NH2CL and NH2CL-R convinces with new functionalities:Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)Multilingual menu navigation software in German, English, French, DutchFirmware update via SD card compact design optimized water detection based on an optical measuring methodoptimized reagent set for total chlorine measurement (reduction from three to tow reagents for total chlorine)Integrated self-test with continuous monitoring Automatic venting of the indicator line  Additional functions of the NH2CL-R version: Parameterisation and readout of the unit parameters via the RS232 interface Tried and tested performance profile: High-precision peristaltic pumpsReliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Common alarm outputAnalysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start

256x64 2,8", yellowFeatures: When the device is switched on with the display plugged in, the installed software version is displayed during the boot process. This  allows you to visually check the current software version after a software update. After a measurement has been completed, the measurement result is  shown in the selected display unit. The display value is retained until the end of the next measurement and is then updated to the new measured value. If a fault occurs during the last measurement, the display shows “xx x x x selected display unit”. If it is a temporary fault, the Alarm function key flashes at the same time (see Temporary faults in the manual). In this case, the device will start a new measurement once the programmed analysis interval has expired. If the error is still present, the indication on the display remains and  the Alarm function key remains illuminated. In this case, no further measurements are made during programmed analysis interval and the device switches to standby mode. If the fault is no longer present, the measurement result is shown on the display once the measurement has been completed and the device switches back to normal operating mode.

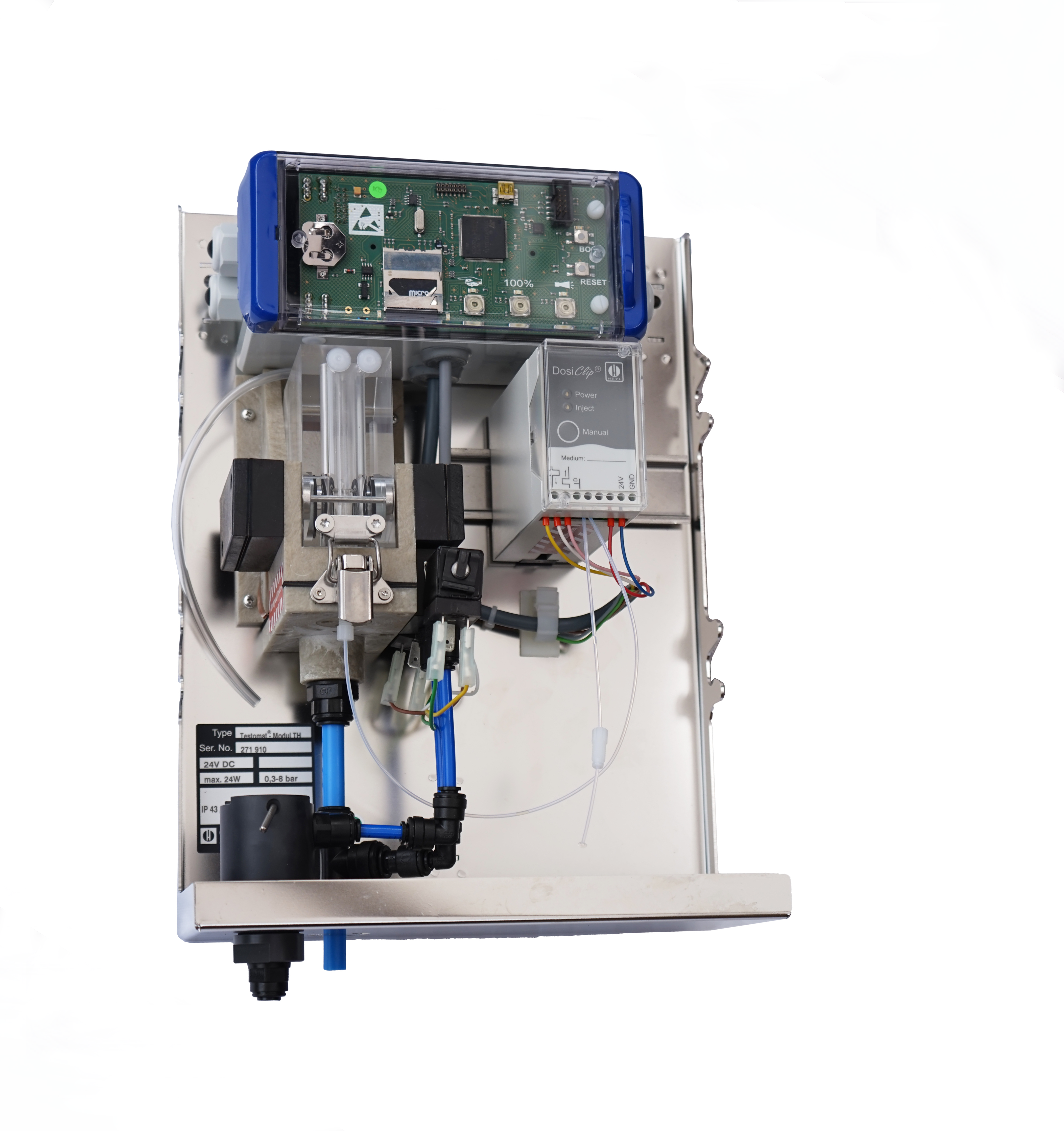

The Testomat® LAB TH and Testomat® LAB TH-R (Remote)determine the water hardness (residual total hardness) fully automatically by titration. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water.Please note that Testomat® LAB - TH and Testomat® LAB TH-R was developed for use in multi-parameter systems or for connection to a higher-level control system. In addition to the 4-20 mA output for transmitting the measured values, this series has an RS232 interface for transmitting the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format structured and can be used at any time for detailed observations.The Testomat® LAB TH and TH-R convinces with new functionalities: Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)Multilingual menu navigation software in German, English, French, Dutch, PortugueseFirmware update via SD card compact design optimized water detection based on an optical measuring method Integrated self-test with continuous monitoring Automatic venting of the indicator line [#mspacer#]Additional functions of the TH-R version:Parameterisation and readout of the unit parameters via the RS232 interfaceTried and tested performance profile: High-precision titration using a piston dosing pump Reliable and low-maintenance operation Minimal indicator and water consumption Analog output 4 - 20 mA for transmission of measured values Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l Common alarm output Indicator quantities: 500 ml bottles Analysis triggering: Automatic interval operation (interval pause adjustable from 0-255 minutes) External analysis input (start/stop) Hand launchOptional accessories: OLED display Protecting cover to increase the IP protection class

The Testomat® LAB TH and Testomat® LAB TH-R (Remote)determine the water hardness (residual total hardness) fully automatically by titration. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water.Please note that Testomat® LAB - TH and Testomat® LAB TH-R was developed for use in multi-parameter systems or for connection to a higher-level control system. In addition to the 4-20 mA output for transmitting the measured values, this series has an RS232 interface for transmitting the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format structured and can be used at any time for detailed observations.The Testomat® LAB TH and TH-R convinces with new functionalities: Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)Multilingual menu navigation software in German, English, French, Dutch, PortugueseFirmware update via SD card compact design optimized water detection based on an optical measuring method Integrated self-test with continuous monitoring Automatic venting of the indicator line [#mspacer#]Additional functions of the TH-R version:Parameterisation and readout of the unit parameters via the RS232 interfaceTried and tested performance profile: High-precision titration using a piston dosing pump Reliable and low-maintenance operation Minimal indicator and water consumption Analog output 4 - 20 mA for transmission of measured values Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l Common alarm output Indicator quantities: 500 ml bottles Analysis triggering: Automatic interval operation (interval pause adjustable from 0-255 minutes) External analysis input (start/stop) Hand launchOptional accessories: OLED display Protecting cover to increase the IP protection class
