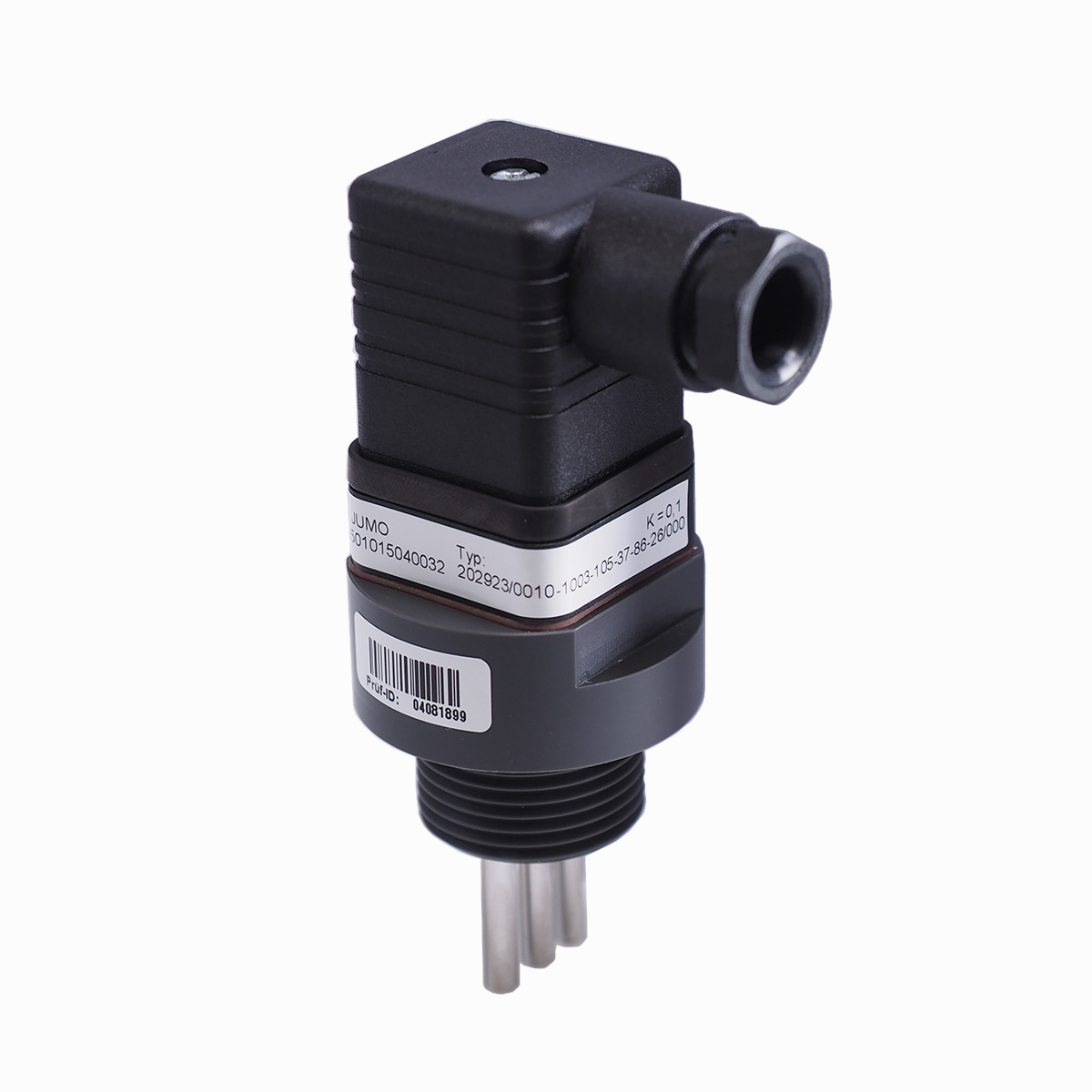

- 1 side connected to solenoid valve connector without seal
("Plug and Play", as plug only has to be plugged onto measuring cell)- 1 side labelled cable with wire end ferruleswhite: PT100brown: PT100yellow: Measuring cell
SL green: Measuring cellblue: shielding
- 1 side connected to solenoid valve connector without seal
("Plug and Play", as plug only has to be plugged onto measuring cell)- 1 side labelled cable with wire end ferruleswhite: PT100brown: PT100yellow: Measuring cell
SL green: Measuring cellblue: shielding
Our Neomeris conductivity cell with 12mm connection is used for the determination of the electrical conductivity in aqueous solutions.
Inside the T-piece is the two-electrode measuring cell without temperature compensation.
The installation is easy and fast due to the John Guest connectors. We recommend the use of the product in the fields of distillate, condensate, ultrapure water as well as fully demineralized water. Technical data
Material Housing: POM T-piece John Guest ½"
Material electrodes: V4A 4571
Cell constant: C = 0.1 +-5%
Max. operating pressure: 6 bar
Max. operating temperature: 60°C
Electrical connection: - brown electrode, outer sheath
- white Electrode, inside
- blue: shieldCable length: 2.5 meters
Capacity measurement ion exchanger cartridgeOur Neomeris N-FLASH10 conductivity meter in a T-piece with 3/8 inch connection is a conductivity measuring instrument that is used to monitor the electrical conductivity of water after flowing through the ion exchanger cartridge. The measuring instrument including the integrated measuring cell is battery operated and permanently installed in the T-piece. If the measured electrical conductivity is below the limit value of 10µS/cm, the green LED flashes; if it is above, the red LED flashes, indicating that a cartridge or resin change is required. Due to the T-piece used, the measuring device can also be integrated very easily and is optimally installed in the liquid flow for a stable measurement. Measuring principle: The measuring cell generates an electrical signal that is proportional to the conductivity of the liquid. This signal is processed in the device and the LED is controlled via the programming stored in the device. Application: Conductivity meters are often used in water treatment plants in the process industry.Technical data:Screw-in thread: 3/8"; others available upon requestMaterial housing: POM black
Material lid: Plexiglas
Material electrodes: V4A 4571
Material O-ring: EPDM
Cell constant: C= 0.6 +/- 10%
Max. Operating pressure: 6 bar
Max. Operating temperature: 60°C
Temperature sensor: without
Display: LED green <10μS/cm
LED red >10μS/cm
Technical data:
Screw-in thread: 1/4"; 1/2"; 3/4"; others available upon requestMaterial housing: POM black
Material lid: Plexiglas
Material electrodes: V4A 4571
Material O-ring: EPDM
Cell constant: C= 0.6 +/- 10%
Max. Operating pressure: 6 bar
Max. Operating temperature: 60°C
Temperature sensor: without
Display: LED green <10μS/cm
LED red >10μS/cm
Technical data:
Screw-in thread: 1/4"; 1/2"; 3/4"; others available upon requestMaterial housing: POM black
Material lid: Plexiglas
Material electrodes: V4A 4571
Material O-ring: EPDM
Cell constant: C= 0.6 +/- 10%
Max. Operating pressure: 6 bar
Max. Operating temperature: 60°C
Temperature sensor: without
Display: LED green <20μS/cm
LED yellow 20-50μS/cm
LED red >50μS/cm
Technical data:
Measuring range: 0 - 10 μS/cm (without temperature compensation)
<0.1 <0.5 < 1.0 < 5.0 < 10 μS/cm
LED display: 3x green; 1x yellow; 1x red
Power supply: 100-240 VAC plug-in power supply unit
Energy consumption: < 500 mWHousing material: POM black (polyoxymethylene)
Viewing window material: PMMA (acrylic glass)
Electrodes: Stainless steel 1.4571
Dimensions: Diameter 40 mm x 68 mm (Top) / 110 mm (Total)
Gasket electrodes: EPDM
Gasket housing: EPDM
Application limits: Pressure max.: 6 bar; Temperature max.: 60 °C
Protection class: IP 65*
Display Measuring range
3 LED green < 0.1 μS/cm
2 LED green < 0.5 μS/cm
1 LED green < 1.0 μS/cm
1 LED yellow < 5 μS/cm
1 LED red < 10 μS/cm
1 LED red flashing ≥ 10 μS/cm
measuring range:
0-10 μS/cm
|
potential-free relay contact:
with
Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation. The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.Application examplessoftener cartridgescomplete desalinationreverse osmosisAdded valueOperation at 9 V DC via supplied plug-in power supply1 potential-free relay with switchable mode of operation of relay controlLimit value display optically by means of LEDs
Technical dataMeasuring ranges: 0 - 10 / 100 / 1000 μS/cm, depending on instrument typeLimit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected) Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC Power consumption: approx. 1 W Protection class: IP 65 Housing: polycarbonate housing, 82 x 60 x 57 mm Connections: side connection for plug-in power supply and one relay output (if selected) Measuring cell: ¾", PP, PN 6, Tmax. 60°C
measuring range:
0-100 μS/cm
|
potential-free relay contact:
without
Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation. The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.Application examplessoftener cartridgescomplete desalinationreverse osmosisAdded valueOperation at 9 V DC via supplied plug-in power supply1 potential-free relay with switchable mode of operation of relay controlLimit value display optically by means of LEDs
Technical dataMeasuring ranges: 0 - 10 / 100 / 1000 μS/cm, depending on instrument typeLimit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected) Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC Power consumption: approx. 1 W Protection class: IP 65 Housing: polycarbonate housing, 82 x 60 x 57 mm Connections: side connection for plug-in power supply and one relay output (if selected) Measuring cell: ¾", PP, PN 6, Tmax. 60°C
measuring range:
0-1000 μS/cm
|
potential-free relay contact:
with
Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation. The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.Application examplessoftener cartridgescomplete desalinationreverse osmosisAdded valueOperation at 9 V DC via supplied plug-in power supply1 potential-free relay with switchable mode of operation of relay controlLimit value display optically by means of LEDs
Technical dataMeasuring ranges: 0 - 10 / 100 / 1000 μS/cm, depending on instrument typeLimit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected) Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC Power consumption: approx. 1 W Protection class: IP 65 Housing: polycarbonate housing, 82 x 60 x 57 mm Connections: side connection for plug-in power supply and one relay output (if selected) Measuring cell: ¾", PP, PN 6, Tmax. 60°C
Instrument for measuring the electrical conductivity of aqueous solutions in conjunction with two-electrode measuring cells. Designed as wall-mounted version.Operation at 230 V AC or 24 V DC possible2 potential-free relays - changeover switch for limit value switching (hysteresis 5 % fixed)Alphanumeric display with 2 x 16 charactersTemperature measurement and temperature display from 0.0 °C to 90.0 °C when a Pt100 is connectedSwitchable temperature compensation with 2.2 % / K up to 90 °CMonitoring of the temperature sensor for sensor break and error message on the displaySwitchable mode of operation for relay controlOutput of the measured value with 0 - 10 V and 4 - 20 mA
Technical data
Measuring ranges: dependent on measuring cell and amplification
Temperature compensation: Linear 2.2 % / K, can be switched off, reference temperature 25 °CLimit value displays: Optical by means of 2 LEDs, 2 limit values adjustable over the measuring range
Limit value outputs: 1 potential-free changeover contact, max. 6 A / 250 V AC1 change-over contact to 230V AC (terminal 21)
Analog outputs: 0 - 10 V, Ra > 1 kOhm; corresponds to 0 - 20 / 200 / 2000 μS/cm
4 - 20 mA, Ra < 500 Ohm; corresponds to 0 - 20 / 200 / 2000 μS / cm
Power supply: 22 - 26 V DC, protected against reverse polarity, electrically isolated,
1000 V insulation voltage, or 230 V 50/60 Hz
Power consumption: Approx. 3 W / 3 VA
Protection class: IP 65
Housing: Surface-mounted housing (polycarbonate) 120 x 122 x 57 mm
Connections: 4 x M16 cable entries on the bottom of the housing.
LED Configuration:
Standard (see text)
|
measuring range:
0-2000 μS/cm
|
screw-in cel:
3/4"
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):<1500 µS/cm = green>1500 µS/cm to <1900µS/cm = green/red flashing >1900 µS/cm = red
Technical data:Measuring range: 0 - 2000 μS/cmTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/-10% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-2000 μS/cmPower supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: 3/4"Housing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.Our measuring device is also particularly suitable for mixed bed cartridge monitoring in the clinical environment.
Standard LED configuration (1 green LED, 1 red LED):<0.5 µS/cm = green>0.5 µS/cm to <1.0 µS/cm = green/red flashing >1 µS/cm = red
Technical data:Measuring range: 0 - 2 μS/cm / according to customer requirementsTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/- 5% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-2 μS/cmConnection cable: 5 metrePower supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: 3/4" / according to customer requirementsHousing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
LED Configuration:
Standard (see text)
|
measuring range:
0-50 μS/cm
|
screw-in cel:
Your desired thread
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):<20 µS/cm = green>20 µS/cm to <40µS/cm = green/red flashing >40 µS/cm = red
Technical data:Measuring range: 0 - 50 μS/cmTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/-10% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-50 μS/cmPower supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: according to your requirementsHousing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
LED Configuration:
Standard (see text)
|
measuring range:
Your desired measuring range
|
screw-in cel:
3/4"
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label. Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms. Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):<20 µS/cm = green>20 µS/cm to <40µS/cm = green/red flashing >40 µS/cm = red
Technical data:Measuring range: according your requirementsTemperature compensation: Linear 2.2 % / K, reference temperature 25°CAccuracy conductivity: +/-10% of the maximum full scale valueAccuracy temperature: +-1.0 °CLimit value display: Optical via LEDAnalog output: 4-20 mA = 0-... μS/cm (according your needed measuring range)Power supply: 24 VDC +-10%Power consumption: < 2.5WScrew-in thread: 3/4"Housing: POM (polyoxymethylene)Vision panel: PMMA (acrylic glass)Electrodes: stainless steel 1.457Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)Gaskets electrodes: EPDM, 28 x 3 mmGasket housing: EPDM, 50 x 2 mmApplication limits: P max: 6 bar; T max: 50 °CProtection class: IP 65*
measuring range:
0-5 μS/cm
|
potential-free relay contact:
with
Conductivity measuring instrument for measuring the electrical conductivity of aqueous solutions in the lower range by the integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation. Application examplesComplete desalination Reverse osmosis (2-stage)Mixed bed cartridges EDI (Electrodeionisation)Added value Operation at 9 V DC via supplied plug-in power supply unit 1 potential-free relay with switchable mode of operation of relay control Limit value display optically by means of LEDs Technical data Measuring range: 0 - 5 μS/cm Measuring accuracy: 2.5% of measuring range end value Resolution: 2 decimal places Limit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range Limit value 1 preset to 1 μS/cm (relay contact) Limit value 2 preset to 0.5 μS/cm 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC Power consumption: approx. 1 W Protection class: IP 65 Housing: polycarbonate housing, 82 x 60 x 57 mm Connections: lateral connection for plug-in power supply and 1x relay output Measuring cell: ¾", PP, PN 6, Tmax. 60°C
measuring range:
0-10 μS/cm
|
potential-free relay contact:
with
Device for the measurement of the electrical conductivity of aqueous solutions using a two-electrode conductivity cell without temperature compensation. Designed as measuring device with external measuring cell, with or without potential-free relay output available.- Applications: Demineralisation, reverse osmosis, desalination, cooling water recirc., phase separation- Operation at 9V DC via included wall transformer power supply.- Versions with relay output: 1 potential-free relay with reversible mode of action for the relay output- Optical limit indication via LEDs Technical Data- Measuring ranges: 0 - 10 / 100 / 1000 uS/cm, depending on type of device- Indication of limit values: Optical via LEDs, 2 limit values can be set within 0 and 100 % of the measuring range- Versions with relay output: 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA- Versions with external measuring cell: For this reason measuring device includes wall brac
Head transmitter:
4-20 mA
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-1.000 μS/cm
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:
preconfigured for NeoTecMaster®
modular design
industry standard
resource friendly
Head transmitter:
Modbus 12-24 VDC
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-500 μS/cm
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:Preconfigured for NeoTecMaster®
Modular design
Industry standard
conserves resources
